1" LF1170M2-UT Lead Free Mixing Valve (Copper Press)

Brand:
Watts
SKU:
6550790
Rating:
(12)
Q&A:
(4)
1" LF1170M2-UT Lead Free Mixing Valve (Copper Press)
Hover image to zoom

1" LF1170M2-UT Lead Free Mixing Valve (Copper Press)

Brand:
Watts
SKU:
6550790
Rating:
(12)
Q&A:
(4)
$386.46 each
Out of Stock
Out of Stock
Get it Wed, Feb 15 - Wed, Feb 22
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
Connection Type icon
Press x Press Connection
Size icon
1"
Max Temp (F) icon
160°F Max Temp
Min Temp (F) icon
90°F Min Temp
Temperature Range (F) icon
90°F - 160°F
Standards Met icon
ASSE 1017 Standards Met
Description

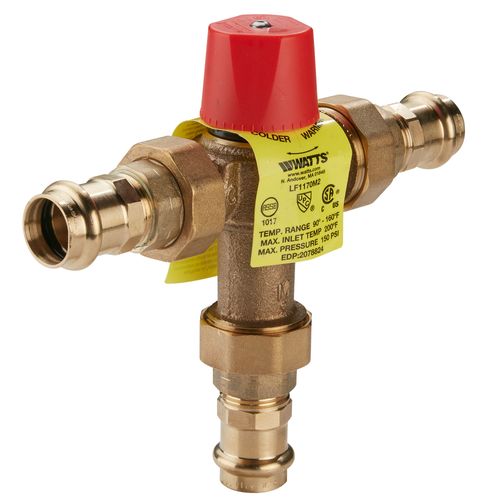

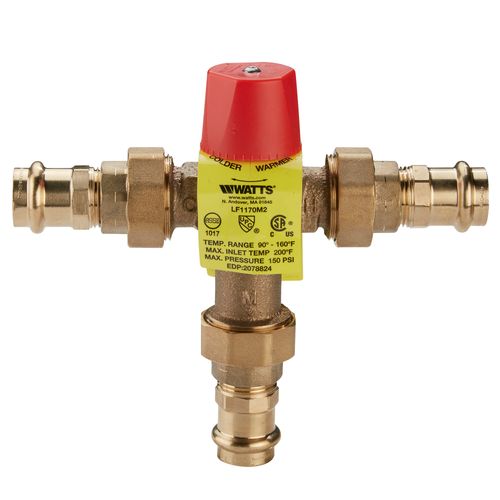

Note: This image does not represent actual product. This model comes with copper press connections.

Watts LF1170 Lead Free Hot Water Temperature Control Valves are specifically designed for mixing hot and cold water on hot water supply systems. They can be used for a variety of applications to reduce the temperature of the hot water from the system, and are ideal for radiant heat applications. This series features a "double throttling" design which combines the control of the hot and cold water to provide a sensitive response to changes in water temperature passing through the mixing chamber. The Watts 1170-M2 can be set to any temperature between 90+F and 160+F (60+F and 120+F for model L1170-M2) with flow rates as low as 0.5 gpm and as high as 23 gpm. The superior flow characteristics of this valve provide accurate temperature control to the requirements of ASSE 1017 across the rated flow range. These valves also provide additional safety as they restrict mixed water out to a drip upon loss of cold water supply to the valve. As an added feature, the 1170-M2, L1170-M2 series incorporates integral check valves and filter washers in both the hot and cold water inlets to protect against cross flow. Maximum Pressure: 150psi (10 bar).
Specs
Application:

Point of Source

Point of Source

Heating

Size:

1"

Standards Met:

ASSE 1017

Lead Free:

Yes

Min Temp (F):

90°F

Connection Type:

Press x Press

Connection Method:

Press

Max Temp (F):

160°F

Material:

Bronze

Max Pressure (PSI):

150

Temperature Range (F):

90°F - 160°F
