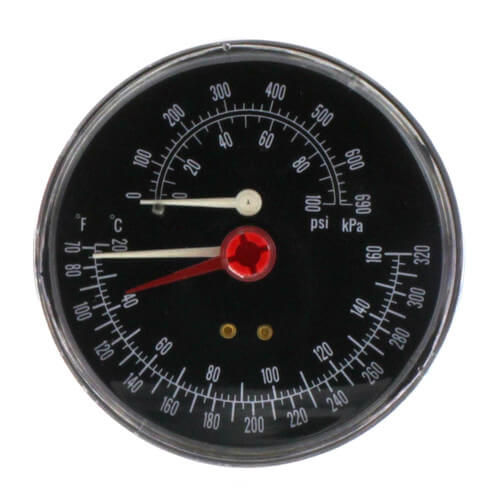

Combination Pressure-Temperature Gauge Kit, 380-000-000
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Kit-S Ga-PT-SS 3.12 Diax 1/4" NPT
- Temp Range: 60º - 360ºF
- Pressure Range: 0 - 75 psi
- 3-1/8" Dia, 1/4" NPT
- Short shank, with 1/4" x 1/2" reducing bushing
Specs
| Used With: | CG Boilers CGa Boilers CGi Boilers CGs Boilers CGT Boilers CGx Boilers WGO Boilers |
|---|
Questions?
You May Also Need
Product Reviews
Yes
Go with Weil McLain
Gerat job!
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
ok replacement
easy to read
Perfect
I ordered the wrong part not Pex' fault.
Replacement Combo gauge
The Right Gauge With an Asterisk
Product Q&A
4 QuestionsQ: Will this work with my Model CGA-4-P1DN model its weil mclain gold CGA..also will it tell me information on how it works and settin it???
Asked by Dale Miller 11 years ago
Add your answer
I have a Weil McClain boiler and it was and exact match to the one that came on it. The gauge has a 1/4" MPT and shows your boiler temperature and a gauge for pressure. There are no settings on it other than you can set the Red hand on it so you can tell if your boiler is overheating. I hope this helps. Bill
Q: Is this gauge liquid filled? What is the warranty?
Asked by Mike 12 years ago
Add your answer
No this gauge is not liquid filled. Sent from my iPhone
Don't know for sure if the gauge is liquid filled but it has an enclosed sensor which 90% of the time is liquid filled. Any spring would read temp outside the boiler. This gauge seems to be accurate regarding the settings on my aquastat, doesn't leak, a problem with other gauges I used. Don't know the warranty but once you install the gauge you'll have to drain the system to replace. I would buy again.
Q: Can you supply instructions for home owner to replace bad guage with this W-M 380-000-000 guage.
Asked by andrew 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou will need to drain your system (to prevent leakage during installation), unscrew and remove the old gauge, put the new one on, and then refill and bleed the system. The manufacturer would recommend that you have a licensed technician make the change.
Q: Why does the temperature gauge have 2 needles? What do they represent?
Asked by Charles 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe white needle represents temperature, while the red needle can be controlled by the user to point anywhere on the gauge (temperature of pressure). It does not signify any measurement, but can be placed at a desired set point for easy monitoring.
