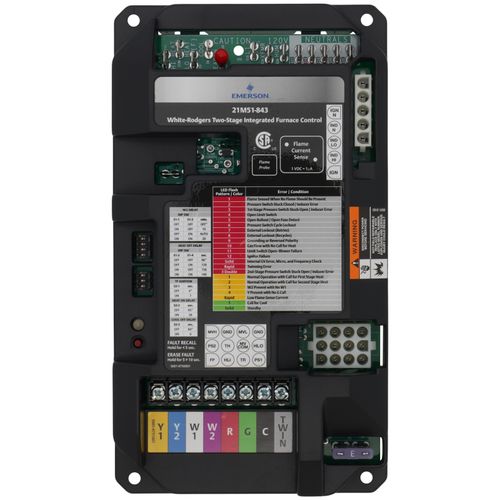

Universal Two-Stage HSI Integrated 3-Speed (PSC) Furnace Control Kit
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$262.89 each
In Stock
Get 14 Thu, Jul 2
Order by today, receive Thursday
MANUALS (5)
This item replaces: R43207-001, 50M61-843
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Hot Surface Pilot
2
8" Height
1-1/4" Depth
Description
–
This easy to install kit includes everything you need for quick and accurate replacement of White Rodgers 50M51-242 and all 50M61-XXX controls. Simplifies stocking, installation and ensures peak system performance.

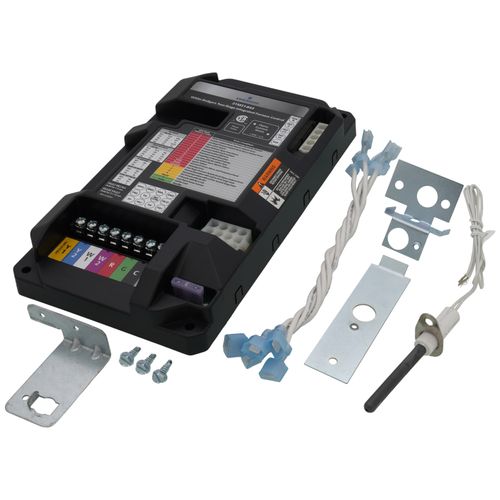

Kit Includes:
Kit Includes:
- Ignition Control Module
- Universal 120V Nitride Ignitor Kit - 21D64-2
- Installation Instructions and OEM Cross-Reference
- 120 VAC Ignitor Output
- 120 VAC Two-Speed Inducer Output
- 120 VAC Humidifier Output
- 120 VAC Electronic Air Cleaner Output
- 120 VAC 3-Speed PSC (Permanent Split Capacitor) Circulator Output
- 2-Stage Gas Valve Output
- Fuse Protection - 3 Amp
- Furnace Status LED - Tri-Color (Green, Red and Amber)
- Heat Fan OFF Delay (Dipswitch Selectable)
- Fan ON Delay for Cooling
- Auto Second Stage Delay (Dipswitch Selectable Mode)
- Historical Fault Retrieval by Pushbutton
- YLO, Y, W1, W2, R, G, C, TWIN Terminals
- Pressure Switch Inputs and Monitoring
- Flash Microprocessor with Non-Volatile Memory
- Flame Current Measurement Points
Specs
–
| Ignition Type: | Intermittent Hot Surface Pilot |
|---|---|
| Stages: | 2 |
| Operating Temp Range: | -40° to 175°F |
| Humidity Range: | 5% to 93% Relative Humidity (Non-Condensing) |
| Width: | 5-1/4" |
| Height (Inches): | 8" |
| Depth (Inches): | 1-1/4" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
CURRENT ITEM
You May Also Need
Product Reviews
5 out of 10 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 10 reviews
Use this for KIT17858 !!!
I had supply problems with Trane two stage furnace KIT17858. THIS IS THE ONE TO USE IN ITS PLACE. The Trane branded OEM kit came in wrong for me twice... This White Rodgers universal control sure seems to fit and operate exactly like the OEM one anyway. White Rodgers is the manufacturer of both the universal and the OEM. This solution worked like a charm for me on a Trane 80+ two stage unit. All functions identical, and all settings available as manufacturer intended with three speed fan motor. Carry on!!
Lefty[AGHL]
Cleveland
2 months ago
Verified Buyer
Was this review helpful to you?
Satisfied
Great Service
none
Walnut Creek
1 years ago
Verified Buyer
Was this review helpful to you?
Outstanding Service
Needed a new circuit board asap and Supply House came through. Will definitely look to them next time.
Greg
Northern Illinois
1 years ago
Verified Buyer
Was this review helpful to you?
i would buy again
easy to install works great
super
new york
2 years ago
Verified Buyer
Was this review helpful to you?
i am sure happy that Supply House.com sent me my FCM
It takes the place of an old White Rodgers FCM (Furnace Control Module). I used a 3m Filtrete filter, and knew i had to change it soon, and it slipped my mind, and WHAMO! ice, so i hooked up a relay, just to get it going for the time it took to get a new board, and i could not find an OEM White Rodgers that was from a reputable dealer, so i had to buy the EMERSON Electric. Life goes on. Thankfully i have the old FCM, and i will fix it and when this one goes bad i will have a backup. Considering how things are going with China, i think buying extra stuff now is a very smart thing if you can. I can't or i would buy an extra new FCM. I sure appreciate the everything that come with the FCM, especially the operation strategy chart, that is the most valuable thing i got, i can make everything work, i just didnt know the best way to do it. The whole package is just wonderful. THANK YOU
Nothing stops a TRANE XL80
Huron SD
4 years ago
Verified Buyer
Was this review helpful to you?
ordered it and I got it
furnace works good Thank You very much
Nothing Can stop a Trane
Beadle SD
4 years ago
Verified Buyer
Was this review helpful to you?
Great product
Easy to install, have reliable heat again. Thank you
Burf
Seattle, WA
9 years ago
Verified Buyer
Was this review helpful to you?
works
Replaced the old board in my Lennox G61MP, working just fine.
DIY furnace repair
Royal Oak, MI
11 years ago
Verified Buyer
Was this review helpful to you?
Right on the money!"
It works fine.all molex plugs were identical. Perfect replacement.
Nicson
laurel.MD
11 years ago
Verified Buyer
Was this review helpful to you?
Great Replacement Controller
Used this controller to replace a White-Rodgers 50A51-215 with a burned out inducer fan relay. Controller works great and has far better diagnostic tools then the older boards. Wiring was very simple, direct plug-in for my previous model.
My only issues are that there is no wiring diagram for the 5 & 12 pin harness connections to the board and there is no plastic enclosure. Had to verify wiring of the harness plugs were the same by comparing photos from modules on cross-reference list.
Shipping was quick, which is helpful when you have to manually control your furnace burner on a sub-zero week.
Joe
Upstate, NY
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: will this control work in a Lennox elite m/n G61-48C-090-06 s/n 5905L03652
Asked by McGiver 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes it will.
