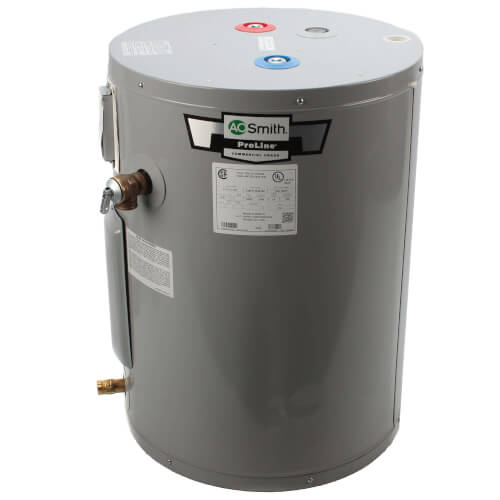

20 Gallon EJCS-20 ProLine Residential Electric Water Heater - Compact (1PH, 2.5kW, 240V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$636.25 each
In Stock
Get 19 Mon, Jun 15
Order by today, receive Monday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Electric
6 Year Tank/6 Year Parts Limited Warranty
19 Gallons
24.75" Height
No
18" Diameter
Description
–
The ProLine Compact electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 19-gallon (nominal) tank and 1 element delivering 2500 watts, the EJCS-20 is designed to fit into tight spaces.
Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings.
This ProLine water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard anode rod and Blue Diamond glass lining, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty.
A. O. Smith's ProLine water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Features:Delivers 11-gallons per hour recovery rate Single 2,500-watt commercial-grade heating element delivers reliable and efficient hot water Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces Patented Blue Diamond glass tank lining protects against corrosion DynaClean automatic cleaning system protects against sediment build-up Stainless steel CoreGard anode rod protects against corrosion longer than ordinary anodes Commercial-grade brass drain valve for durable and easy operation CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed HUD compliant, approved for mobile homes and manufactured housing 6-year limited tank and parts warranty
Features:
Specs
–
| Intended Household: | 1 Person |
|---|---|
| Application: | Plumbing |
| Capacity (Gallons): | 19 |
| Fuel Type: | Electric |
| Kilowatts (KW): | 2.5 |
| Voltage: | 240v |
| Number of Elements: | 1 |
| Phase: | 1 |
| Max Input (KW): | 6 |
| Max Pressure (PSI): | 150 |
| ASME: | Yes |
| Recovery 90°F Rise: | 11 GPH |
| R-Value: | 8 |
| Energy Star Rated: | No |
| Depth (Inches): | 18" |
| Diameter (Inches): | 18" |
| Height (Inches): | 24.75" |
| Weight (lbs): | 68 lbs |
| Warranty: | 6 Year Tank/6 Year Parts Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
2 Replacement Parts
Recess Box for New Construction
SKU: 100266730
AO SmithRecess Box for Retrofit
SKU: 100266729
AO Smith
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.33 out of 9 reviews
88% would recommend this product
5 star
67%
4 star
22%
3 star
0%
2 star
0%
1 star
11%
Showing 1-9 of 9 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
arrived faster than expected
the water heater is great so far. it is being installed as i am writing this.
That Order Guy
Billings, MT
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this water heater again when needed
:)
InterCounty
Lombard
3 years ago
Verified Buyer
Was this review helpful to you?
Excellent
Fast shipping, but unfortunately today everything comes damaged (UPS). Thankfully, Supply House compensated me within days for the damaged parts I had to replace so that the water heater could be installed the next day. Great Customer Service that is rare today!
KELLY
Fort Lauderdale
3 years ago
Verified Buyer
Was this review helpful to you?
Faulty Parts, Mostly Useless Warranty
I bought this water heater, and immediately had issues with the water temperature being scalding hot despite the thermostat being set to the lowest level. I called about the warranty, and was given a plumber to call but they said if I can't get that plumber, then I need to call a local plumber and they will reimburse me. The recommended plumber doesn't operate in my state, so I called a local plumber. Long story short, they had to replace several parts and it ended up costing $400. The warranty only reimbursed $100 of this. When I called back to question this, the operator told me "I wish you would have talked to me first. I would have walked you through troubleshooting steps and showed you how to get reimbursed for parts to do it yourself. I'm not sure why the first person you talked to didn't do that." Thought I appreciate the sentiment of the 2nd operator, I am still out $300. I will not be buying from this brand again, and do not recommend it to anyone else.
Chris
Decatur, AL
3 years ago
Was this review helpful to you?
19 Gallon ProLine Compact 240v
I needed a low profile electric water heater for a small space. This product has worked out great so far. The tank side cold and hot water inlets/outlets add the flexibility I needed considering the small, awkward installation space.
Bend
Bend OR
3 years ago
Verified Buyer
Was this review helpful to you?
I works but this product again
Great product. I already have an AO Smith water heater giving good service, so naturally I went with AO Smith again
Tomahawk
Roanoke, AL
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy this heater again.
Installed the water heater as a temporary replacement for a much larger unit. The installation was easy, both with the plumbing and the electrical. Looks good. My only comment is that this unit was the third unit shipped to me. The first two units were shipped damaged.
Inca King
Cimarron
6 years ago
Verified Buyer
Was this review helpful to you?
Great customer service and product was exactly what I wanted
Product worked as I hoped and couldn't be happier with it. Customer service went the extra mile to fulfill my specifications and replace the first unit which was damaged during shipping. I'm committed to AO Smith and Supplyhouse.
Tabutt
Pennsylvania
7 years ago
Verified Buyer
Was this review helpful to you?
Right item first time! Installed and working fine!
Installed and working fine!
Sharon
Chilhowie, VA
8 years ago
Verified Buyer
Was this review helpful to you?
