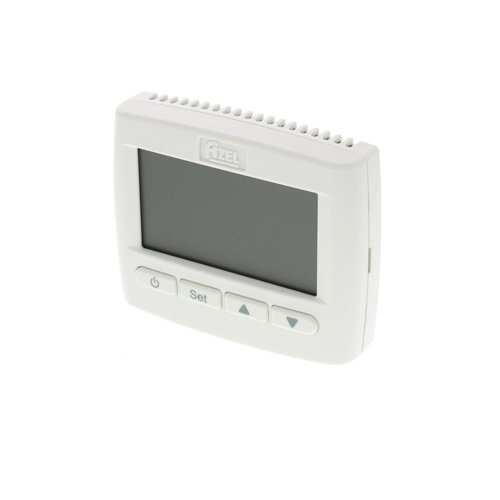

Digital Non-Programmable Heat Only Thermostat for Radiant Floor Heating
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$79.95 each
In Stock
Get 30 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Non-Programmable
24V
Horizontal
Extended 3 Year Warranty
Description
–
D-508F digital non-programmable heat only thermostat is designed to control either ambient(air) temperature (A Mode) or floor
temperature (F Mode) or a combination of ambient temperature with floor temperature limits(AF Mode). An auxiliary remote sensor is provided to measure slab temperature in order to control the floor temperature(within maximum and minimum limits in AF Mode). It can also be used for sensing the outdoor temperature in A Mode.
Features:
Features:

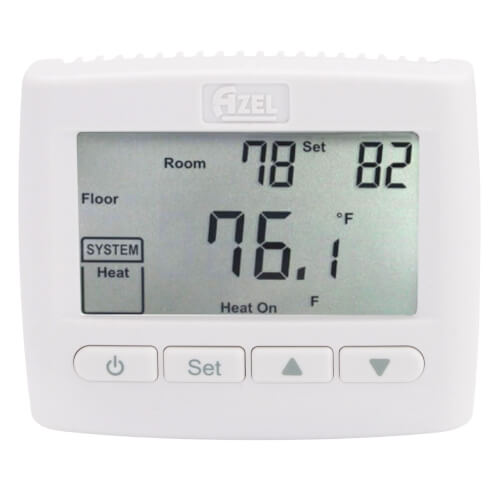

- Easy-to-Read Digital Multi-Display with backlit which provides constant readout of two sensor temperatures(eg. ambient and floor) and setpoint simultaneously, functional status and control settings.
- Three temperature control modes:
- A Mode: controls ambient temperature
- F Mode: controls floor temperature. Also displays current ambient temperature.
- AF Mode: controls the ambient temperature and maintains the floor temperature within the desired minimum limit for floor warming and maximum limit for protecting floor coverings. Also, displays current floor temperature.
- A Mode: controls ambient temperature
- QuickSet feature allows instant setpoint adjustment without entering the SETTING mode
- Contemporary design
- Easy installation and setup
- Selectable display in °F or °C
- On/Off switch to shut off relay output or shutdown the thermostat at end of heating season for added security
- EEPROM memory retains control settings in the event of a power failure
- Lockout mode to prevent tempering by unauthorized personnel
- Sensor failure and out of range indications
- One stage heating application
- Backlit option: Auto (60 sec.)/OFF/ON
- Supplied with P-01 floor sensor
- Battery free
- RoHS (Restriction of Hazardous Substances) compliant means this thermostat is eco-friendly
Specs
–
| Product Type: | Thermostat |
|---|---|
| Application: | Heat Only |
| Warranty: | Extended 3 Year |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Power Supply: | 24 VAC |
| Options: | On/Off Switch |
| Voltage: | 24V |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Programmability
User Interface
Mount
Voltage
CURRENT ITEM
Heat Only
Non-Programmable
Push Button
Horizontal
24V
You May Also Need
Product Reviews
4.17 out of 12 reviews
75% would recommend this product
5 star
58%
4 star
17%
3 star
17%
2 star
0%
1 star
8%

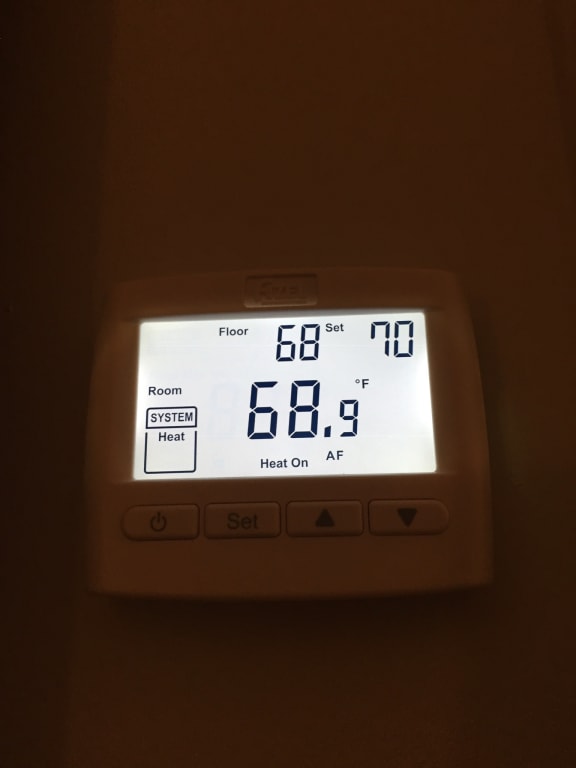

Customer Images
Most Liked Positive Review
Nice looking. Does a nice job.
I purchased 2 of these thermostats for 2 separate in-floor heating systems. The first one is now up and running. These thermostats are being used in service bay areas with service doors that open to the outside. It was important to have a thermostat that monitored and controlled the floor temperature since the air temperature fluctuates drastically when the service doors are opened. The thermostat is a nice looking and well built unit that is made in Canada. It is very easy to set up and configure. It has a nice looking display that is powered by the 24vac off the heating system. It uses an EPROM so it won't loose settings. There are no batteries to worry about going bad or needing to be changed. The only annoying thing I noticed was if you change the temperature setting while the thermostat is calling for heat, the thermostat must momentarilly release the call for heat causing the heating system to momentarilly shut off, reset, and start back up. This really is of no concern though since this is not a normal operation. Once the temperature is set and you leave it, the thermostat operates as it should. I plan on buying and putting more of these thermostats in.
VS
Most Liked Negative Review
Functions fine but.....
This is not a Supply House complaint. But the unit itself does not quite measure up to my expectations. It functions fine, but I broke a cover flimsy tab the first time after making the connections. Then when you enter the press mode, the screen charactors are quite faint and you have to stoop down to read them.
Showing 1-10 of 12 reviews
This model has major quality issues - JUNK
We purchased 4 of the D-508F. Two went bad within a year, so we had to purchased two more. The two new Tstat did not work, nor their replacements Returned all four and purchase a different model#. Supply House was great to work with
bambam
KY
2 years ago
Verified Buyer
Was this review helpful to you?
Perfect all option solution
Using the unit on radiant heated slab in my shop. Because there is a big difference between the floor temperature and the air I was spending way too much to heat the area. Being able to adjust the floor temp to a constant with the sensor I have lowered my bills and have a fairly consistent air temp. Not using the outdoor sensor option, but it's there if I need it in the future.
KyMadMan
Melbourne, KY
2 years ago
Verified Buyer
Was this review helpful to you?
good product
easy installation works as advertised
wayne
easton pa
4 years ago
Verified Buyer
Was this review helpful to you?
Works like intended
Radiant heat with solar is the absolute best way to heat.
DomD
Harrisburg
5 years ago
Verified Buyer
Was this review helpful to you?
yes
once again they have stock when others dont !!!
NPH SUPPLY
PITTSBURGH,PA
5 years ago
Verified Buyer
Was this review helpful to you?
would buy again
Will be used in floor heat in garage to soon be built
Fireball
MO
6 years ago
Verified Buyer
Was this review helpful to you?
Functions fine but.....
This is not a Supply House complaint. But the unit itself does not quite measure up to my expectations. It functions fine, but I broke a cover flimsy tab the first time after making the connections. Then when you enter the press mode, the screen charactors are quite faint and you have to stoop down to read them.
Bob R
South West VA
8 years ago
Verified Buyer
Was this review helpful to you?
Works well when it works
Bought 4 of these thermostats. One didn't function properly so bought a replacement and all are now working as expected. In spite of this bit of trouble I would highly recommend them for a radiant heating system. Didn't bother returning the one because I didn't want to take the trouble (too lazy).
DLG
Whitefish, MT
8 years ago
Verified Buyer
Was this review helpful to you?
Simple unit, works as promised.
Screen clarity is poor. Possible damage from shipping. Unit was not well protected in its shipping container.
Pete
HAYS ks
8 years ago
Verified Buyer
Was this review helpful to you?
Yes. Turned my contractor in to it. He is going to use it.
MADE IN CANADA!!!! Not China.
Hard worker
Hudson Vally NY
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can this thermostat be installed in an all ready existing home with radiant floor heat?
Asked by Jerry 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it could. Retrofitting a floor sensor may be tricky, however.
Was this review helpful to you?
Q: Hi, I was told by my plumber to order a thermostat with 2 wires for my bedrooms and one with 4 wires for our bathrooms. We're in the process of having our radiant floor heating installed. This thermostat doesn't say anything about how many wires are included. Would you happen to know if I can use this one for both the 2 wire and 4 wire rooms? Thank you for your help.
Asked by Robert 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe wiring guide can be found in the user guide here: http://s3.supplyhouse.com/product_files/Azel%20-%20D-508F%20-%20User%20Guide.pdf
Was this review helpful to you?
