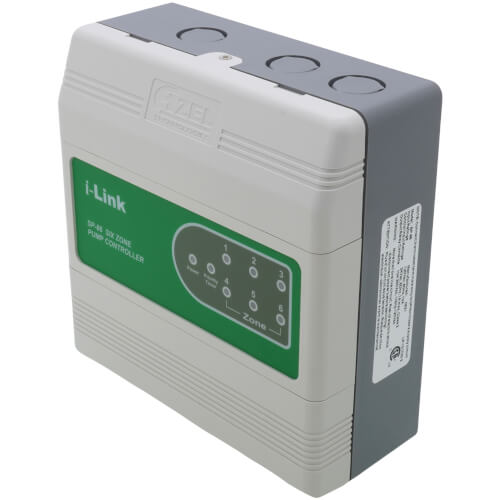

6 Zone Pump Controller Switching Relay with Priority Protection
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$198.95 each
In Stock
Get 16 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6
Extended 3 Year Warranty
Description
–
The i-Link series multi-zone circulator pump switching relays simplify wiring for hydronic heating ( radiant floor heating ) systems. With leading edge features and superior product design, i-Link makes installation quick and easy.
Available in one to six zone models. The i-Link series are designed with flexibility and multi-zone applications in mind. It is so flexible that different models can be interconnected for unlimited zone expansion. In addition, i-Link provides far more functional status than other models on the market today because of their front panel LED indicators that provide the easy system diagnostics demanded by today's installers. Each unit is designed with a unique power surge protection to ensure continuous control operation and avoid damage and trouble to replace the unit.
Priority Protection timer available in two to six zone models prevents freeze-ups in the event of a priority zone failure. SP-84, SP-85, SP-86 are equipped with field selectable priority by-pass function to ensure continuous operation of secondary zones which allow maximum flexibility for system applications.
From design to manufacture, each i-Link unit is built on the foundations of quality and reliability. Azel products are quality controlled in order to achieve total customer satisfaction - a foundation that you can rely on.
Features:
Available in one to six zone models. The i-Link series are designed with flexibility and multi-zone applications in mind. It is so flexible that different models can be interconnected for unlimited zone expansion. In addition, i-Link provides far more functional status than other models on the market today because of their front panel LED indicators that provide the easy system diagnostics demanded by today's installers. Each unit is designed with a unique power surge protection to ensure continuous control operation and avoid damage and trouble to replace the unit.
Priority Protection timer available in two to six zone models prevents freeze-ups in the event of a priority zone failure. SP-84, SP-85, SP-86 are equipped with field selectable priority by-pass function to ensure continuous operation of secondary zones which allow maximum flexibility for system applications.
From design to manufacture, each i-Link unit is built on the foundations of quality and reliability. Azel products are quality controlled in order to achieve total customer satisfaction - a foundation that you can rely on.
Features:
- Front panel indicator lights
- Fuse protection
- Power surge protection
- Easy-Connect Terminals/Screwless Terminals for Thermostat Connections
- Compact and modern design
- Safety design with all electronic components hiding behind the enclosure
- Simplified wiring
- Universal Design: Cold Start or Tankless Coil Boiler
- Contractor friendly PCB layout
- High Capacity Field Replaceable Transformer
- 24VAC transformer output with common terminal provides compatibility with electronic thermostat
- Universal thermostat compatibility
- 100% Factory Tested
- Extended 3 year warranty
- Unlimited zone expansion
- Priority timer for protection of a priority zone malfunction and prevention of freeze-ups in the heating zones
- Field selectable priority
- Capable of turning on an extra system circulator
- SP-84/85/86: Manual priority override (bypass) for each of the secondary zone
- Isolated End Switch and Priority End Switch for utilizing full functionality of high efficiency Mod-Con boilers
Specs
–
| Product Type: | Relay |
|---|---|
| Type: | Switching |
| Number of Zones: | 6 |
| Warranty: | Extended 3 Year |
| Features: | Surge Protection Fuse Protection |
| Power Supply: | 120 VAC |
| Hertz: | 50/60 |
| Enclosure Type: | Flame Retardant Plastic |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Zones
CURRENT ITEM
6
You May Also Need
Product Reviews
4 out of 4 reviews
75% would recommend this product
5 star
75%
4 star
0%
3 star
0%
2 star
0%
1 star
25%
Showing 1-4 of 4 reviews

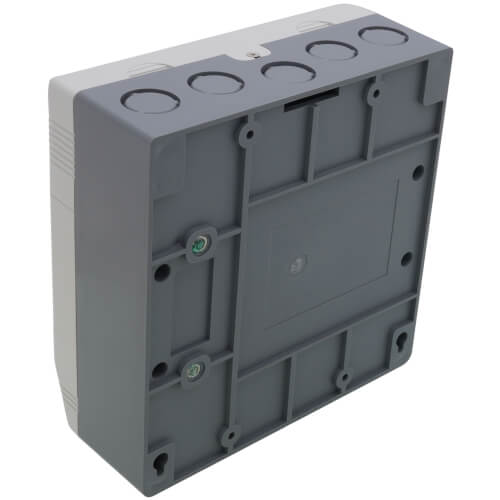

Only knockouts for 4 zones
I don't know what these guys were thinking when they made this thing; there are only enough knockouts for 4 zones. I would never have bought it if I had known this; what a piece of junk.
Bruce
Napa , CA
7 months ago
Was this review helpful to you?
Definitely a good value
Does a perfect job of regulating my in floor heating. I bought it to replace. A 12-year-old unit.
Bri
Hesperus Colorado
2 years ago
Verified Buyer
Was this review helpful to you?
Great my favorite zone pump controller
I have install 4 of these. Easy install. The surge protection works great. After loosing 3 taco units to voltage spikes I switched. No problem since.
Brian
Suffern
3 years ago
Verified Buyer
Was this review helpful to you?
Excellent Controller for Radiant Heating
I am using the SP-86 to control 5 different radiant zones in my house, plus using the sixth zone for controlling domestic hot water recirculation. Very reliable interface between thermostats and pumps.
Hahnsolo
USA
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can you use this to control (6) 1/25hp circulator pumps (that are connected to a hot water storage tank) for radiant floor loops? Does this supply power for the thermostats?
Asked by John 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis can certainly be used with such pumps. The controller can power the thermostats but it may run out of amperage depending on the type of thermostats.
