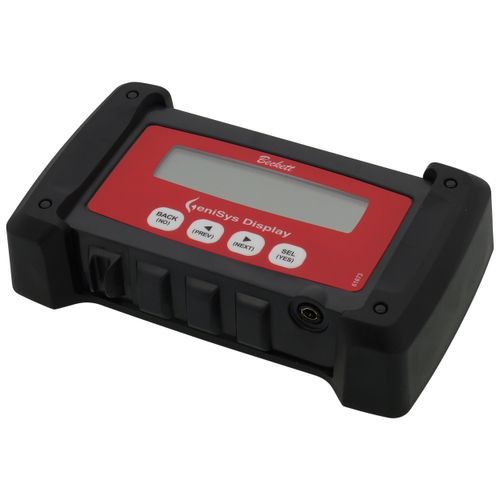

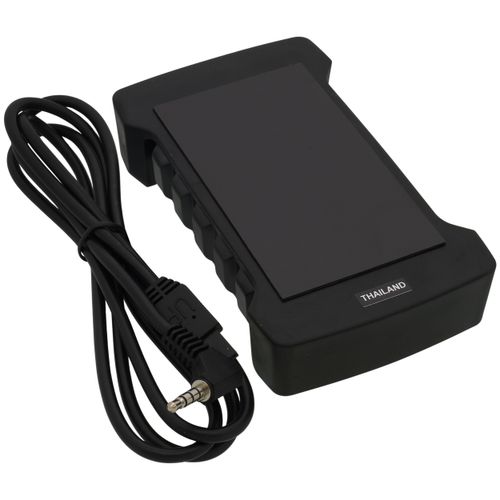

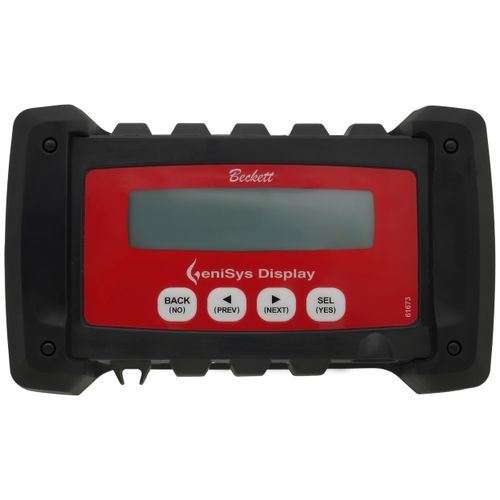

Beckett GeniSys Contractor Tool

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

The Contractor Tool is designed as a portable diagnostic tool to help technicians program and troubleshoot Beckett oil primary controls. The screen shows current burner status, control timings, and burner cycle history. The programming mode allows a technician to customize both the pre-time and post-time settings.

Features & Benefits

• Water resistant
• 32 character backlit alphanumeric display
• Sealed push-button keypad
• Low voltage operation
• Continuous real-time cycle monitoring
• Continuous cad cell resistance reading
• Continuous AC line voltage read-out
• Real-time error notification
• Customizable pre-time (valve-on delay) & post-time (motor off delay)
• 15 cycle history monitoring
• 5-year warranty
• Customizable lockout service message

Specifications

• Voltage: 5 VDC
• Current: 25 mA maximum display current
• Storage Ambient Temperature: -22°F to +150°F (-30°C to +65°C)
• Operating Ambient Temperature: 0°F to +150°F (-18°C to +65°C)
• Moisture: 5-85% RH, non-condensing and non-crystallizing
