7505B GeniSys Cad Cell Oil Primary Control w/ 15 sec Pre-Purge (Replaces R7184B Relay Controls)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$112.00 each
In Stock
Get 102 Fri, Jun 19
Order by today, receive Friday
MANUALS (3)
This item replaces: 7456U
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
Description
–

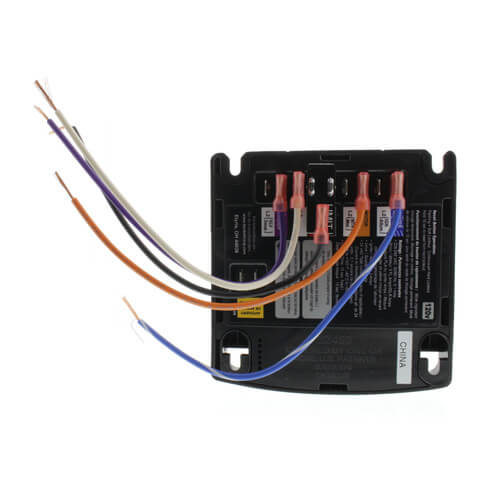

Product Update: This item has recently been updated by the manufacturer, and newer versions no longer include wire flag terminals, wire nuts, or a limit jumper. Based on our current inventory, you may receive either the previous or updated version during this transition.
The 7505B can be programed with pre-purge and post-purge and cycle history read using the GeniSys Contractor tool.
The Beckett GeniSys™ Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.
Water Resistant
Thermostat and boiler control compatible

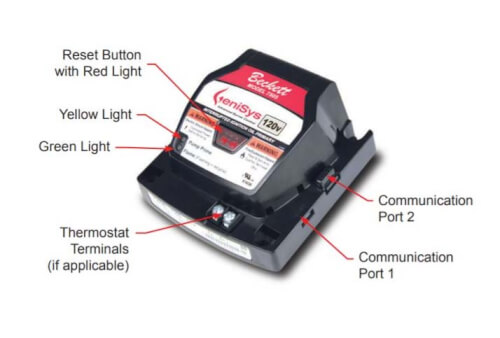

Three status lights for system monitoring and diagnostics
Welded relay protection with redundant motor relays
Limited reset and limited recycle
Technician Pump Prime mode
5-Year Warranty
7505A0000 replaces Honeywell R8184G
Two communication ports for adding alarm contacts and programming tool.
Lockout time (TFI) – 15 seconds
Pre-purge – 15 seconds
Post-purge – 0 seconds
Customizable pre-time and post-time using Contractor Tool 52082U
Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.
The 7505B can be programed with pre-purge and post-purge and cycle history read using the GeniSys Contractor tool.
The Beckett GeniSys™ Advanced Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys™ is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition, and it has a 15 second lockout time.
Specs
–
| Lockout Timing: | 15 Seconds |
|---|---|
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Storage Temperature: | -40° to 150°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
CURRENT ITEM
You May Also Need
Product Reviews
4.89 out of 19 reviews
100% would recommend this product
5 star
89%
4 star
11%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 19 reviews
Customer service great! Shipped quickly!
Customer service was great on phone. Helped me order the correct part. Shipped in 24 hours. Would have been here in a couple of days if the weather had not held it up. Installed quickly after arriving, & we had hot water again! I have saved their website to shop with them again!
woo.crazy
California
5 months ago
Verified Buyer
Was this review helpful to you?
Quickest service ever !!
I was in a jam with no heat ! I knew what the problem was but needed the part fast . I got on the internet to SupplyHouse and with in 24 hrs. my furnace was back up and running . Thanks SH for the amazing service . PS And the best price !
Steve
Salem,NH
1 years ago
Verified Buyer
Was this review helpful to you?
Yes
Fit perfect and works great. No issues.
A
A
1 years ago
Verified Buyer
Was this review helpful to you?
Replacement needed!!?
Excellent product and easy installation.
Tank
Newark, DE.
1 years ago
Verified Buyer
Was this review helpful to you?
Worked perfectly
Best place to buy your furnace parts!
Joe b
Sunderland vt
2 years ago
Verified Buyer
Was this review helpful to you?
HAVE SPARK NOW
always dependable igniter last for years when installed properly. first choice in replacement.
DINO
ROME ITALY
2 years ago
Verified Buyer
Was this review helpful to you?
I will buy this control again
I use these all the time, I love being able to use and adjust the pre/post purge times as well as the lockout feature so the owner doesn't flood their unit by hitting reset..
I don't like having to use the separate tool to make the settings and read the cad cell
Lieutenant Dan
Ketchikan Alaska
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good cuality
I like the price
Rafi
Hazleton PA
3 years ago
Verified Buyer
Was this review helpful to you?
very good product
Used as a replacement part. It fit and worked perfect.
Dr. Heat
Catskill NY
4 years ago
Verified Buyer
Was this review helpful to you?
Fast delivery
Not the best primary out there but when needed I can get it next day for a great price from supply house!
PR
CT
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: I know this unit come with 15" valve on delay and no post-purge. Can this unit be programmed with the contractor tool and change the pre- and post-purge time to something like 7595P unit? Thank you in advance!
Asked by MinMet 7 years ago
Add your answer
Verified Reply- Supplyhouse.com TeamSupply House has no installers or technicians on staff to advise on proper installation, but if you have additional questions, you can contact Beckett directly at 1-888-232-5388.
Was this review helpful to you?
Q: What is the difference between the Beckett 7505A & 7505B
Asked by I don't have one 9 years ago
Add your answer
Verified Reply- Supplyhouse Staff7505B has a vale on delay time of 15 seconds...the 7505A does not
Was this review helpful to you?
