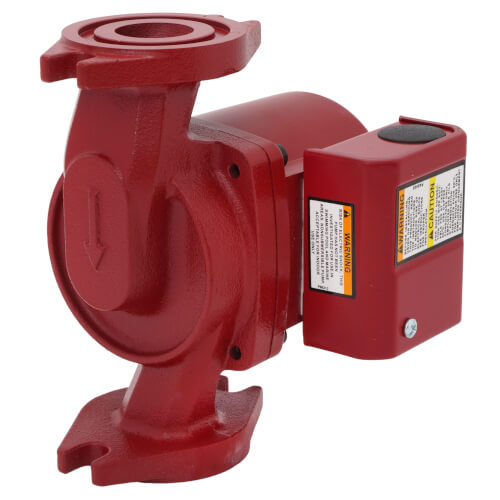

1/25 HP, NRF-22 Red Fox Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
Specifications
- Power Rating: 1/25 HP
- Pump Body Material: Cast Iron
- Electrical Rating: 115V
- Motor: 2940 RPM Full Speed
- Phase: Single
- Full Load Current: 0.8 Amp
- Thermal Protection: Impedance
- Face: 6 Inches
- Inlet/Outlet: Flanged
- Best Efficiency: 10 GPM @ 8 Feet of Head
- Feet of Head: @ 20 GPM 2
- Max. Operating Pressure: 150 PSI (10 bars)
- Max. Operating Temperature:
- Cast Iron Body: 240°F (115°C)
- Brass and Stainless Steel Body: 230°F (107°C)
Specs
| Material: | Cast Iron |
|---|---|
| Amperage: | 0.8 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 150 |
| Type: | Pump |
| Horse Power: | 1/25 |
| Connection Size: | 3/4" 1" 1-1/4" 1-1/2" |
| Flow Range (GPM): | 0-22 |
| Max Flow (GPM): | 22 |
| Head Range (ft.): | 0-15 |
| Max Head (Ft): | 15 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2940 |
| Max Temp (F): | 240°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
good product. Easy to install.
Most Liked Negative Review
Bell and Gossett circulating pump NRF-22
Warranty Red Fox circulation pump replacement
Circulation pump
Useg time
Great product
Great product, I would buy again
great product
Product is solid but the service is outstanding
Yes
Great people to deal with
I would buy this product again
Product Q&A
17 QuestionsQ: Can you replace the cartridge in a nrf 22.
Asked by Bud 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, B&G does not offer a replacement cartridge.
Q: What is the distance from flange to flange, please?
Asked by Stan 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe flange to flange distance on the NRF-22 is 6-3/8".
Q: How much old does this pump hold? We don't know when it's full, so we're trying to determine how much to put in when we add oil. Thanks!
Asked by Anonymous 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis pump is water lubricated and does not and should not be oiled.
Q: Can you buy replacement gaskets for the two flanges of a Bell & Gossett NRF-22 103251 1F01
Asked by David 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffReplacement gaskets are part 118368.
Q: We have a rental house that heats with oil. Its a Bell & Gossett and the water is not circulating through the heaters. We believe the pump has gone bad. The information on the pump is Bell & Gossett SLC-25 103201. I am googling it trying to find a replacement pump but this NRF-22 keeps popping up. Is this a compatible replacement for my pump?
Asked by Dace 13 years ago
Add your answer
I ordered two 1/25 HP, NRF-22 Red Fox Circulator Pump<http://www.pexsupply.com/Bell-Gossett-103251-1-25-HP-NRF-22-Red-Fox-Circulator-Pump-5600000-p> to replace my SLC-25 103201. The new pumps fitted exactly in place of the old ones. Unfortunately one of the new pumps only lasted two years before it went open-circuit. But again it was easy to replace.
I have replaced several and they work just fine. Important note is I have 7 separate heat systems in my house so if you are going to replace entire house pump with 1/25, especially if you have 2nd story might not circulate as quickly as needed.
Make sure the air is bleed out. The pump should work. Sent from my iPhone
Q: I just ordered this pump. Do the flanges come with it?
Asked by Jill 13 years ago
Add your answer
No just the gaskets
I think you have to order the flanges separately.
No It does not.
Q: If the pump was installed backwards (the arrow faceing the wrong way} will it have done any damage in two or three days ?
Asked by Mike 14 years ago
Add your answer
It burned up one I had but took a couple of years to do it.....so says my plumber....
I don't think it would damage anything. I did the same thing myself.
Possibly. The pump would be flowing in the opposite direction of the main pump. The main pump is a ot more powerful and this will stress the small zone pump. This will heat up the motor. If the pump has been run so hot that it does not operate anymore the pump has been damaged beyond repair. As long as the pump has been operated for a short time it may have only cost you time and some $.
Q: I have two NRF-22 pumps, motors are fine but impellers decayed, are there replacement parts (impellers) available?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffUnfortunately, the manufacturer does not offer replacement impellers for this pump.
Q: I have NRF-22 installed on a 100 gallon water heater in a 14 unit apartment Building for the last 9 years. The hot water is taking 5 to 10 minutes to reach the apartments, and the return line is not worm when no one is using hot water. Is it malfunctioning or I need a stronger pump, if so what model of B&G you recommend. Thank you
Asked by Frank 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis pump is a cast iron and should not be used on a plumbing system because it will rust.
Q: Will this pump replace a series 100 pump for residential heating? Are any adapters needed?
Asked by Den 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe pump curves are slightly different. The NRF-33 is a closer match to the Series 100. The new pump will need flanges.
