4 Loop Stainless Steel Manifold Package - 1/2" PEX-AL-PEX
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
This Product Includes:

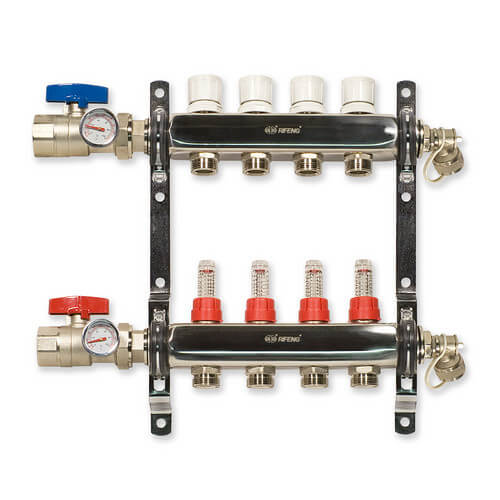

- (1) HM4: 4 Loop Stainless Steel Radiant Heat Manifold

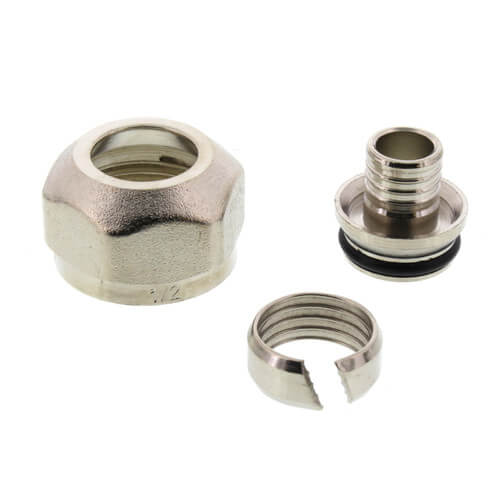

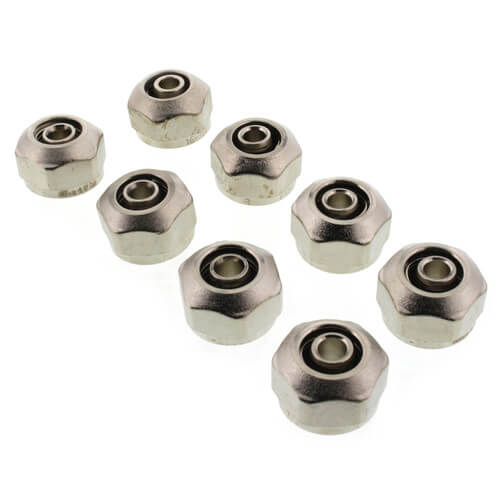

- (8) PALA050: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly

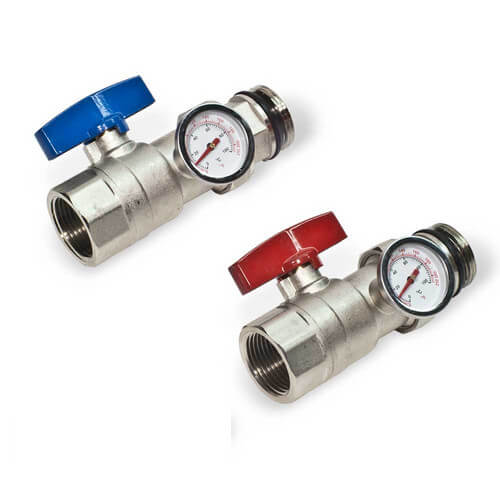

- Supply/return Shut-Off Valves w/ Temperature Wells
Specs
| Number of Outlets: | 4 |
|---|---|
| PEX Size: | 1/2" |
| Supply Size: | 1" |
| Supply Connection: | BSP |
| Loop Thread: | EK20 |
| Application: | Heating |
| Material: | Stainless Steel |
| Fitting System Compatibility: | PEX-AL-PEX Compression |
| Tubing Compatibility: | PEX-AL-PEX |
Contact
Happy Independence Day!
Compare Similar Products
You May Also Need
9 Replacement Parts
Need help finding a replacement part?
Product Reviews
A good value
Product Q&A
11 QuestionsQ: What is the size of the body of this manifold? 1 inch or 1 1/4 inches?
Asked by Scott 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe body size of the manifold, from RHM02 to RHM12 is all 1''. Rifeng does not produce a 1-1/4'' size unit.
Q: will these manifolds work with pex oxygen barrier tubing
Asked by none 13 years ago
Add your answer
Verified Reply- PexSupply StaffRifeng manifolds are compatible with 3/8", 1/2", and 5/8" PEX as long as you use the proper EK20 adapters.
Q: Will this manifold work with the 1/2" Oxygen Barrier PEX Tubing (1,000 ft Coil) SKU: 050-1000-OXYBrand: Rifeng
Asked by Pellergy Guy 13 years ago
Add your answer
Verified Reply- PexSupply StaffThe RHM04 manifold will work with that PEX as long as you use the proper loop adapter fittings (part MA-50P). Keep in mind that this part is a package that includes fittings for 1/2" PEX-Aluminum-PEX.
Q: Can this manifold be mounted in a vertical position?
Asked by Rick 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, but mounting the manifold in any direction other than uprightly will cause the flow meters not to function correctly.
Q: Will this manifold work with 3/4 Pex and which part will I need to make it work?
Asked by Wally 14 years ago
Add your answer
Verified Reply- PexSupply StaffRifeng stainless steel manifolds only work with 3/8", 1/2", and 5/8" PEX or PEX-AL-PEX tubing.
Hey , in regards to your email about a customer asking if this 6 port manifold will work with 3/4" pex, i would say no, but the real people to ask would be the manufacturer. Sincerely Paul Delaney
Q: What is the test procedure? At what PSI should the system be tested at? How long should the system be tested and how much of a pressure drop is acceptable?
Asked by Peter 14 years ago
Add your answer
Verified Reply- PexSupply StaffWe would recommend that you test the system at 60 to 75 psi of air pressure for at least 24 hours. The MP182 pressure test kit works with Rifeng manifolds. Pressure losses up to about 5 psi can be considered normal due to changing weather conditions.
I attached the air fill fitting kit to each individual manifold. Per included instructions, filled the open loops from each manifold to 100 PSI (yes, sounds like overkill but recommended). Rechecked pressure after 24 hours. A drop of about 2 PSI would be about the limit by what I've read. Most common leaks are at the manifold fittings or threads at air fitting kit. Use soapy water to check for leaks.
Q: WHAT FITTING IS REQUIRED TO CONNECT MANIFOLD TO 1" AQUAPEX AT SUPPLY AND RETURN WITH A 90 DEGREE ELBOW?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThere is no single fitting that can do this, but, if you're planning to use a crimp fitting and come out of the supply/return shut-off valves, you can use parts TBN-16CLOSE, TB7-16, and H031000.
Q: WILL THIS WORK WITH ONIX TUBEING?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, Onix tubing is not compatible with Rifeng manifolds.
Q: Can these be reversed so the supply and return would be on the right hand side?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes. You can rotate the manifold as you described by removing the mounting brackets and installing them on the opposite side of the manifold.
Q: we have 16 in and 16 out can we hook up two 8 manifolds together? im 66 years old
Asked by vie 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis is not recommended (and there is not fitting that can accomplish it). We would advise you to branch off the main supply line from the boiler to two separate 8-loop manifolds.
