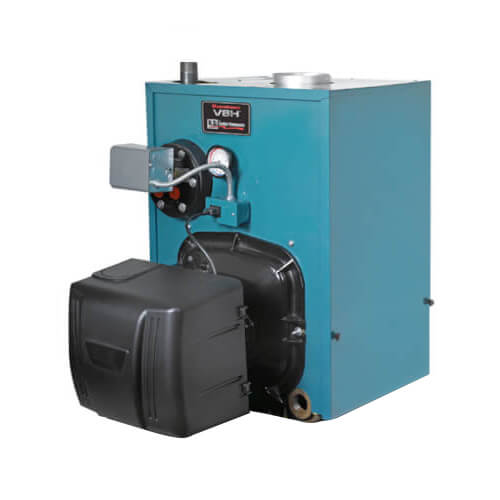

PV8H3WET, 104,000 BTU Output V8H Water Boiler w/ Tankless Coil, no Burner (Oil)

Note: Product Title reflects this boiler's Net AHRI BTU Rating

With Tankless Coil

 This item does not come with a burner. This must be purchased separately.

The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam - with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes. Beginning October 1, 2020, 03 through 07 section V8H water boilers will be upgraded to the DOE-2021 efficiency requirement of 86% AFUE.

Features:

• 86% AFUE ENERGY STAR®-certified 87% AFUE available with upgrade kit
• Cast iron sectional design
• Seven sizes available, 1.00-2.60 GPH
• Optional tankless water heater
• Multiple oil burner options for water boilers (Beckett, Carlin), includes burner cover for quiet operation
• Durable push-nipple connections between boiler sections - will not deteriorate when exposed to petroleum-based antifreeze
• Easy to clean and service - side and top cleanouts provide complete access to flueways
• Full swing-away burner door
• Lifetime limited warranty

Intelligent Oil Boiler Control

• Standard on V8H water boilers
• Combines aquastat and relay functions into a single module
• Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater
• Energy saving "thermal purge", which works by circulating residual warm water (140° or above) in the heating system before firing the boiler
• LED display for boiler status and trouble codes
• Extensively tested and proven in thousands of existing installations

Standard Equipment

• Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
• Intelligent Oil Boiler Control System (water only)
• Cast iron swing door
• Flange mounted retention oil burner
• Insulated deluxe jacket with lift-off side panel
• Boiler drain valve
• Safety relief valve
• Pressure temperature gauge
• High limit & relay
• Draft regulator
• Gauge glass set (steam only)
• Steam gauge (steam only)
• Probe-type LWCO (steam only)
• 8 and 9 section models always shipped as individually crated knock-downs
