Product Highlights
–
MNPT x MNPT Connection
1"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–

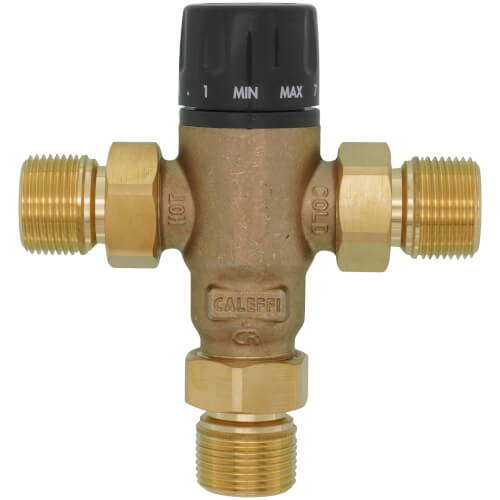

The Caleffi MixCal three-way thermostatic mixing valve is used in systems producing domestic
hot water or in hydronic and radiant heating systems. It maintains the desired output temperature
of the mixed water supplied to the user at a constant set value compensating for both temperature
and pressure fluctuations of incoming hot and cold water. The MixCal is fail cold: for any failure of
cold or hot inlets or valve function, the hot water port closes.
Description:Adjustable thermostatic and pressure balanced mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Low-lead brass body.
Internal anti-scale materials.
Locking set point knob.
Max working pressure: 200 psi
Max inlet temp: 200F
Adjustable range: 85 - 150F
Gauge scale: 30 - 210F
ASSE 1017 Listed.
Lead Plumbing Law Certified by IAPMO R&T:
0.25% max weighted average lead content
Description:
Specs
–
| Features: | Standard |
|---|---|
| Size: | 1" |
| Connection Type: | MNPT x MNPT |
| Connection Method: | Threaded |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Application: | Point of Source |
| Standards Met: | ASSE 1017 |
| Flow Capacity (Cv): | 3 |
