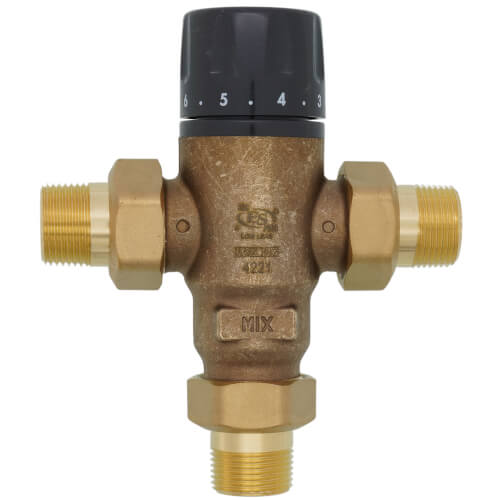

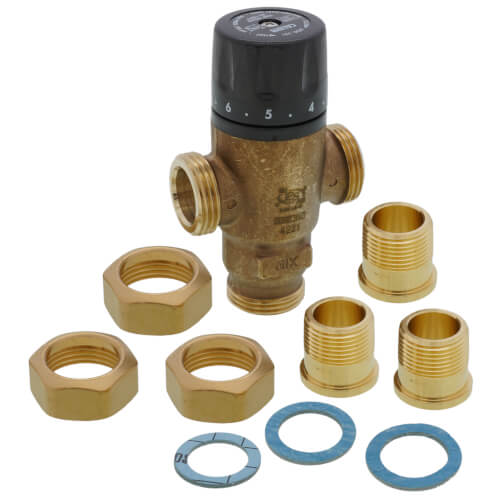

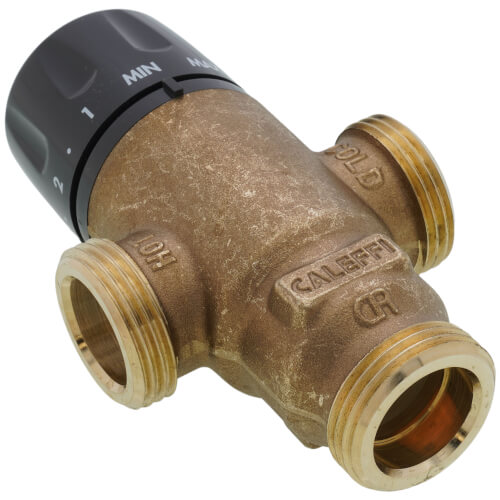

3/4" NPT MIXCAL 3-Way Thermostatic Mixing Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$193.82 each
In Stock
Get 2 Mon, Jun 29
Order by 6PM, receive Monday
Size:
3/4"
Connection Type:
MNPT x MNPT
Features:
Standard
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
Caleffi MixingCal 3-Way Thermostatic Mixing Valve, Low-Lead Brass 3/4" NPT Connections, 3 Cv
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
- Maintain Temperature
- Compensates for both temperature and pressure fluctuations
Specs
–
| Features: | Standard |
|---|---|
| Size: | 3/4" |
| Connection Type: | MNPT x MNPT |
| Connection Method: | Threaded |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Lead Free: | Yes |
| Flow Capacity (Cv): | 3 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Type
Connection Method
Standards Met
Application
CURRENT ITEM
3/4"
MNPT x MNPT
Threaded
ASSE 1017
Point of Source
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
SupplyHouse was a good choice.
Just refused a contractor's propsed total replacement of my boiler. I knew my problem could be solved with a part replacement. I was able to select the correct part because the website made it easy to see all the options of function and size - including installation. Couldn't ask for more.
Luther
Colesville Maryland
10 years ago
Verified Buyer
Was this review helpful to you?
Very nice mixing valve.
This valve looks like it is very well built. You will need a large Allen wrench to install the threaded adaptor (5/8" if I recall correctly) I bought the 3/4" MPT version
Eric
PA
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: what is the GPM flow rate?
Asked by N/A 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe valve has a 3 cV flow coefficient. What this effectively means, is that 3GPM across the valve will cause the pressure to drop 1PSI.
Was this review helpful to you?
