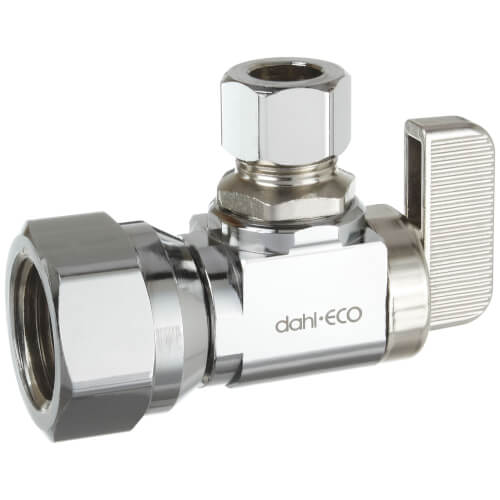

Dahl 611-53-31 1/2" FIP x 3/8" OD Compression Angle Stop Valve (Lead-Free, Chrome/Plated Brass)
A lead-free, angle-pattern supply stop valve used to shut off water to individual fixtures such as faucets and toilets for service or replacement.
Key Features:
- 1/2" FIP inlet x 3/8" OD compression outlet, angle pattern, plated finish
- Product type: Supply Stop
- Lead-Free Brass material (specification)
- Inlet pipe type: Iron; outlet pipe type: Copper (specification)
- Every valve is tested before leaving the factory
- The internal parts (including the spindle and ball) are all brass
Compatibility & Applications:
- It is useful for plumbing, faucet, dishwasher, water filter, toilet, and bidet applications.
- Must only be used where the manufacturer specifies this exact part number: 611-53-31.
Installation & Operation Notes:
- Installation should be performed by a qualified plumber or installer familiar with stop valve replacement and local code requirements.
- Turn off water supply, install product, then turn on water supply and check for leaks
- Abide by local plumbing codes
- Do not expose to corrosive agents
- NPT thread guidance: clean threads, use pipe dope or PTFE tape, tighten while gripping the hex on the valve; do not over-tighten
- Compression on copper pipe: do not use pipe dope or PTFE tape; pipe must be clean, de-burred, round, and cut square; tighten firmly with a small wrench; do not over-tighten
Maintenance & Troubleshooting:
- Stop valves are commonly replaced when they leak, won't fully shut off, or are difficult to turn due to age/corrosion.
- Checking for leaks after installation and avoiding exposure to corrosive agents.
- If a leak persists after installation, follow standard service practice and the thread/compression guidance (proper thread sealant use for NPT; proper copper preparation for compression).
Certifications & Compliance:
- The following for product #611-53-31:
- USA Patent
- CSA
- UPC
- NSF/ANSI/CAN 372
- NSF/ANSI/CAN 61: Q<_0.5
