MANUALS (3)
Product Highlights
Description

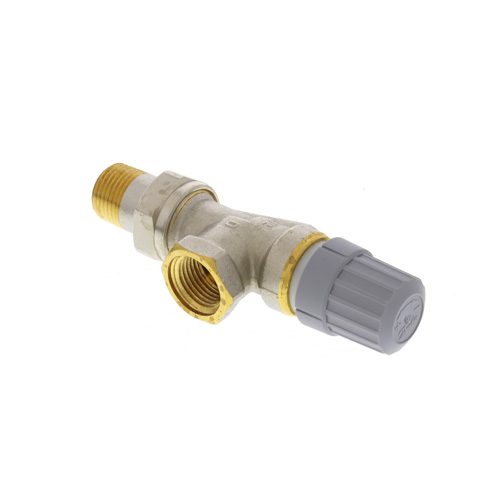

RA 2000 Thermostatic radiator valves regulate the flow of hot water of hot water or steam through free-standing radiators, baseboards or convectors in hot water and two-pipe low pressure steam systems.
1/2" Connection
Application : Water, LP steam
Specs
| Application: | Hot Water Low Pressure Steam |
|---|---|
| Size: | 1/2" |
| Body Pattern: | Side Mount Angle |
| Connection Type: | FNPT x MNPT Union |
| Max Pressure (PSI): | 10 |
| Material: | Nickel Plated Valve |
| Position: | Horizontal |
| Temperature Range (F): | 250°F Max |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
very easy to find the right product
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
1" TRV
Pricey Investment
Just what I needed
Great for traditional cast iron radiators
I have ten of these
I would buy product again
well made easy to install unit
Exactly what I needed
No problems so far
Product Q&A
5 QuestionsQ: Can this be installed on older one pipe (1 1/4")steam radiators?
Asked by Ed 12 years ago
Add your answer
If all you want is to do is turn the steam on or off, then yes. If you want to use it as an automatically adjusting thermostatic valve, then no. Here is a page that explains very clearly how a one pipe steam valve needs to work. http://www.fiainc.com/documents/10-08Canyoureallycontrolaone-pipesteamsystem.pdf Here is an example of a thermostatic steam valve that should do the job. The reviews and questions listed for it have a lot of good details that will help you further. http://www.supplyhouse.com/Honeywell-V2043HSL10-1-8-One-Pipe-Steam-Thermostatic-Radiator-valve-includes-air-vent I hope this has been helpful. Good luck!
Q: do you need to drain the water from the heating system when you install these side mount TRVs
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you will have to drain your system down when installing the valve.
Yes you do or you will have a puddle on your hands! I try and just drain down the system to just below the radiators that I am working on so I do not have to deal with bleeding the air out of the entire system. You can figure out if the water is low enough by just cracking the union fitting where the valve attaches to the radiator and if it drips, you are not low enough.
Q: Can these Danfoss thermo valves be installed on the supply and return side? Or must they be on the supply side?
Asked by Peter 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe recommend that you install them on the supply side.
Q: Which direction does the water flow on this valve?
Asked by James 15 years ago
Add your answer
Verified Reply- PexSupply StaffWater flows from the female thread side to the male thread side on this valve.
Q: Does this valve work as is as a thermostat or do I need to purchase another component?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou will also need to purchase the operator.
