MANUALS (3)
Product Highlights
Description

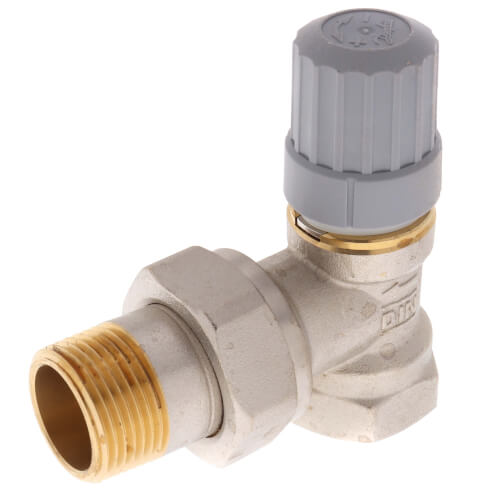

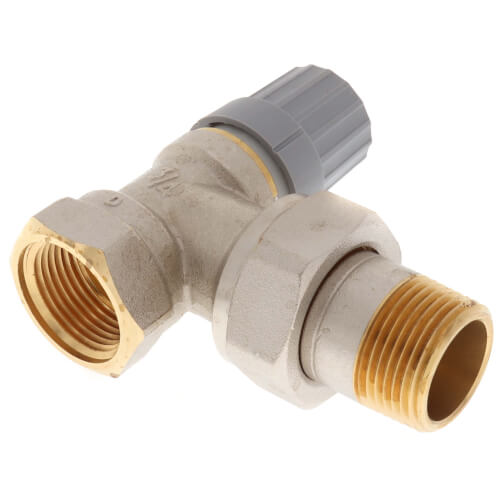

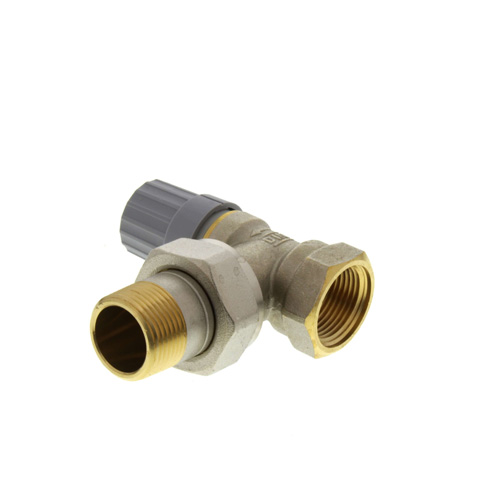

RA 2000 Thermostatic radiator valves regulate the flow of hot water of hot water or steam through free-standing radiators, baseboards or convectors in hot water and two-pipe low pressure steam systems.
Features:
- RA 2000 valves are fitted with a packing gland assembly that is replaceable while the system is in operation. The packing gland is fitted with a grease cup to ensure the o-ring packing is lubricated for life
- Sturdy EPDM rubber valve disc provides a positive seal against the valve seat at differential pressures of up to 15 PSI in hot water heating systems, while 15psig for low pressure steam systems
- Plastic cap supplied to protect the valve pushpin can provide manual control of the valve during installation. If manual operation is required, a separate hand knob is available as an accessory
- Valves remain normally open with no operator mounted
Specs
| Max Pressure (PSI): | 145 |
|---|---|
| Application: | Low Pressure Steam Hot Water |
| Size: | 3/4" |
| Body Pattern: | Angle |
| Connection Type: | FNPT x MNPT Union |
| Material: | Nickel Plated Valve |
| Position: | Horizontal |
| Temperature Range (F): | 250°F Max |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Well made
i would buy this product again
Great for old cast iron hydronic radiators
Good quality
Great Danfoss quality
Yes
Excellent Purchaing Experience
Fast ship. Great service
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
No problems so far
Quality part!
Product Q&A
6 QuestionsQ: My technician recommended "quick release" valves for a couple of my vintage steam radiators, which are not warming up. Would this product be it? Thanks
Asked by Chris 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Chris. Yes it would be quick release, and you can use actuator SKU: 013G8250 along with the valve - https://www.supplyhouse.com/Danfoss-013G8019-3-4-Angle-Thermostatic-Radiator-Valve
Q: Can this valve be used without the direct mount operator to allow manual control of water flow rate to 5 rads connected in parallel? I'm looking for a tidy, manual valve for flow balancing to equalize heat output along the installation. Is this it? What might be better? Thank you.
Asked by Steve 14 years ago
Add your answer
Yes, they work great. I have the same setup. If you might later add any RA2000 thermostats, then you should use the side mount valve (013G8023), because the stats need to be mounted vertically with the sensor away from the radiator. The stats are great for keeping one room cooler than the rest.
Hooked up that way, all of the radiators will be fed at the same time. This valve works best when you have a valve for each radiator. That way, only the exchanger that's calling for heat will open.
Not enough info. GPM, Delta T and BTU's required for that answer. I would doubt a 1" thermostaic valve would handle more than 2 or 3 20K rads with a typical residential pump on a whole house system
https://nathome.net/tcevuh/r
Q: Does this valve offer any option for adjusting water flow independently of room temperature, allowing heat output to be balanced with relation to nearby radiators? In other words, does this valve also act as a balancing valve? Thanks!
Asked by Steve 14 years ago
Add your answer
That is precisely what that valve is designed to do.... It will need a thermostatic head to go w/ it. kpc
Steve- Flow to the radiator is based on the temperature sensor that is placed on the valve; so flow is not regulated independently of room temperature. You can reduce the temperature of one radiator compared to another by adjusting the sensor to different settings if need be. I think they work extremely well in my house with hot water radiators. Joe
I am a residential customer, not a plumber, but this is how I think it works. The TRV has direct control over only the radiator to which it is fitted. There should be an indirect benefit to other units. Since the TRV closes down when room temp reaches the preset level, more heat is then made available to other radiators on the same circuit. However, since apartment building heating circuits are usually on vertical runs, any balancing effect is most likely to benefit rooms above and below. We have been very happy with the comfort provided us by our Danfoss TRVs. We have been urging our coop to install them throughout the 90 units in our building because we believe such an investment, if done building wide, will be paid back in 2-3 years due to increased energy efficiency.
Q: Is it possible to provide a maximum set point that can be set by landlord key for this valve or any similar product? Idea is to have max set point to prevent tenants from cranking up the heat and opening windows....I know they make electronic thermostats like this, but are there any options for TRVs?
Asked by smc 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe operators for the valve come with pins to lock in ranges and settings.
Q: i have a 42 unit apt. building and i am trying to regulate even heat thoughtout the building are these the valves i need to do that i have a 2 pipe low pres. system ( steam)
Asked by big d 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you can use this item. You will also need the operator (SKU: 013G8250).
Q: Does this require the addition of the "Direct Mount Operator" knob to be a complete thermostat? If so, does this replace the gray knob I see in the picture, or does it fit over it somehow?
Asked by Dan 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, a direct mount operator is needed for installation. The gray cap pictured with the valve is only the protective cap. Click the following link to view the direct mount operator: http://www.pexsupply.com/Danfoss-013G8250-Direct-Mount-Operator-5558000-p
