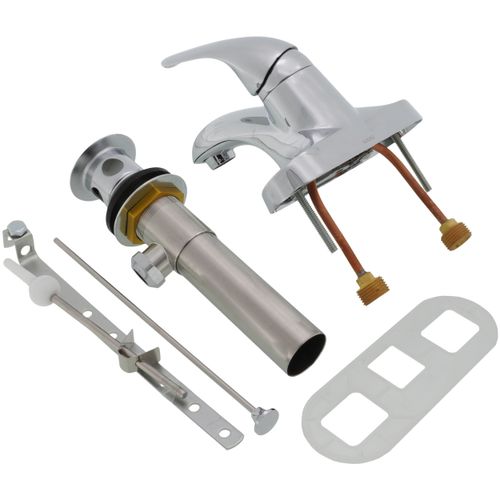

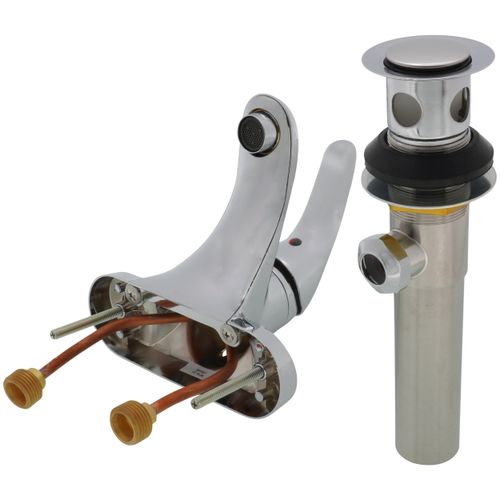

Foundations Single Handle Centerset Lav Faucet (Metal Pop-Up), B510LF
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Chrome
Brass
Deck Mount
Lever
1/2" Connection
NPSM Connection
Description
–
The Foundations centerset bathroom faucet installs on 3-hole sinks with 4 in. centers and uses a single lever handle for manual water control. It has a maximum flow rate of 1.2 gpm at 60 psi and includes a metal pop-up drain assembly.
- 1.2 gpm maximum flow rate at 60 psi
- Deck-mount centerset installation for 3-hole sinks with 4 in. centers
- Solid brass fabricated body
- Rotating stainless steel ball valve with replaceable non-metallic seats
- 4-1/4 in. spout reach
- 1/2 in.-14 NPSM adapters with 1/4 in. O.D. copper supply tubes
- Metal pop-up drain with plated flange and stopper included
- Maximum deck thickness: 1-1/4 in.
Specs
–
| Max Deck Thickness: | 1.25" |
|---|---|
| Approvals: | NSF/ANSI 61 Lead Free ADA / ICC A117.1 ASME A112.18.1 / CSA B125.1 WaterSense |
| Finish: | Chrome |
| Drain Type: | Pop-Up |
| Material: | Brass |
| Application: | Residential |
| Installation Type: | Deck Mount |
| Series: | Foundations |
| Handle Style: | Lever |
| Connection Size: | 1/2" |
| Valve Type: | Ball |
| Number of Holes: | 3 |
| Flow Rate (GPM): | 1.2 |
| Connection Type: | NPSM |
| Type: | Manual |
| Warranty: | Limited Lifetime |
| Product Type: | Bathroom Faucet |
| Number of Handles: | 1 |
| ADA: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3.33 out of 3 reviews
33% would recommend this product
5 star
33%
4 star
0%
3 star
33%
2 star
33%
1 star
0%
Showing 1-3 of 3 reviews
poor drain gaskett seal
drain gasket does not seal properly. leaks through the threads. top and bottom are leak free. very difficult, have yet to achieve leak free.
Andy
York PA
2 years ago
Was this review helpful to you?
unnecessary connection size
Unit is solid metal as far as I can tell. construction is good it has everything needed for drain as well. It has a fairly obtuse securing method that I can see being an issue with some sink styles. The 1/2" connections are what makes no sense to me, its so grossly oversized for the application, I only order 3/8 and 1/4" lines for something like this. I bought stop valves before selection of faucet, this set me back a couple days. 1/2" to 1/4" lines are basically toilet lines. There should never be a 1/2" connection on a bathroom sink, the copper its soldered to is 1/4" OD. I almost just cut and flared but its too short to risk it.
Andy
York, PA
2 years ago
Was this review helpful to you?
I would buy this product again
This faucet saves water. It was easy to install for a homeowner if you have any mechanical ability. It's a shiny chrome that matches what I had. It has a lifetime warranty.
Greg
Richmond, VA.
4 years ago
Verified Buyer
Was this review helpful to you?
