Description

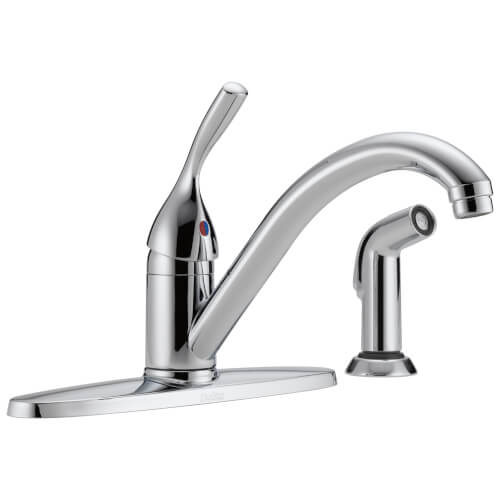

Classic Single Handle Kitchen Faucet with Spray (DST)

Features:
  • DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
  • Meets standards set by Americans with Disabilities Act
  • Includes convenient side sprayer
  • 4-hole 8 in. installation
  • Standard spout swings 180 degrees for added convenience
  • Number of Handles: 1
  • Tall/High-Arc: No
  • Pull-out/Pull-down: No
  • With Side Sprayer: Yes
  • With Soap/Lotion Dispenser: No
  • Valve Type: DIAMOND(TM) Seal Valve
  • Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
  • Holes/Width: 4-hole 8" installation
  • Spout Length: 8"
  • Spout Total Height: null
  • Spout Height Deck to Aerator: 5"

Standard Specifications:
  • 8 11/16" (221 mm) long spout swings 180°.
  • Lever handle shall return to neutral position when faucet is turned off.
  • Control mechanism shall be the diamond coated ceramic cartridge.
  • Model 400 series with spray attachment have anti-siphon device as integral part of faucet.
  • Vegetable sprayer hose with matching finish sprayhead - 45" (1143mm) long hose.
  • 3/8" O.D. straight, staggered pex supply tubes- 35" (889 mm) and 36" (914 mm) long.
  • Standard 3/8" (10 mm) compression gasket fittings.
  • Includes cartridge limit switch to allow a maximum hot water mix of 50%.
  • Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
  • Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
  • 5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
Hide Description
Specs
Application:

Kitchen

Color:

Chrome

Finish:

Chrome Plated

Faucet Holes:

4

Valve Type:

Diamond Seal

Flow Rate:

1.80 GPM

Handles Included:

Yes

Type:

Single Handle

Number of Handles:

1

Sidespray:

Yes

Soap Dispenser:

No

Series:

Classic

×
