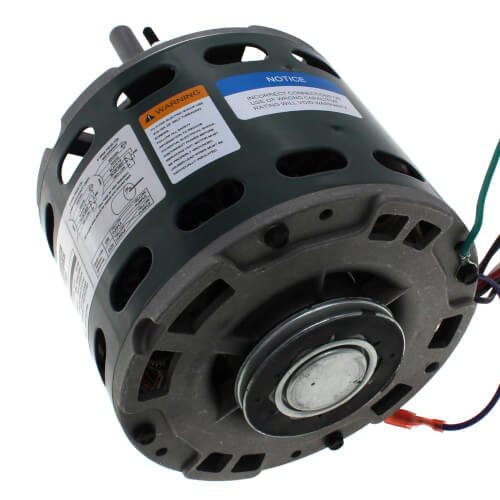

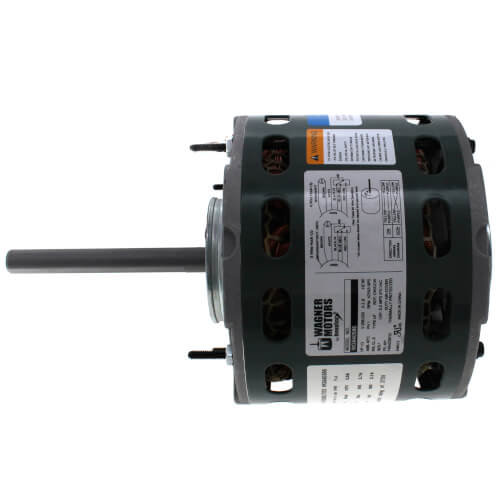

1/3 HP, 208-230 VAC Direct Drive Furnace Blower Motor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$95.93 each
In Stock
Get 2 Thu, Jun 11
Order by today, receive Thursday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
CW/CCW
1/3 HP
Shaft up, shaft down, or belly band
2.9 Amps
Description
–
- Installs with all Standard 48 Frame Mounting Brackets
- Standard Shaft Length, Diameter, and Flats
- Uses 370V Capacitors
- Standard 48 Frame Motor Casing Size
- 2.5" Diameter Hub Rings Included
- Low Power Consumption
- Automatic Thermal Overload Protector
- Continuous Duty, Air Over
- Electrically Reversible
- Class B Insulation
- Quiet Operation
- Color Packaging
Bright, colorful, easy to read packaging removes confusion about motors. The distributor can easily identify the stock of motors on the shelf. The application, voltage, and horsepower of a motor are visible at a glance. - Capacitor Size
The appropriate size 370 VAC run capacitor is noted on every motor carton. - Innovative Packaging

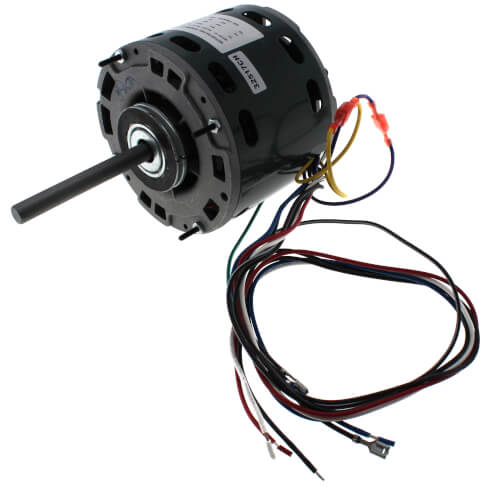

A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment. (See Image #2) - Larger Diagram
An extra large wiring diagram is supplied on the motor itself, on the motor carton, and also in the installation and safety instruction sheet. This large wiring diagram makes it very easy to read. - Cross Reference
For your convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton. - Large Label
Informative product label contains the motor model number in large type. The UPC code is also printed on every motor label. - Extended Bolts
Extended mounting bolts provide for easier installation in cramped spaces. With the longer bolts, the installer is able to more easily start the threaded mounting nut. - Extended Wires
Wagner motor wires are thirty inches long. The added length makes it easier for the contractor to install the new motor. - Wire Stripping
Partial stripping leaves the insulation on the motor connection wire. This protects the stranded copper wire and prevents damage to individual strands. - Insulated Disconnects
Run capacitor connections are insulated for increased safety. Flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided.
Specs
–
| Motor: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 208/230V |
| Amperage: | 2.9 |
| RPM: | 1075 |
| Speeds: | 3 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Mount: | Shaft up, shaft down, or belly band |
| Insulation Class: | B |
| Bearings: | Sleeve (ball bearing for WG840595/96) |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 30 inches |
| Lead Wire Gauge: | #18 AWG |
| Motor Diameter: | 5.59" |
| Motor Length: | 9.39" |
| Shaft Diameter: | 1/2" |
| Shaft Length: | 4-1/2" |
| Shaft Flats: | One flat |
| Weight (lbs): | 12.1 lbs |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Reviews
4 out of 1 review
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
This motor preforms verry well
I used this motor for HVAC purposes.
It have good tork and is quiet and smooth.
Buddy the HVAC Tech.
Upper Marlboro, MD.
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: which 370vac capacitor for this motor? Thanks
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to page 2 of the following specifications: http://s3.pexsupply.com/manuals/1275401588883/31467_PROD_FILE.pdf
