Product Highlights
Description
Note: This product is designed for electric dryers only. It does not meet Underwriters Laboratories UL-705 DEDPV standards for gas dryers.

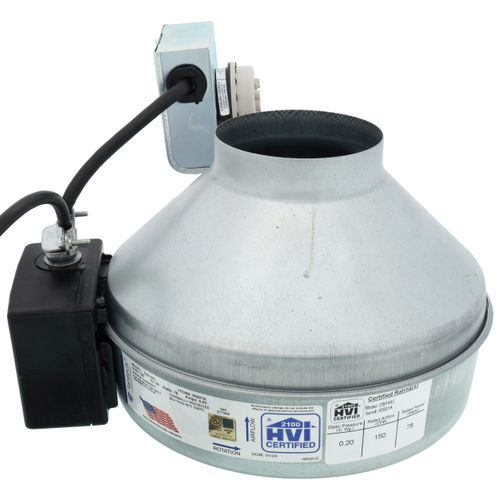

DBF 4XL is a duct booster fan designed for boosting air on demand. The product is equipped with a 5 feet power cord, pressure-sensing switch that activates the fan once positive pressure is sensed in the duct line. The switch shuts the fan off when the pressure in the duct normalizes.
Features:
- Performance certified by HVI; safety certified by ETL to UL507.
- Galvanized metal housing
- Pressure-sensing switch
- 5 feet power cord for 120V/1
- Suitable for 4" ductwork
Specs
| Product Type: | Dryer Booster Fan |
|---|---|
| Duct Size: | 4" |
| Voltage: | 115V |
| RPM: | 2800 |
| Max. Watts: | 83 |
| Max. Amps: | 0.73 |
| Warranty: | 5 Year |
Questions?
Compare Similar Products
You May Also Need
8 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Easy to install Very Quiet
Most Liked Negative Review
No answeres to questions
works perfectly
I would buy this product again.
Good
Lasts about nine years... at least mine did.
Yes this is a super nice fan
Works Well
I would buy this product again.
A quality product
Yes
Too large for my application
Product Q&A
6 QuestionsQ: Can this be used on 2 story bldg with 2 dryers
Asked by TJ 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe DBF4XL is suitable to overcome an equivalent duct length of no more than 130 feet of 4 inch diameter galvanized steel duct.
Q: Is this fan UL listed?
Asked by Joe 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, Fantech DBF4XL is safety certified by ETL to UL507.
Q: can this fan be mounted horizontally?
Asked by JL 12 years ago
Add your answer

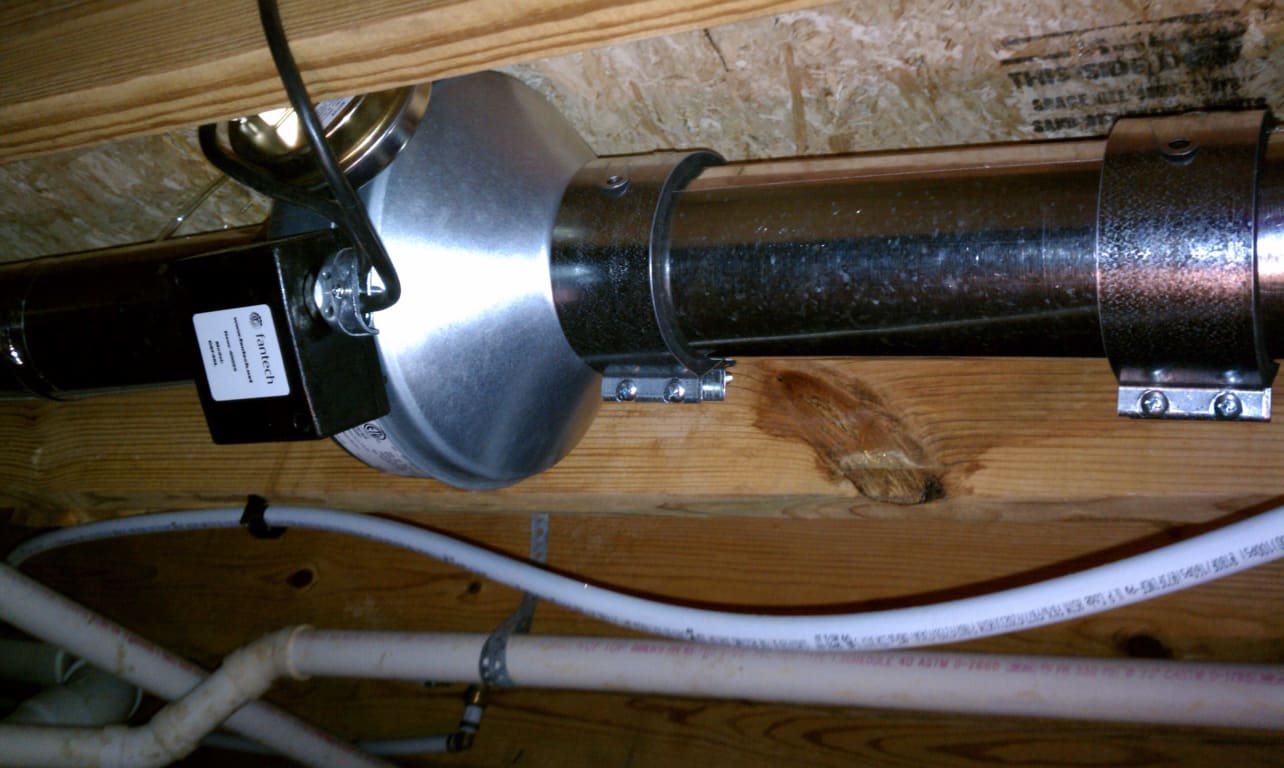

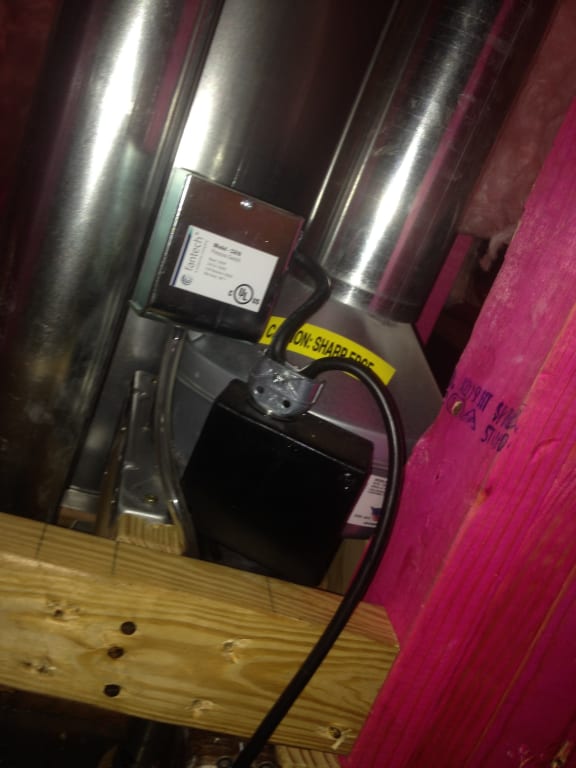

Yes. Properly supported it will operate in any orientation. Mine is on an angle in the attic near the exit point through the roof. Dave Fretz
I mounted my horizontally & it seems to work OK. Sometimes the air flow switch on the fan seems a little sensitive.
Q: Does it matter where in the vent line the fan is installed? Is it better to be as close to the dryer as possible?
Asked by Shopdoc57 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe fan can be installed anywhere in the line, but you should use a lint trap (part DBLT4) if the fan is within 15 feet of the dryer. When the fan and dryer are this close together, the fan may pull lint from the dryer.
Needs to be installed 5 foot up off the floor also need a lint trap installed before the power vent
The included directions state where the recommended place for installing the dryer booster. If I remember correctly they state if close to the dryer you may need to install a secondary lint trap. Works great! I have a 18 foot run with 8 elbows, my drying time is cut in half. The only problem that I have is the booster creates a vacuum when turned on, so the unit will cycle off and on during a drying cycle after the two minute delay, yet still works great. I have not messed with diaphragm placement to get better results. Great buy. Sean DeSouza Excellence in Construction
Q: I have a 40 foot run through my basement with one 90 degree elbow. Which booster fan would be best for me, the Fantech DBF4XL W/FG4XL fan or the DBF 110 W/FR110 fan? Do I need a DBLT4 lint Trap?
Asked by just plain Bill 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou should use the DBF110 booster fan kit.
Yes get the lint trap, I was amazed how much it picks up from a 5 year ole whirlpool Neptune high end dryer. I would attempt to clean out the existing piping as much as you can as well. The amount of fuzz that came out of mine was a lot more than i thought. I have the DBF4XL fan and am happy. It is nearly silent.
Sounds like you are faced with a similar situation which I resolved with the DBF4XL with FG4XL fan. I was amazed on how well this has improved the dry time of our laundry. You can see my original review. "1 Screw Loose". To this day I feel that this was one of my better investments. I had fought this situation for several years and can not remember how I stumbled on this product. I do know that the moisture buildup in my duct system has disappeared. As far as the additional lint trap is concerned it is a value added. Can not believe how much additional lint it catches before being trapped in my duct work. Only thing is that I had to remember to clean the lint out of it but after a while I just reach in and remove the lint when I am in the basement.
Q: How long should the fan run after the dryer has stopped?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe fan should run for 10 minutes after the dryer has stopped.
