FG Series Round Inline Exhaust Fan, 12" Duct (940 CFM)
Hover image to zoom

FG Series Round Inline Exhaust Fan, 12" Duct (940 CFM)

Brand:
Fantech
SKU:
FG12XL
Rating:
(7)
Q&A:
(2)
FG Series Round Inline Exhaust Fan, 12" Duct (940 CFM)
Hover image to zoom
$474.30 each
In Stock
In Stock
Get 30 Fri, Jun 21
More Available
Fast Track Logo
Order by today, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Max. Amps icon
3.01
Air Flow Capacity (CFM) icon
940 CFM
Warranty icon
5 Year Warranty
Duct Size icon
12"
Voltage icon
120v
RPM icon
2900 RPM

Description

Note this fan would be hardwired into its electrical terminal box and does not include a power cord

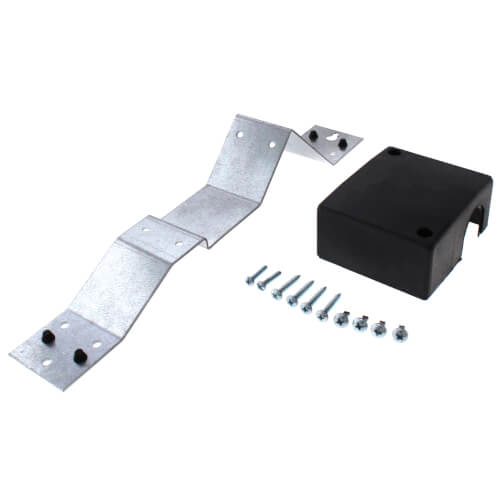

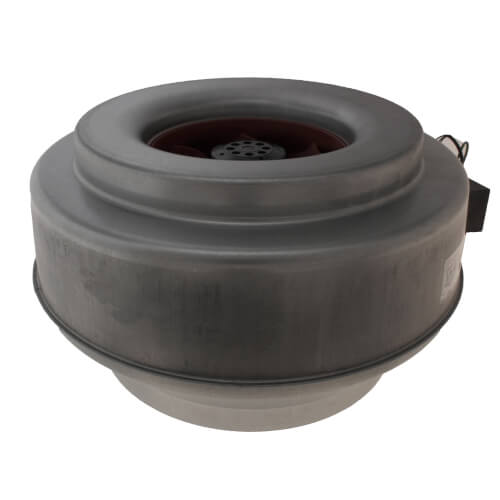

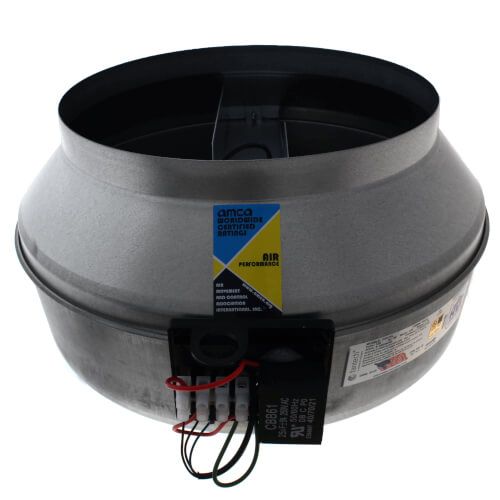

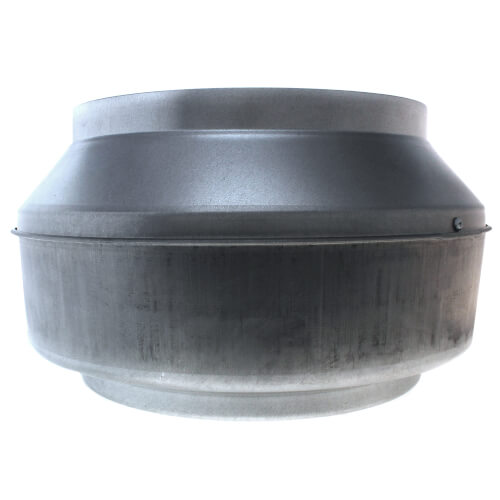

Fantech's versatile FG Series Inline Fans are virtually airtight. Galvanized steel housings meet code requirements for both residential and commercial applications. High quality ebm-papst motors ensure long life and dependable performance. The FG Series features new longer duct connections for easier installation. Fans are prewired and include the bracket for mounting to wall or ceiling. Straight-through airflow allows fans to be installed at any angle at any point along the duct work.

Features:
  • Airtight galvanized steel housing - perfect for commercial code applications

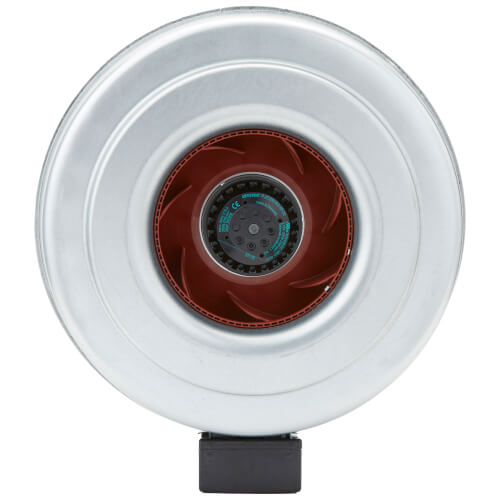

  • Powered by ebm-papst external rotor motorized impeller for excellent heat dissipation, even at low RPM
  • Backward curved impeller
  • Permanently lubricated sealed ball bearings for maintenance free operation
  • Automatic reset thermal overload protection
  • 100% speed controllable
  • Rated for air stream temperatures up to 140°F
  • Rated for outdoor use
  • 5-Year factory warranty

Specs

Duct Size:

12"

Voltage:

120v

RPM:

2900

Air Flow Capacity (CFM):

940

Rated Watts:

301

Max. Amps:

3.01

Housing Material:

Galvanized Steel

Warranty:

5 Year

0" Ps:

940 CFM

0.2" Ps:

880 CFM

0.4" Ps:

819 CFM

0.6" Ps:

746 CFM

0.8" Ps:

670 CFM

1.0" Ps:

596 CFM

1.5" Ps:

425 CFM

2.0" Ps:

400 CFM
