Product Highlights
Description

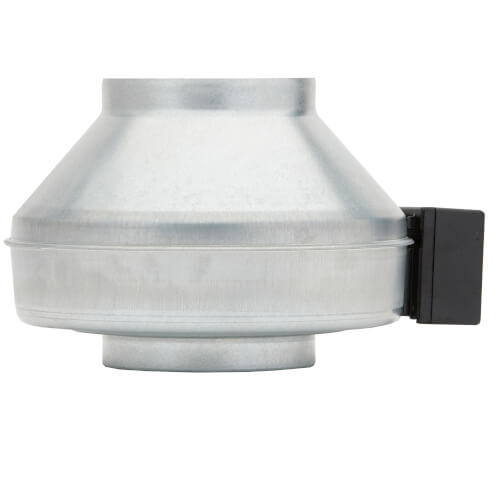

Fantech's versatile FG Series Inline Fans are virtually airtight. Galvanized steel housings meet code requirements for both residential and commercial applications. High quality ebm-papst motors ensure long life and dependable performance. The FG Series features new longer duct connections for easier installation. Fans are prewired and include the bracket for mounting to wall or ceiling. Straight-through airflow allows fans to be installed at any angle at any point along the duct work.
Features:
- Airtight galvanized steel housing - perfect for commercial code applications
- Powered by ebm-papst external rotor motorized impeller for excellent heat dissipation, even at low RPM
- Backward curved impeller
- Permanently lubricated sealed ball bearings for maintenance free operation
- Automatic reset thermal overload protection
- 100% speed controllable
- Rated for air stream temperatures up to 140°F
- Rated for outdoor use
- 5-Year factory warranty
Specs
| Duct Size: | 6" |
|---|---|
| Voltage: | 120v |
| RPM: | 2700 |
| Air Flow Capacity (CFM): | 303 |
| Rated Watts: | 72 |
| Energy Star Rated: | Yes |
| Max. Amps: | 0.68 |
| Housing Material: | Galvanized Steel |
| Warranty: | 5 Year |
| 0" Ps: | 303 CFM |
| 0.2" Ps: | 270 CFM |
| 0.4" Ps: | 232 CFM |
| 0.6" Ps: | 196 CFM |
| 0.8" Ps: | 164 CFM |
| 1.0" Ps: | 134 CFM |
| 1.5" Ps: | 58 CFM |
Questions?
Compare Similar Products
You May Also Need
5 Replacement Parts
Need help finding a replacement part?
Product Reviews
I would purchase again
Product was what I expedcted
Excellent product
! would buy this again!
I will buy this product again!
This fan sucks - and that's a good thing!
Quiet- would buy again!
Solid value product.
What I needed.
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Moves a lot of air but but produces more noise that I'd like
Product Q&A
5 QuestionsQ: What plastic material is the blade made from?
Asked by DSTA 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe impeller is made of high impact polypropylene.
Q: I'd like to know how loud the fan is. Why doesn't the manufacturer list sone value? Also, can the fan be located close to a stove?
Asked by charlie 12 years ago
Add your answer
It's loud, even when mounted. I wish I'd bought something else, it's too loud for residential use. Sent from my mobile; sorry if I've been brief.
It’s quiet. Much quieter than the typical range exhaust fan. Guess the real issue is where will it be installed?
I installed this for a remodel customer and located it in the attic above the kitchen. From memory I would say the fan motor is very quiet. The sound of the air moving through the duct is what is heard, but if you are actually moving air, that will happen with any fan. I don’t think it would matter much if the fan is closer to the stove. I would recommend not to use a flex duct but a rigid duct where ever you can. flex duct will slow the air down and the semi rigid flex duct with small ridges in it will not only slow down air, but add to the noise of air moving (like the way a A/C return will if you close it most of the way. Also the less turns the better. Every turn is counted as several extra(less) feet of how far you can duct out.
I installed this fan to pull heat off my wood stove and move the warm air through duct work to the basement of my house. The fan is fairly loud at both the suction (stove) and exhaust ends of the duct. The fan itself though is fairly quiet. Its annoying enough that am considering some sort of baffle system. I recall seeing "mufflers" but they were pricy. If I had it to do over, I would probably look for a squirrel cage type blower fan. --Dave
Hi there, I once used the FG 4 and it was noisy. The FR 6 might be better which is plastic. You might also want to use a speed controller with it to slow it down to an acceptable noise level. Hope this helps Colin Colin Smith Industrial Electronics Ltd. Please note: New email ****@***.***
Q: Can this fan be used to remove smoke from a furnace room and is it compatible with 6" galvanized stove pipe (If no what type conduit is it compatible with)?
Asked by DS 13 years ago
Add your answer
Verified Reply- PexSupply StaffIt can be used in such an application, however keep in mind that it has a maximum temperature of 140 degrees, so it is not suitable for venting combustion exhaust. The unit is compatible with galvanized stove pipe.
Q: can this fan be used with a speed control switch, and what are the sones at max speed.
Asked by mike 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can use this fan with a speed control switch, but there is not a listed sone rating for the fan.
This fan is compatible with a speed controller and appears to be nearly silent at full speed.
Q: Blade material is?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis fan has a plastic blade.
Plastic
