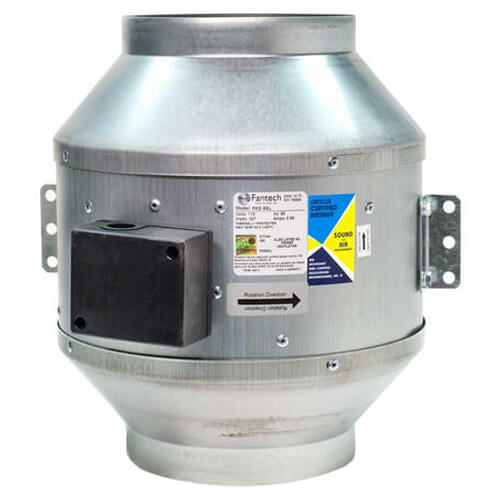

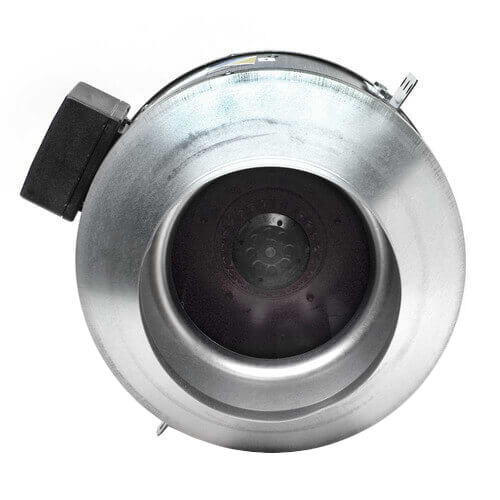

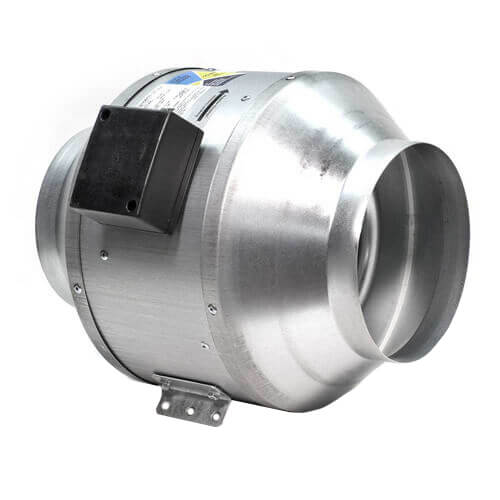

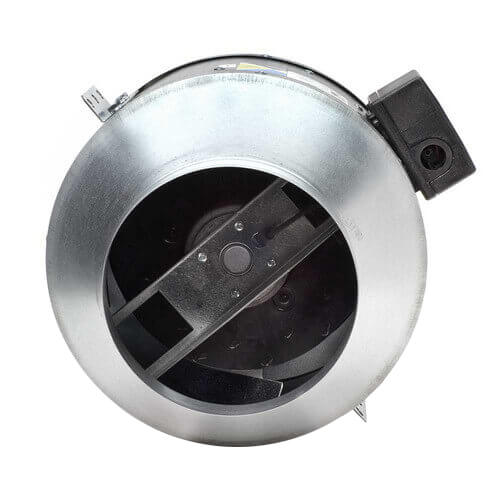

FKD Series Round Inline Mixed Flow Centrifugal Fan, 10" Duct (1,266 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$641.01 each
In Stock
Get 50 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4.84
1266 CFM
3 Year Warranty
10"
115V
2850 RPM
Description
–
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.
Features:
- Galvanized steel housing
- External rotor motor with built-in thermal overload protection and automatic reset
- Mixed flow impeller
- Permanently lubricated sealed ball bearings
- Excellent heat dissipation to ensure long motor life
- Suitable for airstream temperatures up to 140°F
- Terminal box with prewired electrical strip
- Three-year warranty
Specs
–
| Duct Size: | 10" |
|---|---|
| Voltage: | 115V |
| RPM: | 2850 |
| Air Flow Capacity (CFM): | 1266 |
| Rated Watts: | 529 |
| Max. Amps: | 4.84 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
| 0" Ps: | 1266 CFM |
| 0.2" Ps: | 1203 CFM |
| 0.4" Ps: | 1135 CFM |
| 0.6" Ps: | 1056 CFM |
| 0.8" Ps: | 980 CFM |
| 1.0" Ps: | 900 CFM |
| 1.5" Ps: | 696 CFM |
| 2.0" Ps: | 460 CFM |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
2 Replacement Parts
Capacitor Replacement
SKU: 410221
FantechScrews Kit Electric Box for FG Series
SKU: 484049
Fantech
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.25 out of 28 reviews
85% would recommend this product
5 star
68%
4 star
14%
3 star
4%
2 star
4%
1 star
11%
Customer Images
Most Liked Positive Review
Great performance at reasonable price
We replaced the fan in our Viking range hood with this in line fan installed in duct work the attic and combined it with a Fantech LD10 silencer using Fantech LC10 mounting clamps to connect the two. The result is impressive. We have ample air flow in the range hood and the noise is not much more than the air condition at lower levels and more noticeable but still far better than the original Viking fans when switched on at highest level. The Viking control knob works with this fan.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
This is to replace one that is only 2 years old
i do not recommend this product and I'm looking for a different source and product to use, these fans come with a 3-year warranty and i reached out to supply house with my documentation and they told me I had to call fan tech support even though I bought this motor from supply house.
I reached out to Fantech on Dec 5th, and they asked why i was the one calling as i did not buy it from them and they said they will reach back out to me in 5 business days and I'm still waiting (I called 2 weeks later and Fantech said they will busy and will get back to me when they can.)
Showing 1-10 of 28 reviews
I buy this product all the time
Great reliable inline fan.
MJWinLA
Los Angeles
21 days ago
Verified Buyer
Was this review helpful to you?
We keep buying this product.
great inline fan. We have installed many of these as exhaust or for a booster for HEPA filters. Never had an issue.
MJWinLA
Los Angeles
2 months ago
Verified Buyer
Was this review helpful to you?
I keep buying this fan.
Use this fan to exhaust air above heat generating equipment and as a booster fan.
I keep purchasing them as they work great with no issues.
MJWinLA
Los Angeles
6 months ago
Verified Buyer
Was this review helpful to you?
Great product
Easy install and works great
JM
Michigan
1 years ago
Verified Buyer
Was this review helpful to you?
As a HVAC pro, I Highly recommend Fantech products
I've seen a Fantech fan fail (35 years of experience)
A/C geek
California
1 years ago
Was this review helpful to you?
Exhaust Fan
Great product worked as needed great price !
Dick
Las Vegas
2 years ago
Verified Buyer
Was this review helpful to you?
I have purchased several of these fans.
Use it to exhaust hot air from above reach-in coolers and ovens in a back room.
Mwalt
Los Angeles
2 years ago
Verified Buyer
Was this review helpful to you?
This is to replace one that is only 2 years old
i do not recommend this product and I'm looking for a different source and product to use, these fans come with a 3-year warranty and i reached out to supply house with my documentation and they told me I had to call fan tech support even though I bought this motor from supply house.
I reached out to Fantech on Dec 5th, and they asked why i was the one calling as i did not buy it from them and they said they will reach back out to me in 5 business days and I'm still waiting (I called 2 weeks later and Fantech said they will busy and will get back to me when they can.)
Larmo
Portage Micjigan
3 years ago
Verified Buyer
Was this review helpful to you?
Broken out of the box
Broken out of the box. Also uses a glue which doesn't bind to the motor controller plastic in an attempt to hold it to the sheet metal.
Bryan
Wixom, MI
3 years ago
Was this review helpful to you?
Very quiet and effective exhaust fan for range.
I installed this as an attic range hood vent fan. I did use the silencer tube with this. The fan is so quiet I do not need a variable speed control. I mounted this with vibration isolaters (rubber mounts ordered from zoro) and the rubber strap clamps for 10 inch hvac tubing. My model is the 10XL and replaces a roof mounted thermador fan.
MW
Dallas
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is this fan explosion proof?
Asked by Kyle 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo it is not. Fantech unfortunately does not offer any explosion proof fans.
