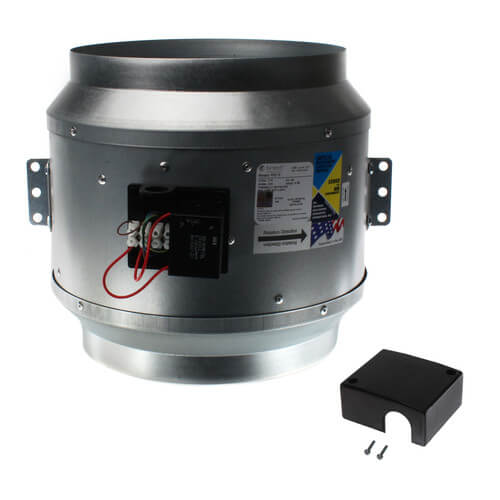

FKD Series Round Inline Mixed Flow Centrifugal Fan, 12" Duct (1,305 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$879.75 each
In Stock
Get 9 Wed, Jul 8
Order by today, receive Wednesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4.86
1305 CFM
3 Year Warranty
12"
115V
2900 RPM
Description
–
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.
Features:
Features:
- Galvanized steel housing
- External rotor motor with built-in thermal overload protection and automatic reset
- Mixed flow impeller
- Permanently lubricated sealed ball bearings
- Excellent heat dissipation to ensure long motor life
- Suitable for airstream temperatures up to 140°F
- 100% speed controllable
- Terminal box with prewired electrical strip
- Three-year warranty
Specs
–
| Duct Size: | 12" |
|---|---|
| Voltage: | 115V |
| RPM: | 2900 |
| Air Flow Capacity (CFM): | 1305 |
| Rated Watts: | 531 |
| Max. Amps: | 4.86 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
| 0" Ps: | 1305 CFM |
| 0.2" Ps: | 1245 CFM |
| 0.4" Ps: | 1182 CFM |
| 0.6" Ps: | 1110 CFM |
| 0.8" Ps: | 1030 CFM |
| 1.0" Ps: | 948 CFM |
| 1.5" Ps: | 712 CFM |
| 2.0" Ps: | 479 CFM |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
2 Replacement Parts
Capacitor Replacement
SKU: 410221
FantechScrews Kit Electric Box for FG Series
SKU: 484049
Fantech
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.4 out of 5 reviews
100% would recommend this product
5 star
40%
4 star
60%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Great fan!
Fan is awesome, blows hard but is very loud.
Ryan
Missouri
7 years ago
Verified Buyer
Was this review helpful to you?
Good duct fan
I had a situation with large back-pressure (no return air from this area). I picked this model because it can blow against 3" of water pressure. It works very well. It will pressurize the area and does very well at getting air in there. The first fan I received was defective (very hard to spin), but SupplyHouse.Com replaced it for me - no hassle.
Todd
San Francisco, CA
9 years ago
Verified Buyer
Was this review helpful to you?
2nd one works great
First Fantech FKD 12" duct fan I got from SupplyHouse.com was bad. The fan scrapped some part of the internal housing and it was very hard to turn. I returned it and they sent a new one. Very little vibration. Pumps lots of air - even with significant back pressure. I'm happy with it.
Todd
San Francisco
9 years ago
Verified Buyer
Was this review helpful to you?
Always works great!
We use these for household kitchen range exhausts and commercial condensate and heat exhausts. Always work as advertised and so far no service calls.
The stainless guy
Boston
11 years ago
Verified Buyer
Was this review helpful to you?
very nice unit
A high quality product the motor spun up very true and quiet
madremodeler
Rhode Island
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does this unit have a silencer available for it ?
Asked by James 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi James. A silencer for 12" duct would be SKU: LD12 - https://www.supplyhouse.com/Fantech-LD12-Galvanized-Steel-Silencer-for-12-Duct
Was this review helpful to you?
Q: I want to install it in my home. What do I need in order to do so?
Asked by Angel 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYou may want to consider these optional accessories: Roof Vent- http://www.supplyhouse.com/Fantech-RC12-Galvanized-Steel-Roof-Cap-12-Duct Duct Silencer- http://www.supplyhouse.com/Fantech-LD12-Galvanized-Steel-Silencer-for-12-Duct Variable Speed Control- http://www.supplyhouse.com/Fantech-WC15-WC-Series-Variable-Speed-Control-with-On-Off-Switch-5A Duct Mounting Clamps- http://www.supplyhouse.com/Fantech-FC12-FC12-Mounting-Clamp-for-Round-12-Duct-Pair
