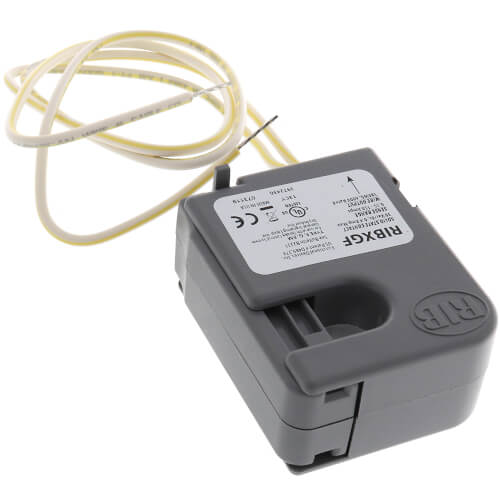

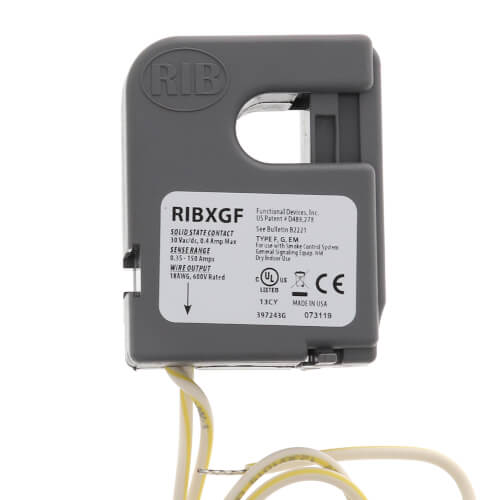

Enclosed Self Powered Split Core, Fixed Current Sensor, .35-150 Amp, Wire Leads
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$33.75 each
In Stock
Get 73 Thu, Jun 11
Order by today, receive Thursday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
30V
Description
–
Specifications:
- Operating Temperature: -30 to 140° F
- Humidity Range: 5 to 95% (noncondensing)
- Max Sense Voltage: 600 Vac
- Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS

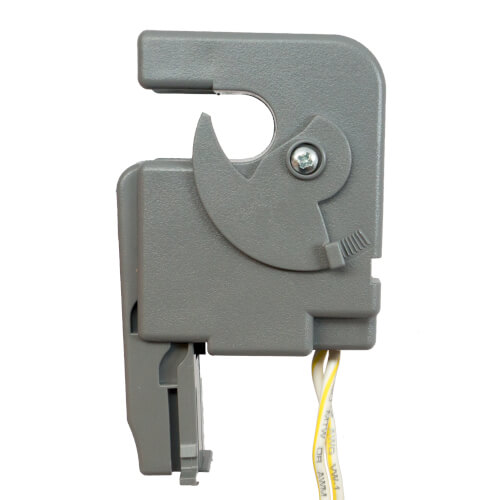

- Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
- Sensor Contact Status: Current below threshold: Open / Current above threshold: Closed
- Sensor Contact:
- Solid State Contact: When sensor contact is off (open), leakage <30 uA @ 30Vac/dc
- When sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp < 1.6 Vac/dc @ .4 Amp
Specs
–
| Voltage: | 30V |
|---|---|
| Sensor Range: | 0.35-150 Amp |
| Type: | SPST |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Current sensor
I needed a way to tell me when my septic effluent pump was on and for how long it would run. The tank is buried under my driveway. Hooked up the sensor to the hot side of the pump and used an LED light and a 12 volt power supply. Works perfectly.
Yamaha guy
Rangeley Maine
1 years ago
Verified Buyer
Was this review helpful to you?
Quick, Easy And Priced Right
Used To Control Furnace Fan And Motorized Damper For Outside Makeup Air For 600 Cfm Kitchen Range Hood.
Cornerstone
State College Pa
2 years ago
Was this review helpful to you?
YES
GREAT PRODUCT. USE THESE TO BRING ON UV LIGHTS INSIDE AHU
ABNER
NAHUNTA GA
3 years ago
Verified Buyer
Was this review helpful to you?
