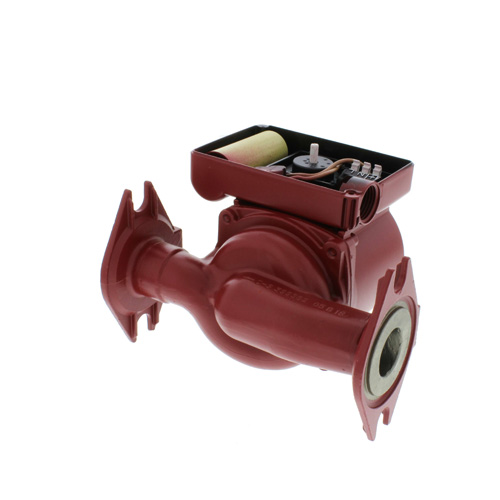

UPS15-55SFC Stainless Steel 3-Speed Flanged Circulator Pump, 1/12 HP, 115 V
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (5)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Features:
- Perfect for hot water recirculation applications
- Stainless steel - Protects against corrosive fluids
- Flanged
- Check Valve
- Pump Connection: GF 15/26 Flange
- 3-speed SuperBrute technology available
- Timer and line-cord options available
- Integrated, removable check valve
- Quick connect terminals for easy installation
- Highest starting torque in its class
- Industry leading three-year warranty
Specs
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Type: | 3-Speed Pump |
| Material: | Stainless Steel |
| Application: | Heating |
| Voltage: | 115V |
| Hertz: | 60 |
| Phase: | 1 |
| Max Pressure (PSI): | 145 |
| Flow Range (GPM): | 0-25 |
| Max Flow (GPM): | 25 |
| Poles: | 2 |
| Head Range (ft.): | 0-18 |
| Max Head (Ft): | 18 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Size: | 3/4" 1" 1-1/4" 1-1/2" |
| Mount: | In-Line |
| Connection Type: | Flanged x Flanged |
Questions?
Compare Similar Products
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Thousands of Grundfos pumps since 1975
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Bad out of box
Bad out of box
Excellent Relacement. Fit in 35 year old system Perfectly
My last pump lasted for 23 years. Great quality!
Cannot be more PERFECT !!!
My go to company from now on.
quality equipment
Seamless return
GRUNDFOS PUMP
I hope I won't need another.
Grundfos UPS15-55SFC, The UPS15-42SF replacement
Product Q&A
6 QuestionsQ: Hi, my 25 year old UP25-64sf just died, is the replacement a direct bolt in. Also, can I purchase the motor replacement alone? Thanks Tony
Asked by Tony 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the UPS15-55SFC is the direct replacement so it should bolt right into the existing flanges. There is a replacement cartridge for this current pump which is sku 599409.
Q: can this be used on hot water recirc.for potable water.to replace bronze taco 008.am trying to save $ and not buy bronze again.
Asked by russell 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis certainly can be used for hot water recirculation. The 008 bronze pump has been replaced by the 008-SF6 which is also a stainless steel pump but this would be a perfectly fine alternative as well, it has the 3 speed options so just compare the pump curves for accurate specification adjustments.
Q: my Grundfos 59896145 just went out. Whats the big difference between the two? My old one cost 3x more, is it any better then this one? I'm using it to recirculating hot water loop.
Asked by Twin 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe main difference is the material, the original pump sku 59896145 is made of Bronze, and this pump is made of Stainless Steel. Also this pump is a three speed and has wider GPM and Ft of head ranges, where as the other is a single speed.
Q: Which side is the intake?
Asked by Dick 13 years ago
Add your answer
There is an arrow on the side or bottom
There is an arrow on the side of the body that tells you which direction the flow goes.
The direction of flow is indicated by a arrow inscribed in the metal of the base. You can reorient the motor to suit your installation needs.
The intake routes the liquid into the eye of the impeller, so it wraps down and then up into the center of the bottom of the pump case. It should have an arrow showing flow direction cast into the the case - see attached photo. JRC
Q: Which flanges go with the stainless steel pump? Is there a stainless flange? bronze?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis pump works with standard flanges. You will want to use either bronze or stainless steel. Taco makes stainless steel flanges that work with this pump.
Any flange of the same shape should match up with this pump.
I am not aware of any stainless flanges. Bronze flanges come with the kit and they work fine for any system.
Q: I have a return hot water system that has been iN service for 9 years. It recently failed. I am looking for another with a timer. WHAT DO YOU SUGGEST?
Asked by Robert 16 years ago
Add your answer
Verified Reply- PexSupply StaffWe would suggest a UP10-16BN5/ATLC, (SKU: 96433899) for your system. This UPS15-55SFC has a timer as well.
Grundfos has one with timer. Make sure the return line has a check valve and hose bib between the pump and water heater for purging the entire hot water return piping. I just replaced one that had been running without purging the line and the pump was ruined because of a faulty installation.
