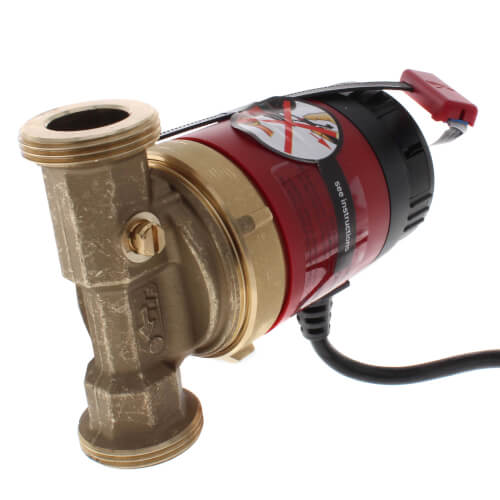

UP10-16APMBU/LC, 115V Pump, w/ Auto Adapt & Line Cord (1-1/4" Union)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$389.00 each
In Stock
Get 137 Tue, Mar 28
More Available
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 96433902, 98420223, 96433898, 96433897, 97525910, 97525921, 96433895, 97525922, 97525909, 98420210
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Aluminum, Stainless Steel
Union Connection
1-1/4" Connection
115v
145 PSI
2.2 MAX GPM
Description
–
Note: This product does not include the necessary union fittings and requires the separate purchase of 529913.
The Grundfos Comfort UP 10-16 PM Auto range sets new standards for energy-efficient hot water recirculation in residential homes. Thanks to a low noise permanent magnet motor, energy consumption is reduced to as little as 5-8.5 W. Utilizing AUTOADAPT ensures the pump only runs when required, so the result is maximum comfort with lower wait times for hot water as well as reducing water and electrical waste.
Features:
Specifications:
The Grundfos Comfort UP 10-16 PM Auto range sets new standards for energy-efficient hot water recirculation in residential homes. Thanks to a low noise permanent magnet motor, energy consumption is reduced to as little as 5-8.5 W. Utilizing AUTOADAPT ensures the pump only runs when required, so the result is maximum comfort with lower wait times for hot water as well as reducing water and electrical waste.
Features:
- Easy installation; Minimize water waste; Lower energy consumption; Learns and adapts to homeowner’s water temperature needs.
Specifications:
- Connection: 1-1/4" Union;
- Flow Range: 0-2.2 GPM (0-0.5 m³/h);
- Head Range: 0-3.9 ft (0-1.2 m);
- Phase: 1;
- Housing: EcoBrass;
- Maximum Liquid Temperature: 185°F (85°C);
- Minimum Liquid Temperature: 36° (2°C);
- Maximum System Pressure: 145 psi (10 bar);
- Voltage: 115V;
- Amperage: 0.23 Amps;
- Power: 5-8.5 Watts.
Specs
–
| Includes: | Aquastat Line Cord |
|---|---|
| Type: | Dedicated Pump |
| Connection Size: | 1-1/4" |
| Connection Type: | Union |
| Voltage: | 115v |
| Max Pressure (PSI): | 145 |
| Flow Range (GPM): | 0-2.2 |
| Max Flow (GPM): | 2.2 |
| Head Range (ft.): | 0-3.9 |
| Max Head (Ft): | 3.9 |
| Temperature Range (F): | 36°F to 203°F |
| Speeds: | 1 |
| Frequency: | 60 Hz |
| Material: | Aluminum Stainless Steel |
| Phase: | 1 |
