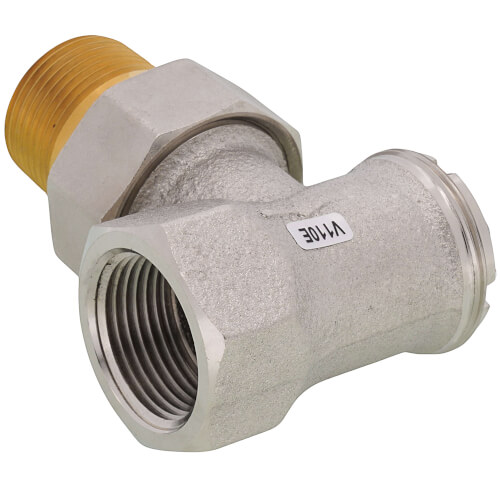

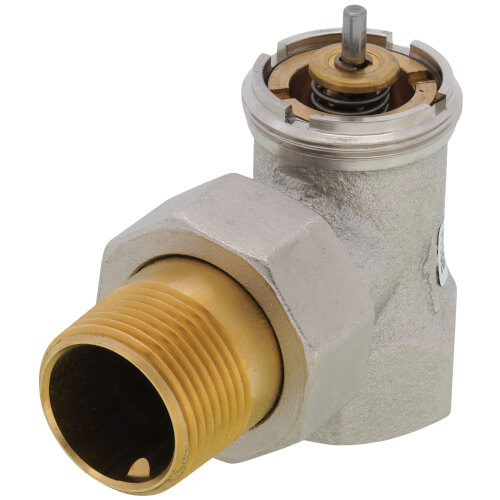

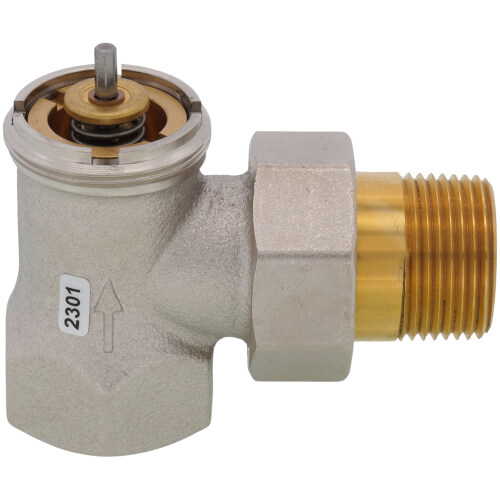

1" Angle Valve for High Capacity Radiator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$116.46 each
In Stock
Get 28 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Angle
15 (Steam), 150 (Hot Water) MAX PSI
FNPT x MNPT Union, Threaded Connection
7 Cv
193000 BTU Capacity
Description
–
Overview
High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Features
Specifications:
High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Features
- Designed with the higher capacity normally required by North American heating systems.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Valves may be used with T104 Thermostatic Actuators.
- Meet ASHRAE Standard 102-1989
Specifications:
- Application:Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators
- Dimensions (in.)1-5/16 in. x 3 in.
- Dimensions (mm)33 mm x 76 mm
- Temperature Range (F): 248F
- Maximum Temperature Range (C): 120C
- Used With: T104
- Connection Type: Threaded
- Body Pattern: Angle
- Pressure Ratings (psi) Hot Water: 150 psi max, Steam: 15 psi max
- Pressure Ratings (kPa)Hot Water: 1034 kPa max, Steam: 103 kPa
- Pipe Size (inch): 1 in.
- Pipe Size (DN)DN25
- Maximum Differential Pressure Ratings (Close-off) (psi): 17 psi max
- Capacity: high
- Capacity (Cv): 7.0 Cv
- Capacity (Btu/hr-steam): 193,000 Btu/hr
- Materials (Body): Bronze
Specs
–
| Application: | 2 Pipe Steam Hot Water |
|---|---|
| Size: | 1" |
| Body Pattern: | Angle |
| Max Pressure (PSI): | 15 (Steam) 150 (Hot Water) |
| Connection Type: | FNPT x MNPT Union Threaded |
| Capacity: | High |
| Flow Capacity (Cv): | 7 |
| Capacity (BTU): | 193000 |
| BTU: | 193000 Btu/hr (steam) |
| Material: | Bronze |
| Position: | Normally Open |
| Temperature Range (F): | 248°F Max |
| Differential: | 17 psi |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Replacement Cartridge for V110
SKU: CA110C107
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
I have bought this item repeatedly now.
fast delivery, piece was protected to keep the threads and output smooth and safe also. thank you for that.
School facilities
New Jersey
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Excellent Product, with slight wrinkle
The valve is well-made and I expect many years of trouble free service. However, I did have trouble when I attempted to thread it to the existing spud nipple. The threads did not fit, requiring the removal of the old nipple and the installation of the new one (comes with the valve). Careful about not damaging the threads while attempting to fasten it on the old nipple. Having to replace the spud nipple complicates the installation, of course, particularly for the do-it-yourselfer. I do note that installing the new nipple is probably advisable in most instances anyway in order to reduce the risk of leaks. (Some valve manufacturers advertise that their product often fits on existing nipples, however.)
Mike
Chicago
12 years ago
Verified Buyer
Was this review helpful to you?
