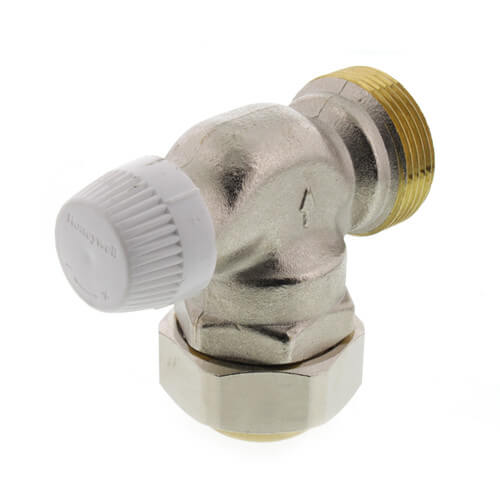

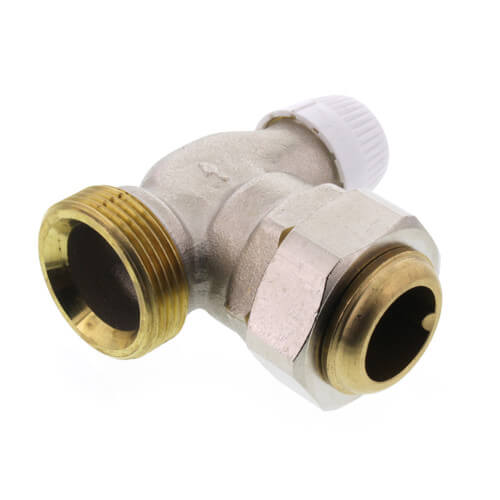

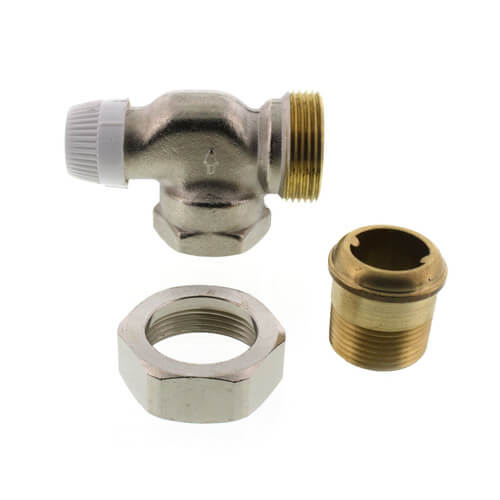

1" Horizontal Angle For Standard Capacity Radiator
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$125.93 each
In Stock
Get 3 Wed, Jul 8
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Side Mount Angle
15 (Steam), 150 (Hot Water) MAX PSI
Nickel Plated Bronze
FNPT x MNPT Union Connection
2.7 Cv
Description
–
Product Overview:
Product Features:
Product Specifications:
- One-Pipe Steam Thermostatic Radiator Valves allow automatic temperature control in one-pipe steam or hot water systems for free standing radiators, convectors and other heating units with standard capacity requirements.
Product Features:
- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems
- Nickel plated brass casted body
- Replaceable cartridge for easy service with service tool
- Controls include valve body, steam air vent
- Used with T100 set point and capillary actuators
- No electrical connection required for non-electric actuators
- Normally open without control mounted
Product Specifications:
- Description: Horizontal Angle Pattern 1 in. Valve for Standard Capacity Radiator
- Application Type: Replaces most manual valves with minimum piping changes
- Pipe Size (inch): 1 in.
- Pipe Size (DN): DN25
- Body Pattern: Horizontal Angle
- Capacity: Standard
- Capacity (Cv): 2.7 Cv
- Capacity (Btu/hr-steam): 70,500 Btu/hr
- Connection Type: Threaded
- Pressure Ratings (Hot Water): 150 psi maximum
- Pressure Ratings (Hot Water): 1034 kPa maximum
- Pressure Ratings (Steam): 15 psi maximum
- Pressure Ratings (Steam): 103 kPa
- Differential Pressure Ratings (psi): With T100 or T200 - 15 psi
- Differential Pressure Ratings (psi): With MV100 - 36 psi
- Differential Pressure Ratings (psi): For low noise -3 psi
- Differential Pressure Ratings (kPa): With T100 or T200 - 103 kPa
- Differential Pressure Ratings (kPa): With MV100 - 248 kPa
- Differential Pressure Ratings (kPa): For low noise -20 kPa
- Temperature Ratings (F): 248 F Maximum
- Temperature Ratings (C): 120 C Maximum
- Dimensions (in.): 1 7/16 in. x 2 15/16 in.
- Dimensions (mm): 37 mm x 74 mm
- Materials (Body): Nickel Plated Bronze
- Cartridge Change Tool: Yes - Use VA8200A001
- Used With: T100A, M and V controls to conform to horizontal mounting requirements
Specs
–
| Application: | Hot Water |
|---|---|
| Size: | 1" |
| Body Pattern: | Side Mount Angle |
| Max Pressure (PSI): | 15 (Steam) 150 (Hot Water) |
| Material: | Nickel Plated Bronze |
| Capacity: | Standard |
| Connection Type: | FNPT x MNPT Union |
| Flow Capacity (Cv): | 2.7 |
| Capacity (BTU): | 70500 |
| BTU: | 70500 Btu/hr (steam) |
| Position: | Normally Open |
| Temperature Range (F): | 248°F Max |
| Differential: | With MV100: 36 psi For low noise: 3 psi With T100 or T200: 15 psi |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Size
Body Pattern
Max Pressure (PSI)
Material
CURRENT ITEM
Hot Water
1"
Side Mount Angle
15 (Steam)
150 (Hot Water)
150 (Hot Water)
Nickel Plated Bronze
You May Also Need
Product Q&A
1 Question1 Question
Q: I'm interested in replacing standard (hot water system) radiator valves on the second floor of my house with thermostatic control valves to keep the temperature down in the upstairs rooms (one zone heat). Reading the manuals, it appears the controllers should not be mounted vertically, so am i correct in selecting this "horizontal angle" rather than "angle" valve?
Asked by Bill 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this unit is mounted horizontally.
