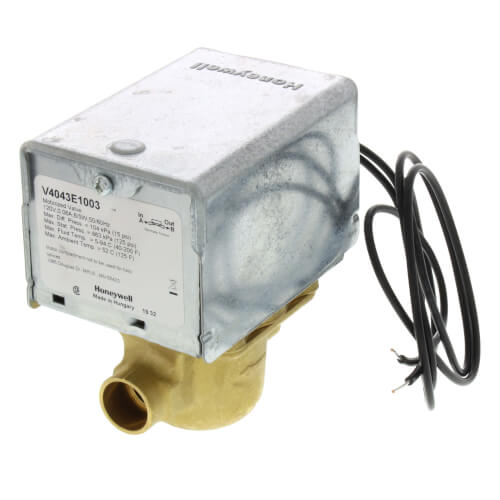

1/2" Sweat Connection Zone Valve for Steam Application, normally closed (120v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$162.03 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Sweat Connection
3.5 Cv
1/2"
120v
Normally Closed
Description
–
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Features
Specifications
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Motor may be replaced without removing the valve body or draining the system.
- Suitable for heating and cooling applications..
Specifications
- 120V 1/2 in. Sweat Connection Line Voltage Motorized Zone Valves
- Application: Steam (low pressure) Control
- Connection Type : Sweat
- Pipe Size: 1/2?
- Body Pattern: Two-way, Straight-through
- Capacity: 3.5 Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range: 40 F to 240 F
- Electrical Connections: 18 in. leads
- Power Consumption: 9.6 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4 4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
- Type: 2 position
- Static Pressure: 125 psi
- Voltage: 120 Vac
- Comments: For low pressure (15 psi) steam application.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1/2" |
| Width (Inches): | 3-1/2" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Position: | Normally Closed |
| Voltage: | 120v |
| Flow Capacity (Cv): | 3.5 |
| Wiring: | 18" Leads |
| Body Pattern: | 2-Way Straight-Through |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Power Consumption: | 9.6 VA |
| Max Temp (F): | 240°F |
| Min Temp (F): | 40°F |
| Temperature Range (F): | 40°F - 240°F |
| Connection Type: | Sweat |
| Valve Action: | Spring Return to Close |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
