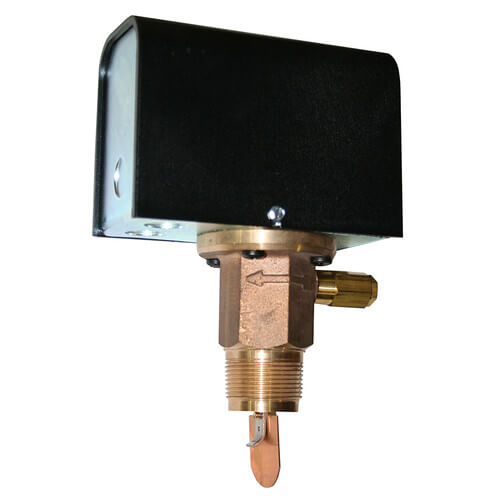

FS7-4SJ, 1-1/4" BPST General Purpose Flow Switch - Paddle Style
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
1" Connection
BPST Thread Type
7.4 Amps
120v, 240v
160 MAX PSI
Description
–
Universal design serves the widest variety of applications. For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others.
Features
Features
- Universal design serves the widest variety of large pipe applications, including heating and hydronic systems, air conditioning, refrigeration and process work
- 1-1/4"NPT
- Brass with sealed tube construction
- Single pole, double throw snap switch
- Magnetic switching mechanism eliminates need for bellows
- Sensitivity adjusting screw makes flow adjustment easy
- Paddles can be trimmed to suit application needs
- Optional features: Extended paddle arm – Model FS7-4L / Two SPDT switches to make or break two separate circuits / Stainless steel body and paddles / BSPT threads
- Minimum temperature (fluid or ambient) 32°F (0°C)
- Maximum temperature 300°F (149°C)
- Maximum operating pressure: 300 psi (21 kg/cm2) / 1000 psi (70 kg/cm2) – Stainless Steel models
Specs
–
| Size: | 1" |
|---|---|
| Connection Size: | 1" |
| Switch: | SPDT |
| Application: | Liquid Flow |
| Thread Type: | BPST |
| Type: | General Purpose |
| Amperage: | 7.4 |
| Voltage: | 120v 240v |
| Max Pressure (PSI): | 160 |
| Hertz: | 50 60 |
| Temperature Range (F): | 32°F - 300°F |
