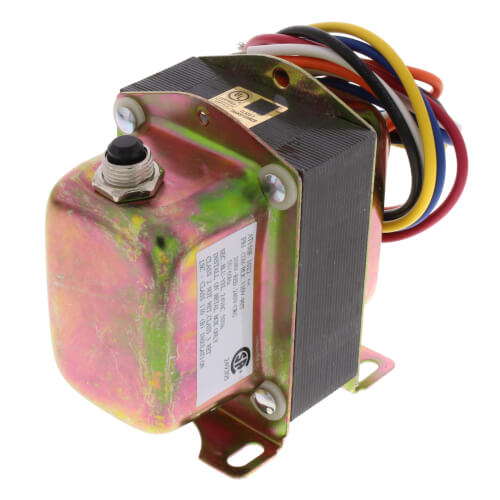

Plate or Panel Mounted 120/208/240 Vac Transformer w/ 9" Lead Wires & Metal End Bells, AT150F1022
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$57.97 each
In Stock
Get 53 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Panel, Plate
-20°F - 105°F
3-3/16"
3-5/8" Depth
Description
–
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Specifications
Features
Specifications
- Description: Plate or panel mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
- Electrical Ratings: 120 Vac, 208 Vac, 240 Vac
- Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
- Frequency: 60 Hz
- Mounting: Includes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in. knockout, and feet for surface mount.
- Electrical Connections (Primary)(in): 9 in. leadwires
- Electrical Connections (Secondary)(in.): 9 in. leadwires
- Electrical Ratings -Output: 24 Vac at 50 VA
- Dimensions: 3-3/16 in. high x 2-3/16 in. wide x 3-5/8 in. deep
- Temperature Ratings: -20 F to +105 F
- Includes: Button for manually resetting the circuit breaker and metal end bells.
Features
- Rated at 50 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specs
–
| Application: | 24v Controls |
|---|---|
| Mount: | Panel Plate |
| Voltage (Primary): | 240V 120V 208V |
| Wiring: | 9" leadwires |
| Voltage (Secondary): | 27.5 V.O.C. |
| Electrical Output: | 24 Vac at 50 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 50 |
| NEMA Rating: | None |
| Height: | 3-3/16" |
| Width: | 2-3/16" |
| Depth (Inches): | 3-5/8" |
| Features: | Metal End Bells |
