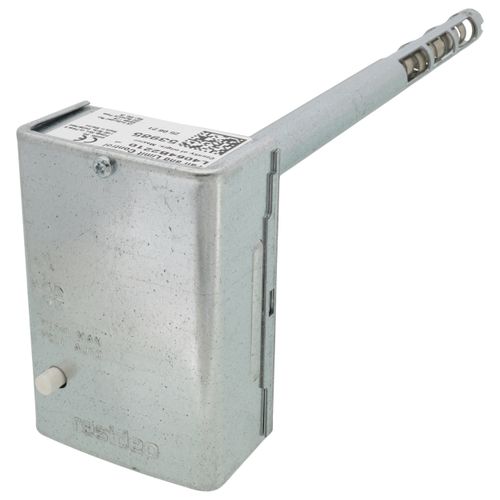

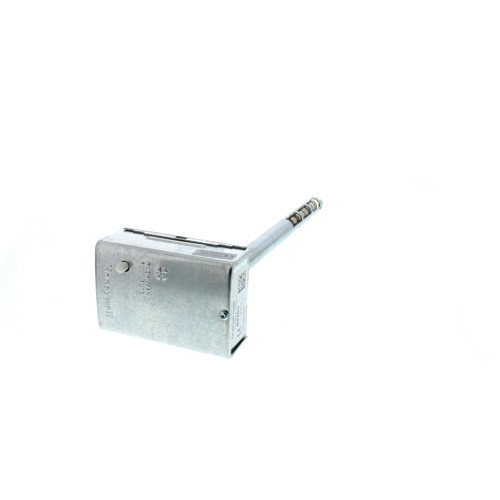

Fan and Limit Controller w/ 125 F Fan on/100 F Fan off, 200 F High Limit, 11-1/2" Insertion, L4064B2210
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$163.46 each
In Stock
Get 49 Fri, Jun 26
Order by today, receive Friday
MANUALS (2)
This item replaces: L4064B1451, L4064W1106, L4064B1592
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
100°F to 250°F
Fan switch makes on temp rise, High Limit switch breaks on temp rise
Limit (AFL): 4 A @ 240 Vac, Limit (AFL): 8A @ 120 Vac, Fan (AFL): 14A @ 120 Vac
High Limit: 25°F
Surface
1-19/32" Depth
Description
–
For control of high limit and fan motor in all types of forced air heating systems.
Features
Features
- Three wiring terminal options available for easy installation:
- Push-in receptacles for stripped wire.
- Female receptacles for 1/4 in. male flag connectors.
- Field add-on screw terminals.
- Controls adapt to many competitive mounting holes in replacement applications.
- Available in a variety of fan and high limit setting ranges.
- L4064B,W models have manual fan switch that overrides fan control to keep fan running continuously.
- SUPER TRADELINE models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse.
- Application: Forced warm air heating systems
- High Limit Temperature Range (F): 100 to 250 F
- Fan on Range: 65 to 215 F
- Fan off Range: 50 to 200 F
- High Limit Stop: 200 F
- Low Limit Stop: 100 F
- Fan on Stop: 100 F
- Switching Action: Fan switch makes and high limit switch breaks on temperature rise.
- Electrical Rating(AFL): 14 A @ 120 Vac
- Electrical Rating (AFL): 7 A @ 240 Vac
- Electrical Rating (ALR): 84 A @ 120 Vac
- Electrical Rating (ALR): 42 A @ 240 Vac
- Electrical Rating Limit (AFL): 4 A @ 240 Vac
- Electrical Rating Limit (AFL): 8 A @ 120 Vac
- Electrical Rating Limit (ALR): 24 A @ 240 Vac
- Electrical Rating Limit (ALR):48 A @ 120 Vac
- Operating Temperature Range: -40 to 190 F
- Differential Temperature: High limit 25 F
- Maximum Ambient Temperature (F): Switch: 190F; Sensing Element: 350 F
- Comments: Turns fan on and off according to plenum temperature. With helical bimetal sensing element. High limit stop set at 200F (93 C). With manual fan switch. Deluxe cover. Replaces L4064A,B,E.
Specs
–
| Application: | Fan Control Limit Control |
|---|---|
| Temperature Range (F): | 100°F to 250°F |
| Element Length: | 11-1/2" |
| Fan Off: | 50°F to 200°F |
| Fan On: | 65°F to 215°F |
| High Limit Stop: | 200°F |
| Fan-Off Stop: | 100°F |
| Fan-On Stop: | 125°F |
| Switch Action: | Fan switch makes on temp rise High Limit switch breaks on temp rise |
| Electrical Rating: | Limit (AFL): 4 A @ 240 Vac Limit (AFL): 8A @ 120 Vac Fan (AFL): 14A @ 120 Vac |
| Pilot Duty Rating: | 0.25A @ 0.25 to 12 Vdc 2A @ 24 Vac |
| Differential: | High Limit: 25°F |
| Mount: | Surface |
| Depth (Inches): | 1-19/32" |
| Width: | 3" |
| Height: | 4-9/32" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Temperature Range (F)
Element Length
Switch Action
Differential
CURRENT ITEM
Fan Control
Limit Control
Limit Control
100°F to 250°F
11-1/2"
Fan switch makes on temp rise
High Limit switch breaks on temp rise
High Limit switch breaks on temp rise
High Limit: 25°F
You May Also Need
Product Reviews
4.92 out of 39 reviews
100% would recommend this product
5 star
92%
4 star
8%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 39 reviews
Great online source for plumbing and HVAC parts!
Good amount of parts from various manufacturers to choose from. Convenient shopping and arrives in good time.
Bill
York, PA
2 months ago
Verified Buyer
Was this review helpful to you?
Very good
fast delivery, love !!!!
Johnny
ny
1 years ago
Verified Buyer
Was this review helpful to you?
The best product
Came on time
Tim
Ct usa
1 years ago
Verified Buyer
Was this review helpful to you?
Quick service and delivery
Works great
Schuppy
Greenwich
1 years ago
Verified Buyer
Was this review helpful to you?
I would buy again if need another one
Works and fits as it should
Jack
South NJ
2 years ago
Verified Buyer
Was this review helpful to you?
Typical Honeywell Control
Had a little trouble with UPS losing the original package, but SupplyHouse.com provided quick replacement. Great company to do business with.
Cosmo
Frederick, MD
2 years ago
Verified Buyer
Was this review helpful to you?
Worked as it says. Great replacement part for my Trane Heat.
Exact size and function of the original controller.
Pepe
Leominster, MA
2 years ago
Verified Buyer
Was this review helpful to you?
Great replacement control
I am a heating contractor and use this product as a replacement for defective fan limit switches. Good price compared to local supplier.
Burnerman John
Thompson, Ct.
4 years ago
Verified Buyer
Was this review helpful to you?
I am very happy with this limit controller.
Right product delivered quick and at a great price.
Mickey
Battle Creek, Mi
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy from your company again
placed in our furnace without problem.
Wil
Indiana
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Would the fan & limit control be damaged if submerged in flood water?
Asked by Me 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, water could certainly damage the unit.
Was this review helpful to you?
- Anonymous
Since it's not waterproof in any way, unless the controller was submerged for a VERY short time and allowed to dry out fully (as in, taking it apart to dry out), I would assume it would need to be replaced if submerged in flood water.
