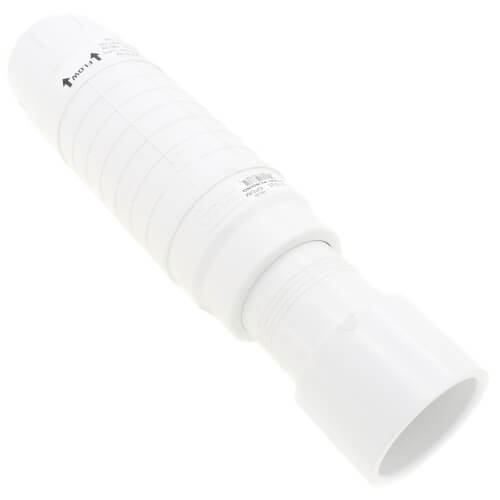

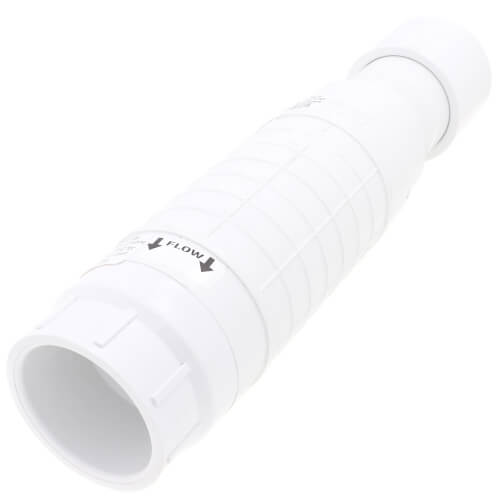

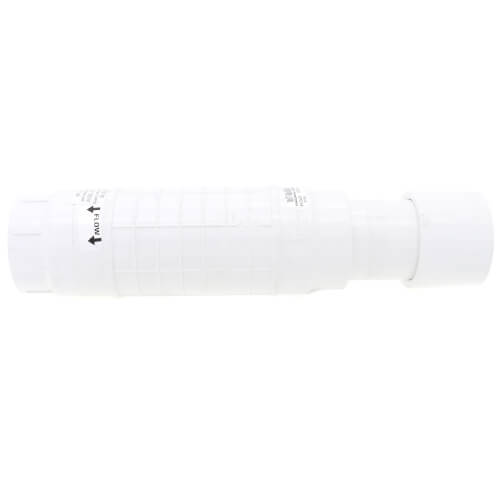

2-1/2" PVC Sch. 40 Repair Coupling (Soc x Soc - PVC White with EPDM O-ring)

• Allows Difficult Broken Pipe Repair To Be Made Easily
• Multi-function Telescoping Design
• Socket x Socket Configuration for Pipe Repair or Use as a Short-Stroke Expansion Joint
• Spigot x Socket Configuration for Replacing Damaged Fittings
• Both Configurations can be Easily Modified for Opposite Use
• Available in PVC White and PVC Gray
• Double O-ring Seal in EPDM or high-grade FKM
• 1/2" - 2" Pressure Rated to 235 PSI @ 73°F (23°C)
• 2-1/2" - 4" Pressure Rated to 200 PSI @ 73°F (23°C)
• 6" Pressure Rated to 150 PSI @ 73°F (23°C)

Spears Repair Couplings provide a variety of system repair and alteration solutions. Use Socket x Socket configurations for quick pipe damage repair - can also be used as a short-stroke expansion joint to compensate for thermal expansion & contraction. Spigot x Socket configurations are excellent for lateral and riser add-ons, damaged fitting replacement, or for installing valves in existing piping systems. Order the wrong configuration? Simply cut coupling from Socket shaft end to function as a spigot or add a coupling to Spigot shaft end for Socket connections.
