Product Highlights
–
Non-Programmable
Horizontal
Description
–

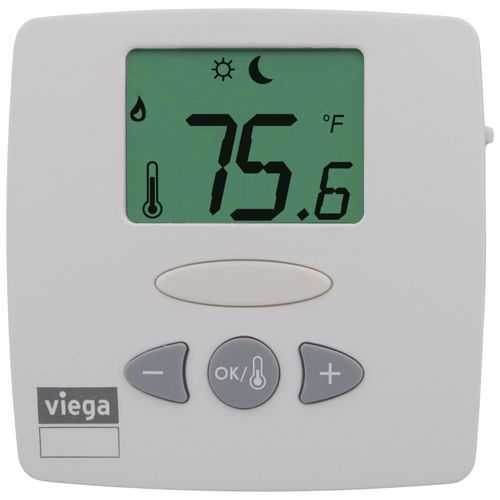

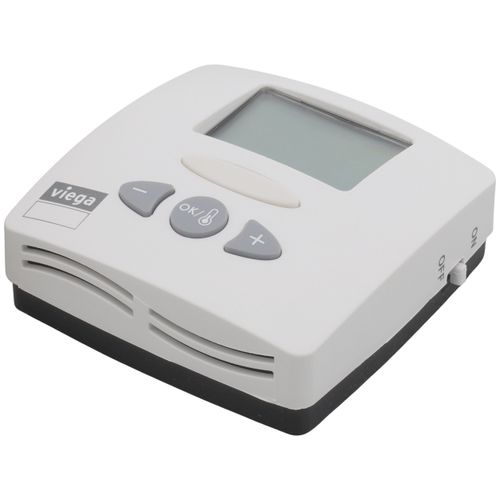

The Digital Thermostat is ideal for individual room temperature control. A user friendly three button design allows for easy change of settings. Thermostat can sense either room temperature, floor temperature or both. Adjustable temperature setback function allows for energy savings. Thermostat can control up to four Powerheads directly or can be connected to a zone / circulator control box. With optional floor sensor, thermostat provides floor high or low limit function for floor protection or floor warming.
Features:
Features:
- Compact design
- Digital LCD display
- Regulates floor or room temperature or both
- Optional Floor Sensor available, #18051 (not included)
- Setback function
Specs
–
| Application: | Heat Only |
|---|---|
| Mount: | Horizontal |
| Options: | Works with Sensor |
| Control Panel: | Digital |
| Programmability: | Non-Programmable |
| Control: | Microprocessor Control |
| User Interface: | Push Button |
| Accuracy: | 0.2°F |
| Operating Temp Range: | 41°to 99°F 0.5°F increments |
| Environment Range: | 32°-122°F |
| Power Supply: | 24V +/- 10% 60 Hz 15 W Max |
| Output: | TRIAC output 24 VAC, 15 W Max |
| Floor Limiting Range: | 50°-104°F |
| Type: | Thermostat |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.71 out of 7 reviews
100% would recommend this product
5 star
71%
4 star
29%
3 star
0%
2 star
0%
1 star
0%
Showing 1-7 of 7 reviews
Worked Perfectly
I needed a simple upgrade to some old manual Stadler radiant floor thermostats. These fit the bill and the team here went above and beyond to handle a small issue with the order. Highly recommend the product AND the seller.
Craig
New Jersey
4 years ago
Verified Buyer
Was this review helpful to you?
Great
I had the old version of these. They were not accurate and the knob was loose on 2 of 4 in our house. These being electronic are accurate and can be easily set and set back. With 2 settings easy gets easier.
PapaT
Maine
6 years ago
Verified Buyer
Was this review helpful to you?
Key component of Viega system
This digital thermostat replaced an old, problematic analog thermostat. Tech support from both Supply House and Viega resolved an installation challenge.
HammoJ
West Virginia
7 years ago
Verified Buyer
Was this review helpful to you?
Replaced Statler TS 20 thermostat
Any relationship between the setting on the Statler thermostat and the actual room temperature was purely coincidental. Several of the Statler thermostats have failed, and I have used up my spare units. Decided to replace all remaining TS 20 thermostats with Viega digital thermostats. Now I know what the room temperature is, and can start to look for any problems in the power heads, such as, did the contractor place them on the correct heating circuit.
Bruce
Otsego, MI
9 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Very nice but pricey for the features it has
I bought these to replace some failed mechanical Stadler radiant thermostats. The digital display, features and accuracy is much nicer than the now unavailable mechanical ones, but they are expensive for what you get. I knew they would replace the old ones and was not sure a generic thermostat would, so it was a safer purchase despite the price
Jeff
MA
10 years ago
Verified Buyer
Was this review helpful to you?
Good upgrade from plain knobs
OUr house was built with the earlier version standard knobs. They have no indication of current room temp or set temp. The digital upgrades are a nice feature.
AB
NJ
12 years ago
Verified Buyer
Was this review helpful to you?
Good 3 wire, poor homeowner programming
A good 3 wire themostat for radiant heat. Most are 2 wire so replacing my old one took a while to find this. It is easy to reqire. However, the programming instructions are full of engneer jargon har to understand as a layman.
JerryT
Plymouth Ca
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: I am looking at the viega 6 zone control, powerheads, and these thermostats to control heating for several greenhouses. I am also planning to use the system to control the heat of the water for my tilapia fish tanks. Is there a a temp sensor I can use with this thermostat to sense the temperature of the water? Thanks, Brian
Asked by Brian 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo there is not, most thermostat companies do not make remote sensors that are designed for use in water
Was this review helpful to you?
Q: Is there a major difference between this thermostat and Uponor 501s if I use floor sensor with each?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThere are no major differences other than that the 501 is a 4-wire unit.
Was this review helpful to you?
Q: I'd like to use this thermostat with a basic heating control setup for one room that has many windows. I have two circuits to be connected to one manifold injection station. The Viega program says using a thermostat would require the powerheads, which when closed would cause the circulator pump to deadhead. How can I control the room temperature for night setbacks or should the temp always be the same? This question has kept me from completing the installation of this system. The subfloor, tubing with panels and finished hardwood floor are completed. Just a matter of hardware connected to the hot water supply. Thank you for any input you could share. I'm bookmarking this site for future reference. Mark M
Asked by Mark M 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe idea behind radiant floor heating is to have a consistent floor temperature. Most installers do not use a setback style thermostat because you never really change the settings on the thermostat for radiant heat.
