$30.14 each
BOX UP & SAVE 4%
$288.00 box of 10
$28.80 each
In Stock
Get 52 Wed, Jun 10
Order by today, receive Wednesday
MANUALS (1)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
FNPT x FNPT Connection
Brass
Lever
No
Full Port
Description
–

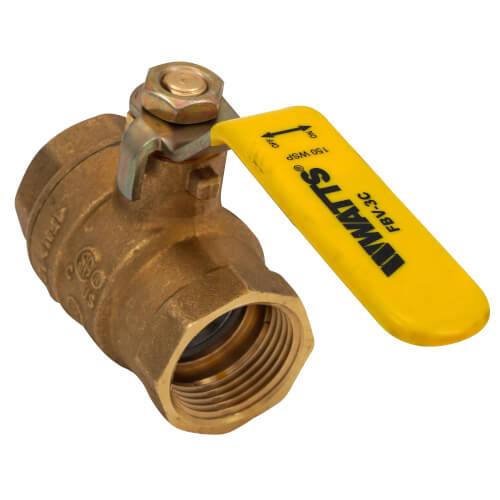

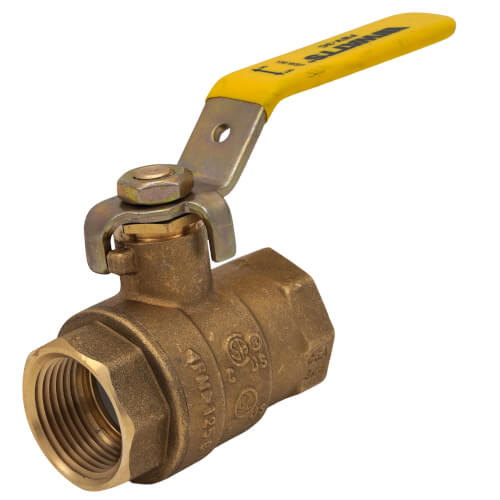

Series FBV-3C 2-piece, full port, brass ball valves are used in commercial and industrial applications for a full range of liquids and
gases. They feature a bottom-loaded blowout proof stem, virgin
PTFE seats, thrust washer, and adjustable stem packing gland, stem
packing nut, chrome plated brass ball, brass adapter, and steel
handle.
Features
Temperature
Water Temperature Range: -40ºF to 400ºF (-40ºC to 204ºC)
Features
- CSA approved threaded valves only 1/4" to 3" (15 to 80mm)
- UL/FM approved threaded valves 1/2" to 2" (15 to 50mm)
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Adjustable stem packing gland
- PTFE stem packing seal, thrust washer, and seats
- Bottom loaded blowout proof stem
- Machined chrome plated brass ball
- Valves comply to MSS-SP-110 standard
- Recommended for open/close applications
Temperature
Water Temperature Range: -40ºF to 400ºF (-40ºC to 204ºC)
Specs
–
| Size: | 1" |
|---|---|
| WOG: | 600 |
| Max Pressure (PSI): | 150 |
| Material: | Brass |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Thread Type: | Female |
| Features: | Standard |
| Handle Style: | Lever |
| Valve Construction: | 2 piece |
| Lead Free: | No |
| Port Type: | Full Port |
