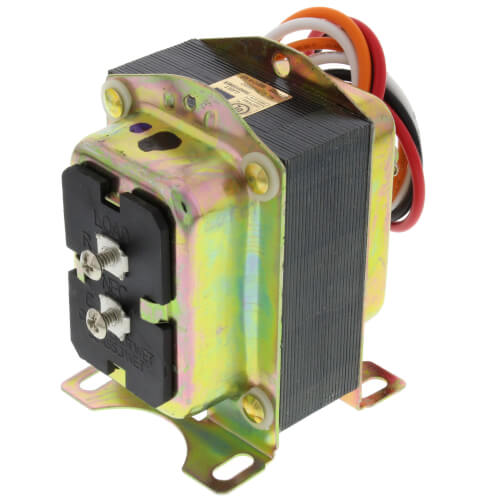

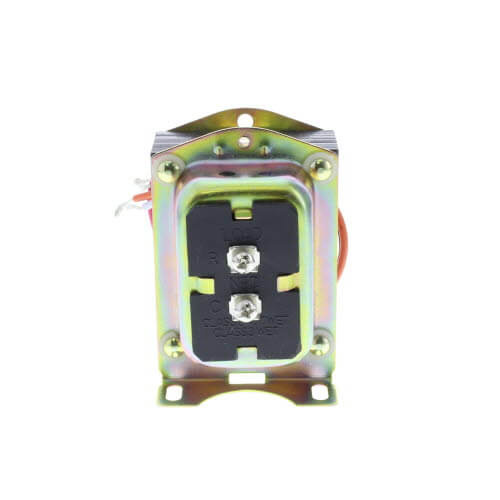

Foot Mounted, Plate Mounted, Clamp mounted or Panel Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires (50VA), AT150A1007
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$34.26 each
In Stock
Get 21 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Foot, Clamp
-20°F - 105°F
1-11/16"
1-3/4" Depth
Description
–
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Includes: Metal end bells
Features
Includes: Metal end bells
Features
- Rated at 50 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
- Description: Foot mounted, plate mounted, clamp mounted or panel mounted 120/208/240 Vac Transformer with 9 in. leadwires and metal end bells
- Electrical Ratings -Primary Voltage: 120 Vac, 208 Vac, 240 Vac
- Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
- Frequency: 60 Hz
- Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
- NEMA Rating: No
- Electrical Connections (Primary)(in.) 9 in. leadwires
- Electrical Connections (Primary)(mm): 229 mm leadwires
- Electrical Connections (Secondary)(in.): (2) screw terminals
- Electrical Connections (Secondary)(mm): (2) screw terminals
- Electrical Ratings -Output: 24 Vac at 50 VA
- Dimensions (in.): 1 11/16 in. high x 3 3/16 in. wide x 1 3/4 in. deep
- Dimensions (mm): 43 mm high x 81 mm wide x 75 mm deep
- Temperature Ratings (F): -20 F to +105 F
- Temperature Ratings (C): -29 C to +41 C
- Approvals, Underwriters Laboratories Inc UL
- Listed: A,C,F models. File # E14881
- Approvals, Canadian Standards Association CSA Certified: A & B models.
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 240V 120V 208V |
| Voltage (Secondary): | 27.5 V.O.C. |
| Mount: | Plate Foot Clamp |
| VA Rating: | 50 |
| Width: | 3-3/16" |
| Height: | 1-11/16" |
| Depth (Inches): | 1-3/4" |
| Wiring: | 9" leadwires 2 Screw Terminals |
| Electrical Output: | 24 Vac at 50 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| NEMA Rating: | None |
| Features: | Metal End Bells |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage (Primary)
Voltage (Secondary)
Mount
VA Rating
CURRENT ITEM
240V
120V
208V
120V
208V
27.5 V.O.C.
Plate
Foot
Clamp
Foot
Clamp
50
You May Also Need
Product Reviews
3.4 out of 5 reviews
60% would recommend this product
5 star
40%
4 star
20%
3 star
0%
2 star
20%
1 star
20%
Showing 1-5 of 5 reviews
I would buy this product again
Exact replacement for my three zone boiler. It works smoothly.
D. J
Bellmore NY
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy it again
Used the transformer to get my mixing valve back online, got a spare just incase. Been a month haven't had any issues.
Resident Manager
New York
6 years ago
Verified Buyer
Was this review helpful to you?
Used several hundred Work Great
Used in all our systems. Used well over 300 of these units. Work great when you wire them correctly. The black wire is the Common and that trips people up expecting the white wire to be common.
Don
Lansing MI
9 years ago
Was this review helpful to you?
Quality of the Transformer
First part I put into use, lasted 5 minutes. Failure investigation yielded that the Black lead was open. Upon dismantling the transformer, I found that the Black wire solder joint, had burned through the transformer winding. winding wire may have had a damage during stripping of the enamel, and burned through when current was applied.
2nd unit is working fine so far.
I think, these units should have been through stress tested.
Vish
95035
10 years ago
Verified Buyer
Was this review helpful to you?
fizzled and burnt out
Purchased this product along with new zone valves and boiler. Installed and at powering up unit started to fizzle and there was no secondary voltage output. Could not return because packaging was discarded and wasn't worth the bother.
Hank
Middletown, NY
13 years ago
Was this review helpful to you?
