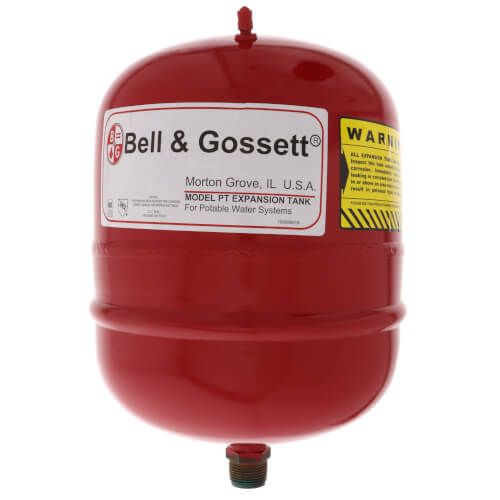

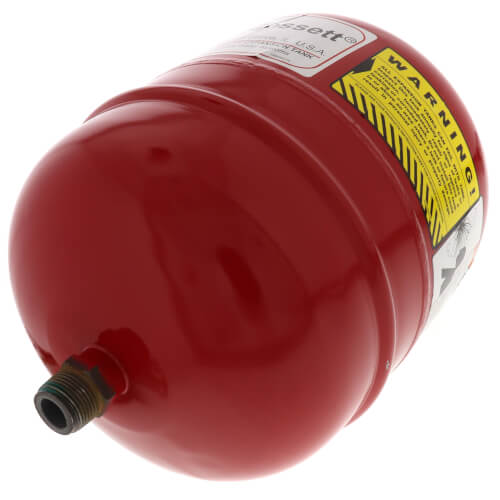

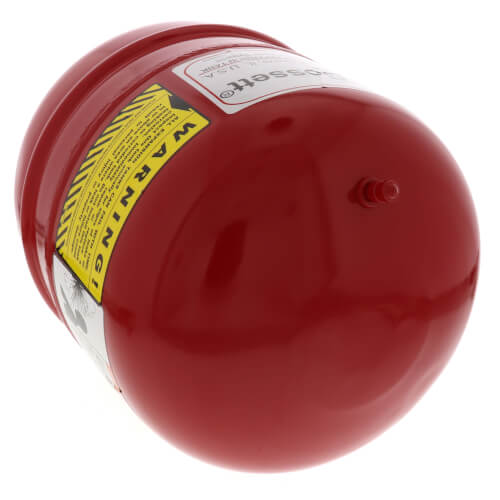

PT-5, 2 Gallon Non-ASME Expansion Tank (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
1BN317LF has been discontinued
Discontinued January 4, 2022
This product was discontinued by the manufacturer.
Tank Volume:
2 Gallons
MANUALS (4)
This item replaces: 1BN317
Product Highlights
–
2 Gallons
3/4" Connection
Threaded Connection
8" Diameter
12-5/8"
Male Thread Type
Description
–
The Series HFT tank is designed to absorb the force of thermal expansion of heating water and to maintain proper pressurization in a closed hydronic system. The heavy duty butyl diaphragm separates system water from the air in the tank preventing water logging problems
Features:
Features:
- Residential and light commercial applications
- Helps prevent excessive pressures in heating systems
- Increases system performance
- Reduces oxygen corrosion
- Prevents waterlogging
- In-line and floor mount installation
- Max. operating temp 240°F
- Max. working pressure of 100 psi
Specs
–
| Tank Volume: | 2 Gallons |
|---|---|
| Connection Type: | Threaded |
| Max Accepted Volume: | 0.9 Gallons |
| Application: | Heating |
| Max. Working Pressure: | 150 psi |
| Max Operating Temp: | 200°F |
| Weight (lbs): | 5 lbs |
| Diameter (Inches): | 8" |
| Shell Material: | Carbon Steel |
| Height: | 12-5/8" |
| Diaphragm Material: | Butyl |
| Connection Size: | 3/4" |
| Precharged PSI: | 38 psi |
| Thread Type: | Male |
| Series: | PT |
