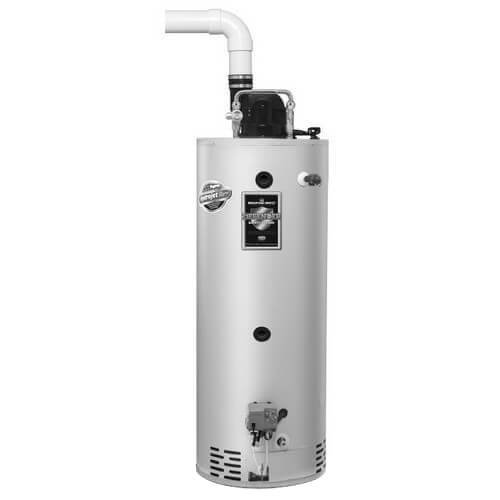

72 Gallon - 76,000 BTU Combi2 TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)

Hover image to zoom

Home

Plumbing Supplies

Water Heaters

Residential Water Heaters

Bradford White Residential Water Heaters

Bradford White Residential Gas Water Heaters

Bradford White TTW1/TTW2 Through-The-Wall Water Heaters

72 Gallon - 76,000 BTU Combi2 TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)

Name: 72 Gallon - 76,000 BTU Combi2 TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)
Brand: Bradford White
SKU: C-DW2-TW75T10BN
Price: 5216.67 USD
Availability: OutOfStock

Brand:

Bradford White

SKU:

C-DW2-TW75T10BN

Rating:

(0)

Q&A:

(0)

Hover image to zoom

$5,216.67 each

Backorder

Get it Thu, May 29 - Mon, Jun 30

MANUALS (6)

Product Overview

Install Instructions

Install Instructions for IMD

Install Instructions for Heating

Replacement Parts List

Warranty Info

Product Overview

Install Instructions

Install Instructions for IMD

Install Instructions for Heating

Replacement Parts List

Warranty Info

Replacement Parts

View All

Lift Gate

–

This product weighs 348 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.

Free Shipping This item ships free

Easy Returns No restocking fee for 90 days

Product Highlights

–

Natural Gas

Power Vent

10 Year Limited Tank/6-Year Limited on Component Parts Warranty

72 Gallons

68.375" Height

Description

–

Note: This unit cannot function using the back up electric heating element only. The unit must be installed as designed, without sole connection to backup elements.

Features

Internal Single Wall Heat Exchanger - 1-1/2" O.D. glass coated (Vitraglas) steel coil.
- - 3/4" NPT Solar Collector Supply and Return Connections
Low Heat Exchanger Head Loss - Up to 8 GPM flow, with less than 6 ft. of head loss. Greatly reduces the required pump size for heat exchange.
Integrated Mixing Device - Features an accurate, easy to use hand wheel for adjusting mixed water temperature, a pre-piped stainless steel flexible connector for quick installation as well as optional water connections (1/2" NPT recirculation inlet, 1/2" NPT hot water outlet, 1/4" NPT cold water outlet). This required system is easily installed and ensures a comfortable outlet temperature while providing a steady flow of hot water.
Honeywell Self Diagnostic Electronic Gas Control - Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot. This results in savings of pilot gas during stand by periods (120 V.A.C.).
- Enhanced Performance - Proprietary algorithms provide enhanced First Hour Delivery ratings and tighter temperature differentials.
- Advanced Temperature Control System
- Microprocessor constantly monitors and controls burner operation to maintain accurate water temperature levels.
- Intelligent Diagnostics - An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting.
Factory installed Hydrojet 2 Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build up in tank. Increases first hour delivery and minimizing temperature build up in tank.
Vitraglas Lining - Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas) is fused to the steel surface by firing at a temperature of over 1600°F (871°C).
Horizontal and Vertical Venting - With 3" or 4" PVC, ABS OR CPVC (Maximum equivalent vent lengths on reverse side).
2" Non-CFC Foam Insulation - Covers the sides and top of tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies and jacket rigidity.
Pedestal Base.
Water Connections - 3/4" NPT factory installed true dielectric fittings.
Two Protective Anode Rods.
T&P Relief Valve - Installed.
Low Restriction Brass Drain Valve - Durable tamper proof design.

Specs

–

Intended Household:	5+ Person
Fuel Type:	Natural Gas
Capacity (Gallons):	72
BTU Input:	76000
Vent Type:	Power Vent
Height (Inches):	68.375"
Diameter (Inches):	26"
Depth (Inches):	31"
Weight (lbs):	313 lbs
Warranty:	10 Year Limited Tank/6-Year Limited on Component Parts
Water Connection:	3/4"
Gas Connection:	1/2"
Vent Size:	3" 4"
Recovery Efficiency:	80%
Energy Factor:	.64
Energy Star Rated:	No
