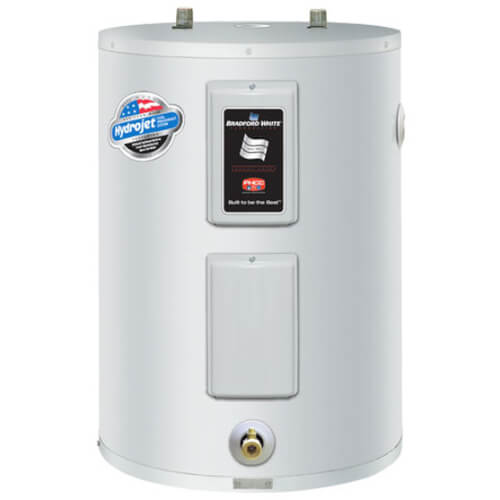

Main product image of 28 Gallon - Lowboy Energy Saver Electric Residential Water Heater, 480V

Hover image to zoom

28 Gallon - Lowboy Energy Saver Electric Residential Water Heater, 480V

Name: 28 Gallon - Lowboy Energy Saver Electric Residential Water Heater, 480V
Brand: Bradford White
SKU: RE230L6-1NHWW
Price: 976.73 USD
Availability: OutOfStock

Brand:

Bradford White

SKU:

RE230L6-1NHWW

Rating:

(0)

Q&A:

(0)

28 Gallon - Lowboy Energy Saver Electric Residential Water Heater, 480V

Hover image to zoom

RE230L6-1NHWW has been discontinued

Discontinued September 21, 2023

This product was discontinued by the manufacturer.

MANUALS (8)

Replacement Parts List

Replacement Parts List

Warranty Info

Replacement Parts

View All

Direct Replacement:

30 Gallon ENJ-30 ProLine Residential Electric Water Heater w/Side Connections - Lowboy (1PH, 4.5kW, 240V)

Brand:

AO Smith

SKU:ENJ-30

(1)

VIEW REPLACEMENT

Product Highlights

–

Electric

6 Year Limited Tank/ 6 Year Limited on Component Parts Warranty

28 Gallons

30.75" Height

22" Diameter

Description

–

The Lowboy Electric Models Feature:

DOE—All residential storage models above 20 gallon capacity meet or exceed efficiency requirements of the Department of Energy, ASHRAE Standard 90.1 b (current standard) and the National Appliance Energy Conservation Act of 1987 recent amendment effective April 16, 2015 which supercedes all state and local efficiency requirements.
Applications - Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter.
Fully Automatic Controls - Fast acting surface-mount thermostats for automatic temperature control. Factory-installed sensitive manual reset energy cut-off for safety to prevent overheating.
Direct Heat Transfer with Immersed Elements - Transfers heat directly and efficiently to the water. Screw-in style.
Factory-Installed Hydrojet Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build-up in tank. Increases first hour delivery of hot water while minimizing temperature build-up in tank.
Vitraglas Lining - Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas) is fused to the steel surface by firing at a temperature of over 1600°F (871°C).
Non-CFC Foam Insulation—Covers the sides and top of the tank, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies, and jacket rigidity.
Water Connections - 3/4" NPT factory-installed true dielectric fittings extend water heater life and ease installation.
Factory-Installed Heat Traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation. (Except for RE120L).
Protective Magnesium Anode Rod - Provides added protection against corrosion for long trouble-free service.
Simultaneous and Non-Simultaneous Operation Available - Simultaneous operation indicates when both elements (if equipped) are being heated at the same time. Non-Simultaneous operation indicates when one element is being heated at a time.
Voltages Available - 120V, 208V, 240V, 277V, 480V.
Single Phase or Three Phase Operation Available - 120V & 277V may only be wired for single phase operation.
T&P Relief Valve - Installed, side T&P is standard. Optional top T&P location is available.
Design evaluated by ETL in accordance with Part 280.707(d) of HUD Mobile Home Construction and Safety Standards for Energy Efficiency

Specs

–

Intended Household:	2 Person
Capacity (Gallons):	28
Fuel Type:	Electric
Voltage:	480V
1st Hour Delivery (Gallons):	45
Height (Inches):	30.75"
Diameter (Inches):	22"
Weight (lbs):	129 lbs
Energy Factor:	0.95
Energy Star Rated:	No
Water Connection:	3/4"
Electric Connection:	3/4"
Test Pressure (PSI):	300 psi
Working Pressure (PSI):	150 psi
Warranty:	6 Year Limited Tank/ 6 Year Limited on Component Parts
