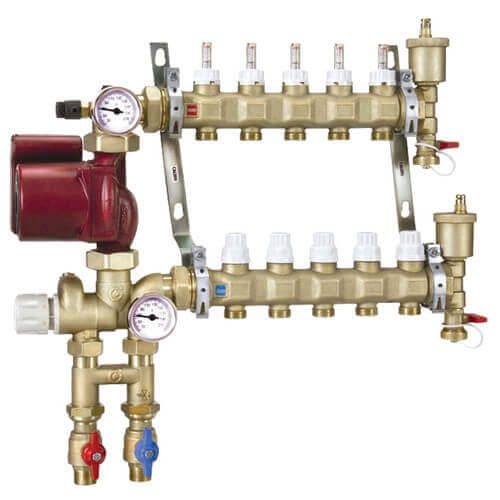

Fixed Point Manifold Mixing Station w/ UPS15-58FC Pump, Inverted (12 Loops)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,793.78 each
Backorder
Get it Thu, Jul 30 - Thu, Aug 27
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
Description
–
Overview
- Thermostatic fixed point mixing.
- Pre-assembled manifold mixing station consisting of a supply distribution manifold complete with built-in sight flow gauges and adjustable balancing valves.
- Return manifold with built-in shut-off valves is suitable for thermo-electric actuators.
- Complete with built-in sensor to keep flow temperature at constant set value.
- Includes Grundfos UPS 15-58 three-speed pump.
- 3/4"F NPT supply/return ball valves.
- Max working pressure: 150 psi
- Control temp range: 80° - 130°F
- Primary inlet max temp: 195°F
- Outlet center distance: 2"
Specs
–
| Number of Loops: | 13 |
|---|---|
| Max Pressure (PSI): | 150 |
| Max Inlet Water Temp (F): | 195°F |
| Control Temp Range (F): | 80 to 130°F |
| Includes: | Grundfos 15-58 3-Speed Pump |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.83 out of 6 reviews
100% would recommend this product
5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-6 of 6 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy the product again
The complete assembly with the circ pump and mixing valve is very expensive. It's convenient and saves time. You can buy the parts and duplicate what's being sold here for half the cost if you have the time.
Flat top
York pa
1 years ago
Verified Buyer
Was this review helpful to you?
I would purchase this produce again, and recommend to others
The fixed-point manifold mixing station w/ups15-58fc pump- 6 outlets is a fantastic item. I did have a challenge putting on the thermal actuator on the supply outlet that is next to the pump. The actuator at first would not sit correctly and the system was not working correctly, but after taking it off and really forcing it on in position the unit is working correctly.
luxury
Long Island, NY
2 years ago
Verified Buyer
Was this review helpful to you?
Would higly recommend
Made ny project so much quicker and alloud for room in a right closet
Al
Ct
2 years ago
Was this review helpful to you?
Awesome upgrade
The innovative manifold saved me so much time on the job. Assembly was easy and it made my piping so much cleaner and organized by only having to attach my supply and return loop.
Bryan
Erie, PA
3 years ago
Verified Buyer
Was this review helpful to you?
Great quality product
Great quality, super easy install and easy to adjust flow rates.
JTdiode
Glenside PA
6 years ago
Verified Buyer
Was this review helpful to you?
Inverted Caleffi is great!
Awesome manifold
Also Caleffi engineering dept was very helpful!
Chris
Long Island NY
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
6 Questions6 Questions
Q: which actuator can i use with this manifold also are they like a regular zone valve with end switch to kick on pump and boiler 4 wire?
Asked by eddie 9 years ago
Add your answer
Verified Reply- SupplyHouse Staff656304 and 656404 are two wire options, 656314 and 656414 are the 4 wire. Yes, they are just like a zone valve.
Was this review helpful to you?
Q: Where are these made?
Asked by Mike 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe manifolds are Italian, the pumps are made by Grundfos which is a Danish company.
Was this review helpful to you?
Q: Does the manifold come with the Fittings to connect 1/2" pexs?
Asked by John 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, they must be purchased separately. The 1/2" Pex fitting assemblies are part 680504A.
Was this review helpful to you?
Q: Can I use actuator in this manifold system?
Asked by jose 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, actuators can be used with the mixing stations.
Was this review helpful to you?
Q: Can the air bleeders be flipped around so I can have the loop connections facing up? I am going to have the loops coming from the joists above and I would like to come into the top so it looks clean. Otherwise I will come out of it with copper pipe to above and connect the loops to that. It looks like it comes apart and can be changed. Just not sure if it will effect the adjustment valves.
Asked by Robbie 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo, they can not. The manifolds can not be turned upside down.
Was this review helpful to you?
Q: Can I mount this horizontally on a ceiling and have all air bleeders function properly?
Asked by Scott 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno it wont, bleeders need to be upright
Was this review helpful to you?
