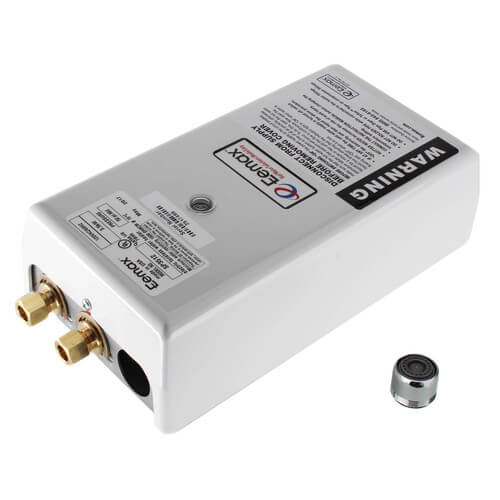

SP3512 Single Point Electric Tankless Water Heater w/ Top Connections
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
- Volts: 120V
- kW: 3.5kW
- Amps: 29A
- Temp Rise F at .5 GPM: 48 Degrees
- Recommended Wire Size: 10AWG
Features
- Compact "point of use" design
- Designed or smaller applications such as bathroom sinks
- Cold water feed only
- On demand hot water - no delay
- Easy installation - only one cold water line needs to be brought to lavatory
- Easy plumbing - no sweat joints, 3/8" compression fittings factory fitted, mount directly next to point of use on wall
- 99% efficient
Specs
| Fuel Type: | Electric |
|---|---|
| Application: | 1 Sink |
| Width: | 5-1/4" |
| Height (Inches): | 10.75" |
| Flow Rate: | 0.5-0.7 GPM |
| Min Flow (GPM): | 0.5 |
| Max Flow (GPM): | 0.7 |
| Voltage: | 120v |
| Depth (Inches): | 2-7/8" |
| Amps (120V): | 29 |
| KW (120V): | 3.5 |
| Warranty: | 5 Year Against Leaks/1 Year on Parts & Electrical Components |
| Width (Inches): | 5-1/4" |
| Efficiency: | 99% |
| Water Connection: | 3/8" |
| Temperature Range (F): | 105°F - 110°F |
Questions?
You May Also Need
5 Replacement Parts
Need help finding a replacement part?
Product Reviews
Always Great Service!!!
replaced a failed unit
Works really well
Ideal for Office Bathrooms and Sinks
very please with the service and the uni
Good product
Product Q&A
4 QuestionsQ: The specifications says it draws 29 Amps. What if I have only a 20 Amp circuit. Will it still work? At a reduced capacity......?
Asked by Terrible Tom 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, this unit will require a circuit which carries at least the required 29 Amps of service. Using this with a circuit with less capacity will trip the home's circuit breaker and can cause damage to the unit.
Q: can you use this in a rv?
Asked by j 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can, provided that you have proper electrical power and sufficient water pressure.
sure but its only hot at a slow trickle of water. regular water flow is luke warm but better than nothing.. this is 120 volt btw. so you need to plug in. or run inverter.
I think so. Steve Lavalette H2O Services, LLC
To be honest, I have never installed one in anything other than a building. In my opinion, I don't see why not. As long as you have the power source and the available amperage.
Yes you could. You'd have to buy a 120v unit and make sure you have the proper amperage wire and breaker feeding the unit. Another thing to watch is too high of flow rate. An RV usually has a pretty low flow rate from the pump but city hook ups may need to be dialed down at the output valve.
Q: can you adjust the tempiture down?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe temperature cannot go higher than 110 °F. In order to decrease the temperature, you would need to use a mixing valve.
Q: what is the electrical draw for this unit ??/
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe electrical draw is: 3.5 kw, 29 amps, and 120 volts.
