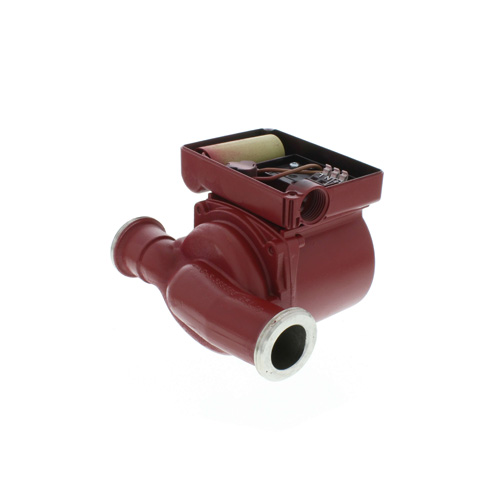

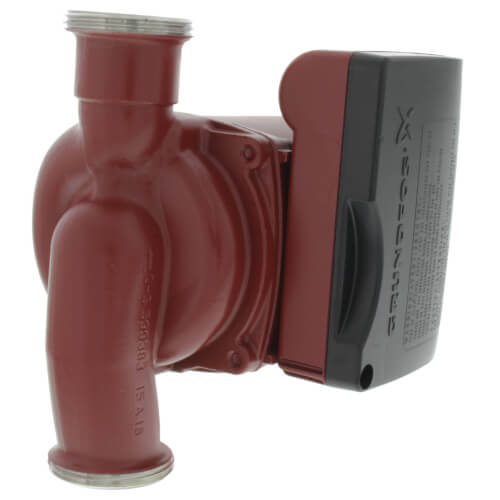

UP15-29SU Circulator Pump, 1/12 HP, 115V Union Connection
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
The Grundfos UP15-29SU circulator pump provides you with the perfect solution for your instant hot water system. It features a wet rotor design that brings quiet, maintenance-free performance plus durable, corrosion-free materials for long-term use. This Grundfos circulator pump is well-known for being easy to install and user-friendly.
- Rubber gaskets included
- 115 Volts
- 1/12 Horsepower
- Pump Connection: Union Connection: 3/4" NPT, 1/2" & 3/4" Sweat
Standard Union connections available:
Union connections with Checks available:
Specs
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Amperage: | 0.75 |
| Poles: | 2 |
| Material: | Stainless Steel |
| Mount: | In-Line |
| Application: | Heating |
| Voltage: | 115V |
| Connection Type: | Union |
| Connection Size: | 1/2" 3/4" |
| Max Pressure (PSI): | 145 |
| Type: | 1-Speed Pump |
| Horse Power: | 1/12 |
| Max Flow (GPM): | 20.5 |
| Flow Range (GPM): | 0-20.5 |
| Head Range (ft.): | 0-9.7 |
| Max Head (Ft): | 9.7 |
| Hertz: | 60 |
| Phase: | 1 |
| Temperature Range (F): | 36°F - 230°F |
| Replaces: | 59896127 (UP15-18SU) |
Questions?
Compare Similar Products
You May Also Need
4 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Just what the doctor ordered
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would not buy this product again.
Replacing our existing recirc pump that has become noisy
Loving my recirc pump
GREAT PUMP
Good brand and good pricing.
Excellent company and product!
Solid Product at Good Price
Great Pump for my HW recirc needs
Yes
Perfect replacement
Pump worked perfectly and quietly
Product Q&A
11 QuestionsQ: Can this pump be installed vertically or horizontally?
Asked by Neisha 4 years ago
Add your answer
Verified Reply- SupplyHouseHi Neisha! Yes, this can be mounted both vertically and horizontally.
Q: Can this pump be used with a passive hot water recirculating system?
Asked by AudioHTIT 11 years ago
Add your answer
That would be the opposite of "passive" however if you wish to have both a pump and the option of a passive system you could simply bypass the pump using valves allowing you to re-route the flow. I don't know what the resistance of the pump is when it isn't running. Benjamin Straub Facility Manager, Canoe Island French Camp PO BOX 370 ORCAS WA 98280
Yes it would work depending on the flow of gallons per minute you require. It might also depend if you have a closed or open system and the height of the panels. I use it with a hot water heater and pex pipe in basement walls. I got the stainless steel because the cast iron pumps I had started rusting.
The simple answer is YES. I have a standard house setup, ie; water heater, with a supplemental solar system. Michael Carle
Q: Is there a dimensional sheet available for this pump?
Asked by Rob 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes, its on the sheet linked below: http://s3.supplyhouse.com/product_files/59896775-grundfos-up15-29su.pdf
Q: does my UP15-29SU pump have a check valve built into it?
Asked by Pat 11 years ago
Add your answer
The pump does not have a built in check valve. You will need to place a check valve in line with the pump just up stream.
Q: I have the UP 15-18 SU pump part # 59896127and I am told the 5996775 is the replacement unit for this pump. But the connections look totally different. Will this unit hook up without all new plumbing connections?
Asked by Bob 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it should. They both are Stainless Union Connections GU125. You just need to know what size and if it's solder or NPT.
Yes it should work if you don't have any leaks.
No. Will need some new connections, but try another pump.
Q: The pump I have know is Type UP 15-18SU, 115V 1PH 60Hz, P/N 59896127, PC 0151. Will the UP15-29SU be the same.
Asked by Bill 14 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, these pumps are different. The UP15-18SU is obsolete and its replacement is the UP15-29SU. Dimensionally they will fit in the same piping arrangement.
I needed to find a replacement for that same pump. I used this pump and although it looks slightly different, I found the performance to be exactly the same.
Yes these pumps are face-to-face replacements. However I have a problem. I ordered new valve/unions to replace the old ones which were badly corroded and non-functional for years. The new valve/unions were OK on the pump end but the flare fitting end did not match the old. The diameters appear the same but the threads/inch do not match. The new valves P/N is 59896775. A problem for me because the stupid plumber did not leave sufficient pipe protruding from the wall for me to cut and put the new flare nut and ferrule on. This may not apply to your situation-- good luck. TV
yeah the UP15-29SU will work, should be 10 microfarad capacitor with flows to 12 gpm VOLTAGE: 115V make sure you mount it the right way.
After speaking with tech support at Grundfos, the 15-29 is an exact replacement to the 15-18 all the way down to the same flange size. If you'd like more information from Grundfos their # is***.****
Q: Can you tell me the power requirements of this pump while running a constant flow of 4 GPM of Water. Answer in a range of Amps or Watts please.
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe power requirements for this pump while running a constant flow of 4 GPM of Water is 87 watts and .75 in amps.
Q: Will this replace a Bell & Gossett NBF-22U? If not, what will? Thanks
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe NBF-22U pump ( http://www.pexsupply.com/Bell-Gossett-103255-1-25-HP-NBF-22U-Bronze-Circulator-Pump-8641000-p ) is still available. Any other stainless steel, union connection pump that meets your system's GPM and head pressure requirements should be able to replace it.
Q: Does this pump have the same length (5 7/8") as the pump it replaces (UP15-18SU)? and do you sell the 24 hour timer for this pump? Cost Please?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe flange-to-flange measurement is 5 14/16". The timer is available here: http://www.pexsupply.com/Grundfos-505474-Grundfos-24-HR-Programmable-Clock-Timer
Q: I have a 20 year+ Grundfos pump Type UM25-18SU (1650 RPM) which gets very hot when in use (solar water ?heater). I believe this model has been discontinued. Do you have a suggestion for a replacement model
Asked by Chuck 16 years ago
Add your answer
Verified Reply- PexSupply StaffGrundfos did confirm that this is the replacement model for the UM25-18SU.
