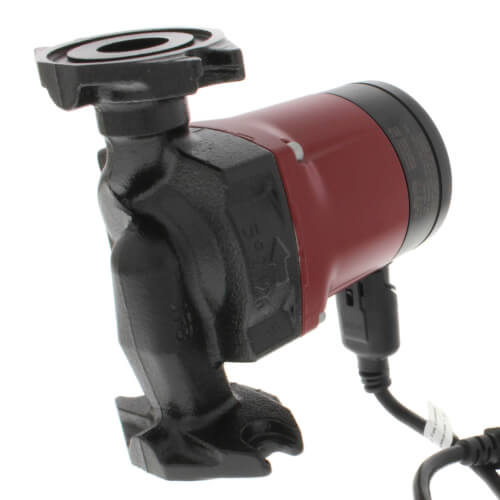

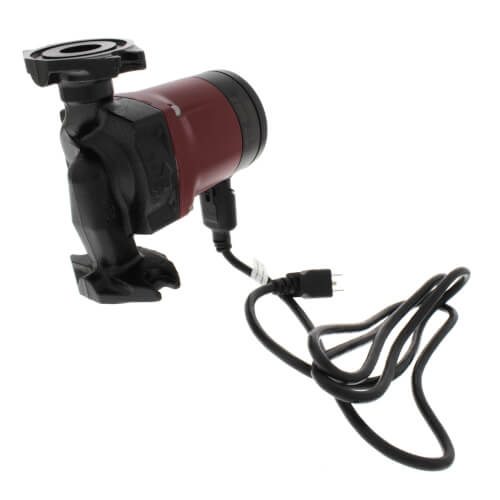

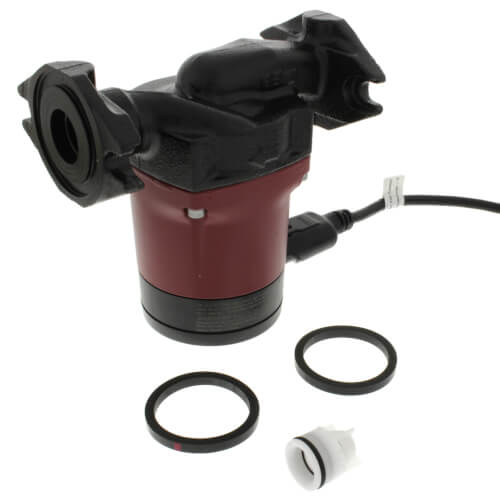

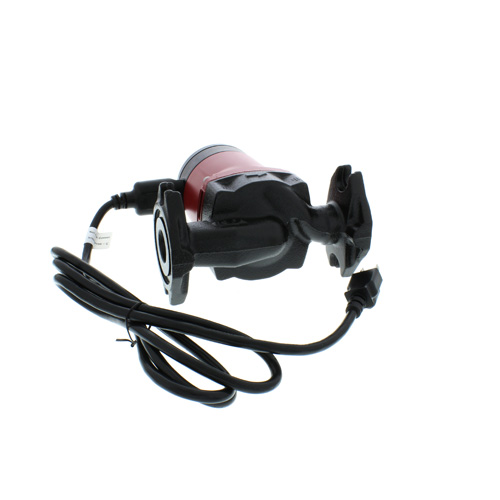

ALPHA2 15-55F/LC Cast Iron Circulator Pump (w/ Line Cord)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
99163906 has been discontinued
Discontinued November 30, 2024
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces:Â 59896832
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
ALPHA 15-58F Smart ECM High Efficiency Circulator Pump with Optimized Setpoint Control
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
115V
1/12 HP
Flanged x Flanged Connection
21 MAX GPM
150 MAX PSI
Cast Iron
Description
–
Grundfos is proud to introduce the next generation of energy efficient circulators - the Grundfos ALPHA. By incorporating a permanent magnet motor design, power consumption is now reduced by 50%. The Grundfos ALPHA adapts to the variable demands of the system without sacrificing comfort. Using the AUTOADAPT feature, the Grundfos ALPHA will analyze
the system and adjust to meet your heating demands.
Note: Flange Connection: GF 15/26
Features:
Note: Flange Connection: GF 15/26
Features:
- AUTOADAPT measures system changes automatically and maximizes energy savings
- Easy-to-use operation
- Select a mode with the touch of a button
- Easy-to-read LED display shows flow indication and power consumption
- Simple plug connections
- No wiring required
Specs
–
| Application: | Zoning |
|---|---|
| Material: | Cast Iron |
| Horse Power: | 1/12 |
| Max Flow (GPM): | 21 |
| Flow Range (GPM): | 0-21 |
| Max Head (Ft): | 19 |
| Head Range (ft.): | 0-19 |
| Min Temp (F): | 36°F |
| Max Temp (F): | 230°F |
| Max Pressure (PSI): | 150 |
| Phase: | 1 |
| Voltage: | 115V |
| Amperage: | 0.65 |
| Type: | Var. Speed Pump |
| Frequency: | 60 Hz |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 3/4", 1", 1-1/4", 1-1/2" |
