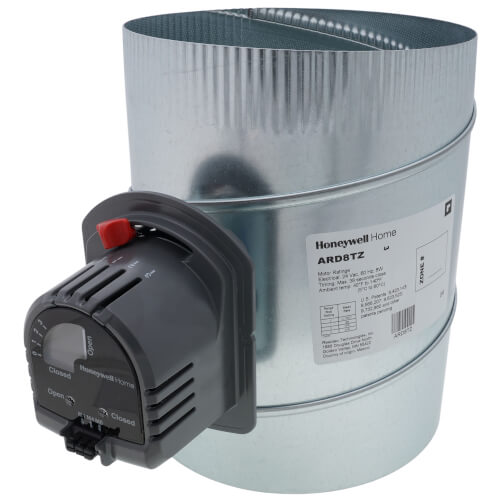

8" Round Automatic TrueZONE Damper
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.91 each
In Stock
Get 84 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (6)
This item replaces: ARD8
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8"
Round
24V
5 Year Warranty
Galvanized Steel
Description
–
Honeywell Automatic Round Damper power-close, spring-open models ensure low leakage while controlling circulating air in heating, cooling and ventilation systems.
- Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
- Can be field-converted when used as an independent zone or for fresh air intake
- Rated to operate up to 1-inch wc
- Available in 5- to 10-inch, 12-, 14-, 16-, and 18-inch diameter sizes
Specs
–
| Warranty: | 5 Year |
|---|---|
| Size: | 8" |
| Material: | Galvanized Steel |
| Application: | Air Quality |
| Voltage: | 24V |
| Motor: | Power Closed Spring Open Reversible |
| Motor Mount: | Side Top |
| Motor Timing: | 30 Seconds Power Closed 10 seconds Spring Return |
| Shape: | Round |
| Wires to Motor: | 2 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Application
Voltage
Motor
Shape
CURRENT ITEM
8"
Air Quality
24V
Power Closed
Spring Open
Reversible
Spring Open
Reversible
Round
You May Also Need
Product Reviews
4.9 out of 10 reviews
100% would recommend this product
5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 10 reviews
Great Product…Great Service
Product is perfect…price and shipping speed were exceptional!
Clank
CT
4 years ago
Was this review helpful to you?
GREAT PRODUCT
GREAT PRODUCT. RELIABLE
JP
TEXAS
4 years ago
Verified Buyer
Was this review helpful to you?
Does what it's supposed to.
Worked well, clean installation. Seems like a quality product.
Josh
Ca
6 years ago
Verified Buyer
Was this review helpful to you?
Excellent. Very robust
Added a 4th zone to my system. This unit is very strong and well built.
Rick
Fort Worth, Tx
7 years ago
Verified Buyer
Was this review helpful to you?
Easy to offer from
Cheaper than are local honeywell's supplier
Marc
Mia fl
7 years ago
Verified Buyer
Was this review helpful to you?
Great Service
excellent products, fast service... Great work!
Terry
Costa Mesa, CA
8 years ago
Verified Buyer
Was this review helpful to you?
ARD8TZ Automatic TrueZone Honeywell
Electrically controlled damper, easy setup for extra control on a room that gets ether too hot when heating, or too cold when cooling. Easy switch from Normally Closed to Normally Open setup.
In my scenario I set it as normally closed. Installed it in the path of the vent that is supplying the "zoned" room. Then wired an extra thermostat in that room to control the vent. The vent is now blowing air only when that extra thermostat says to the damper, thus the temperature in the room stays normal.
I now plan on buying more of these dampers in order to make may house fully Zone Controlled, but that would mean purchasing more thermostats for every zone and controller - for example HZ311.
Ovcegon
Schaumburg, IL
9 years ago
Verified Buyer
Was this review helpful to you?
economical and easy to use
great package for easy installation and setup
fitter
madison, wi
9 years ago
Verified Buyer
Was this review helpful to you?
I believe I'll buy this product again
Added this damper to a 8" register duct that I only wanted to operate when in fan only or AC is operating. So I connected it to the "W" furnace circuit. Works perfectly.
rschell
Boise, Id
10 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Works as expected
Typical of a Honeywell product; works like it should, has options and well made.
Mike
Bohemia
11 years ago
Verified Buyer
Was this review helpful to you?
