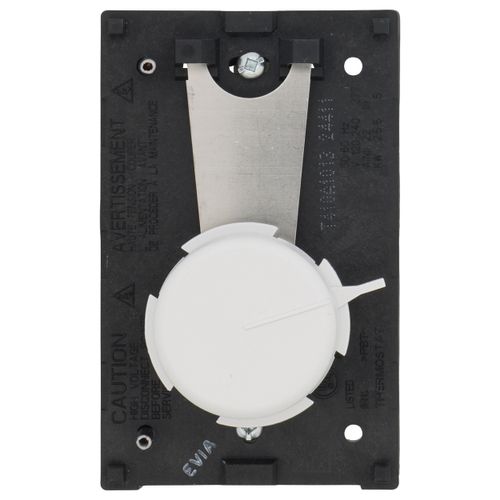

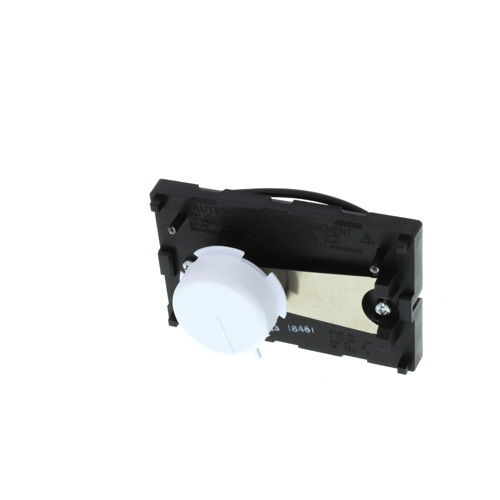

T410 White, Electric Heat Thermostat, T410A1013
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (2)
Product Highlights
Description
- Economical.
- Replace virtually any two-wire line voltage wall-mounted electric heating thermostat.

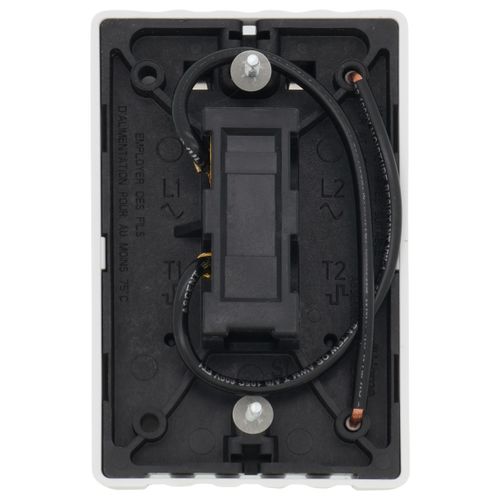

- Easy to install; 6" (150 mm) color-coded leads.
- Include long-lasting Micro Switch mechanism.
- Rugged, plastic mounting base and one-piece cover with vents.
- Ideally suited to new construction applications.
Specifications
- Amps (120V): 22
- Amps (208V): 22
- Amps (240V): 22
- Amps (277V): 19
Specs
| Application: | Electric Heat (Line Voltage) Heat Only |
|---|---|
| Stages: | 1 Heat |
| Programmability: | Non-Programmable |
| User Interface: | Mechanical |
| Mount: | Vertical |
| Power Method: | Hardwired |
| Voltage: | 277v 240v 208V 120v Line voltage |
| Temperature Range (F): | 40°F - 80°F |
| Amperage: | 22 19 |
| Switch: | SPST |
| Wiring: | 6" Copper Leadwires |
| Frequency: | 60 Hz |
| Color: | Premier White |
| Height (Inches): | 4.5" |
| Width: | 2-3/4" |
| Depth (Inches): | 2-1/4" |
Questions?
Compare Similar Products
Heat Only
240v
208V
120v
Line voltage
You May Also Need
Product Reviews
Most Liked Positive Review
Great product, great PEX price
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Simple product, great customer service, questionable safety.
Would buy again
I would recommend this product
Perfect for this install
They work when they work...
I would recommend this as a simple to operate theremostat
Works but not very accurate
Thermostat works well. Did the job
Perfect replacement for original 1970's thermostat
I would definitely buy these again.
it works
Product Q&A
7 QuestionsQ: can this thermostat be used for radiant heat in the ceiling ?
Asked by mildred 8 years ago
Add your answer
Verified Reply- The item is specifically for line voltage so as long as your system runs on line voltage then you could use that thermostat.
Q: Will these work with ceiling heat, probably from 1970?
Asked by Johb 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it's possible. Confirm that the electrical specs of your system are within the maximum allowed for the thermostat.
Q: will this thermostat work in a radiant heat ceiling? I bought it to replace an old model and it is not working.
Asked by CJ 10 years ago
Add your answer
The thermostat has a single pole switch, when used in a 220v application, one leg of the heater has to be wired direct. This may not work for all applications.
Q: Does this thermostat T410 work with Taco Zone Valves (571)?
Asked by tom 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffWe would recommend using a low-voltage thermostat with low-voltage zone valves like those in Taco's 571 Series. This is a line-voltage or high-voltage thermostat.
Q: Does it have a thermometer that shows actual temperature in home
Asked by Anonymous 14 years ago
Add your answer
No, this unit does not have a built-in thermometer that shows the room temperature Thanks Jim --
No, it doesn't show the temperature in the room. .
Nope, just setting Sent from Samsung Conquer™ 4G
No. Just an arrow around the dial pointing the direction for warmer Sent from my iPhone
No, it is not digital, it does not "show" any temperature. You can tell the room temperature by turning the dial until you hear the click, whatever temp the dial indicator is at when it clicks is your current room temp.
No, it does not include a thermometer to show the current temp. I turn the dial slowly until I hear it click to roughly find the current temp. I am using several of these and they work great. My only disappointment was that they require a single gang cutout in the wall while most thermostats are wall mount. But they are rock solid and work well.
No, it does not. It is an old style thermostat. It has a knob with a tic mark that you turn to "set" the desired temperature. I have no idea how accurate the thermostat is, I usually set it to what I am aiming for and then turn it till it just kicks off if it gets too warm or kick it on if not warm enough. The gauge seems to be a rough approximation.
No Sent from my iPad
No, it does not.
Q: How many degrees temperature between calling for electricity and turning it off?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis unit has a differential temperature of 3°F.
Q: I need a cottage thermostat that I can turn completely off so that the cottage can freeze when we leave it for weeks at a time in the winter (we have no water pipes to worry about). Our current model turns on automatically at a minimum temperature to prevent freezing and we're wasting money heating an empty building. Does this model turn off completely?
Asked by Cam 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat does not have an "off" setting.
