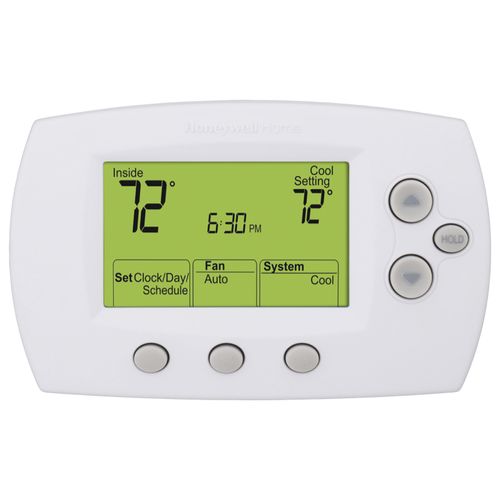

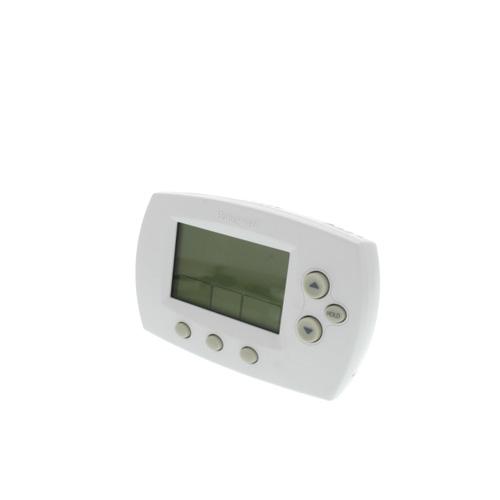

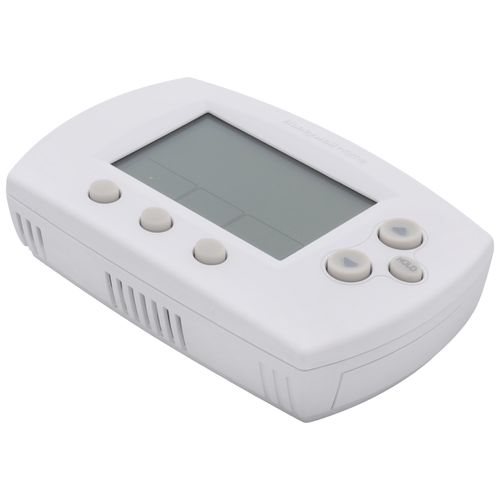

FocusPro Programmable, 2H/2C, Large Display Thermostat, TH6220D1028
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (5)
Product Highlights
Description
5-1-1 Programmable Thermostat. Provides electronic control of 24 Vac conventional and heat pump systems or 750 mV heating systems.
Features:
- Weekday/Weekend programming - use as a 5-1-1 (Weekdays, Saturday, Sunday) or 5-2 (Weekdays, Weekend) programmable thermostat, whichever best fits your lifestyle.
- Large, clear, backlit display - easy to read in various lighting conditions.
- Display size options - available in large screen or standard.
- Precise comfort control (+/- 1ª F) - maintains consistent comfort to the highest level of accuracy.
- Simplified programming and operation.
- Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat.
- Built in instructions - simple, pull out instruction manual.
- Energy savings - program to save up to 33%* on annual heating and cooling costs.
- Adaptive Intelligent Recovery - ensures programmed temperature is reached by programmed time.
- Temperature range stops - prevents user from setting the temperature too high or too low.
- 5-year limited warranty.
Specs
| Amperage: | 1 |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Stages: | 2 Heat/2 Cool 2 Heat/1 Cool (Heat Pump) |
| Programmability: | Programmable 5-1-1 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display Fan Control Auto Changeover |
| Power Method: | Hardwired Battery |
| Changeover: | Manual Auto |
| Temperature Range (F): | 40°F - 99°F |
| Operating Humidity: | 5 to 90% RH, non-condensing |
| Voltage: | Low voltage 24V 750mV |
| Wiring: | G W2(AUX) L Y Y2(E) C Rc W(O/B) R |
| Frequency: | 50 Hz 60 Hz |
| Color: | Premier White |
| Height: | 3-9/16" |
| Width (Inches): | 5-13/16" |
| Depth (Inches): | 1-1/2" |
| Humidity Control: | No |
| Wireless: | No |
Questions?
Compare Similar Products
Heat Pump
2 Heat/1 Cool (Heat Pump)
5-1-1 Day
You May Also Need
Product Reviews
Supply House is Great but not Honeywell (now Resideo)
I would buy this product again
Great for heat pump operation.
Great product at a nice price.
Stat
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
The Heat Is On
Great customer service support
Simple and reliable
I would order from this company again.
i would buy this again
Product Q&A
9 QuestionsQ: Does it have humidity control? If not, what model does?
Asked by Tom 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo it does not control humidity, any of the Honeywell "IAQ" stats will control a humidifier or dehumidifier.
Q: does stat have 2 "r" terminals ?
Asked by tom 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes an "R" and "Rc"
Q: will the thermostat automatically switch from a heat to cool with LP heat
Asked by George 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, this thermostat has a feature called auto-changover where heating and cooling modes can be used in the course of the same day as long as the two temperatures are set at least 3 degrees apart.
Q: does it have daylight savings time setting
Asked by charlie 12 years ago
Add your answer
I don't believe so. Adjusting the time twice a year is not a big deal. The time adjustment is accessed from the main screen. Sent from my iPad
No. Even the more expensive product (wireless FocusPro which also I use) don’t have automatic day light adjustments. We have to manually set the time back or forth. Sent from Windows Mail
Q: I have a non-programmable TH522D1003, will this unit snap right in and work properly without rewiring? Thanks!
Asked by Jim 12 years ago
Add your answer
I had a professional install after my dad failed to figure it out, so I don't think so. Sent from my iPhone
Unfortunately, there is no way to answer without knowing what kind of HVAC system you have and what your current wiring is. You can look at some of the wiring diagrams and see if you can match the wires to the polls. I attached the installation guide. But if you are at all unsure about what you are doing, it would be best to leave it to an experienced HVAC technician. You can easily cause damage to the system if you get the wiring incorrect. BTW, before you even think of installing it yourself, make sure that you kill the power to the unit completely. There is a control board which hopefully has a fuse on it for protection, but it can be a real pain to change that fuse if you short something out. Rick Cohan
Q: Will this thermostat be compatible with your PC8900?
Asked by Marge 14 years ago
Add your answer
I didn't replace a PC8900 with this, so I can't say. But what I can say is that I had a little difficulty figuring out the new wiring, and I called Honeywell up and they walked me through it on the phone. Worked like a dream within 5 minutes of calling them!
Marge, both the PC8900 and the FocusPro are thermostats that are designed to control the comfort system directly (i.e. air conditioner, heat pump, etc.). They don't work together unless you have a zoned system (multiple thermostat-controlled). In that case, the zone controller will use the signals from the thermostats to control their respective location's comfort.
Q: CAN I USE A TH6220D1028 THERMOSTAT TO REPLACE A T874F1122
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffTH5220D1029 is the recommended functional replacement for T874F1122. You can use TH6220D1028, but it is a programmable thermostat.
Q: I am expericing low battery on my Honeywell Thermostat 69-1778ES- M. S. 06-06. What battery do I need and how do I put it in? How much time do I have before it stops working?
Asked by [email protected] 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to pages 10 and 15 in the manual below. If you are only using the batteries for backup power, the thermostat will not stop working. http://s3.pexsupply.com/manuals/1277918330238/33872_PROD_FILE.pdf
Q: have th5220d1029 is th6220d1028 compatible snap out old and snap in new ? is only difference is programmable ?
Asked by rpf 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you can use this thermostat to replace the TH5220D1029 model.
