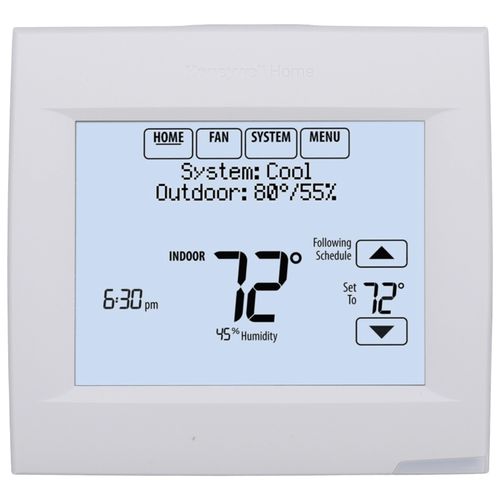

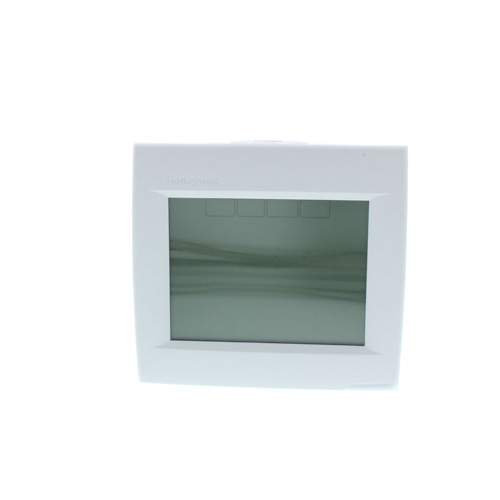

VisionPRO 8000 w/ RedLINK & IAQ Contacts, Programmable, 3H/2C, Touchscreen Thermostat, TH8321R1001
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$295.60 each
In Stock
Get 147 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (7)
This item replaces: TH9421C1004, TB7220U1012, PSPHA732, TH8321U1097, TH8321U1006, YTH9421C1002
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
7 Day, Programmable
24V, 750mV
3 Heat/2 Cool Heat Pump
Horizontal
Premier White
5 Year Warranty
Description
–
The TH8321R1001 is a suggested replacement for YTH9421C1002.
This product does not include the EIM module (THM5421R1021) which was included with YTH9421C1002.
Wireless Requirements:
This product does not include the EIM module (THM5421R1021) which was included with YTH9421C1002.
Wireless Requirements:
- To enable the wireless capability, an (EIM) Equipment Interface Module (THM5421R1021) is required and sold separately.
- To remotely access the unit through WIFI, a RedLINK Internet Gateway (THM6000R1002) is required and sold separately.
- All-new VisionPRO 8000 with RedLINK technology.
- Residential or commercial use.
- 7-day programmable.
- Up to 3H/2C heat pump or up to 2H/2C conventional
- Includes a set of Universal IAQ contacts to control humidification, dehumidification or ventilation.
- Works standalone or with the THM5421R1021 Equipment Interface Module (EIM).
Now works in virtually any residential or light commercial setting - Three flexible ways to install, which helps you solve a variety of wiring issues
- Wired directly to the equipment
- 2-wire or wireless with an Equipment Interface Module (EIM)
- 2-wire or wireless with TrueZONE- Plain language, on-screen setup helps reduce install errors and eliminates the need for a manual
- Allows installers to copy the Installer Setup from one thermostat to another with a microSD card
- On-screen dealer information displays with customizable alerts, encouraging repeat business
- RedLINK Internet Gateway with Total Connect Comfort Services Allow users to remotely monitor and control their heating and cooling systems anytime, anywhere. Free apps are available for both Apple and Android devices.
- Three flexible ways to install, which helps you solve a variety of wiring issues
Specs
–
| Features: | RedLINK Enabled Humidification & Dehumidifcation Control |
|---|---|
| Application: | Heat Pump Multi-Stage (Heat/Cool) Internet control of RedLINK thermostats |
| Changeover: | Auto Manual |
| Color: | Premier White |
| Mount: | Horizontal |
| Stages: | 3 Heat/2 Cool Heat Pump |
| User Interface: | Touchscreen |
| Options: | Large Display Wireless Auto Changeover Keypad Lockout |
| Programmability: | 7 Day Programmable |
| Warranty: | 5 Year |
| Wireless: | Yes |
| Humidity Control: | Yes |
| Voltage: | 24V 750mV |
| Wi-Fi: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Changeover
Color
Mount
Stages
CURRENT ITEM
Heat Pump
Multi-Stage (Heat/Cool)
Internet control of RedLINK thermostats
Multi-Stage (Heat/Cool)
Internet control of RedLINK thermostats
Auto
Manual
Manual
Premier White
Horizontal
3 Heat/2 Cool Heat Pump
You May Also Need
Product Reviews
4.64 out of 22 reviews
100% would recommend this product
5 star
77%
4 star
14%
3 star
5%
2 star
5%
1 star
0%
Most Liked Positive Review
Small Footprint; Easy To Use/Install
Wish they named it something other than 8000....confuses it with the old version. THIS one has a smaller footprint on the wall; is easy to use, and programmable by anyone savvy enough with electronics. The unit, while PRO install, can indeed be done by a skilled DIY-er, as long as you have the wires you need already on your old t'stat, or have an 'extra' wire that's unused in your wire bundle at the t'stat and furnace block for the required C wire...Honeywell has a how-to video on this btw. We have a forced-air furnace, and outdoor a/c (central air) unit, with the one transformer (a std hookup), and it's an easy program even though it does have a complex menu. We also purchased the RedLink gateway and outdoor sensor (MUSTs) in my opinion if you like 'toys' and want to utilize some of this t'stats features. One complaint so far (only after 2 days of course, being Honeywell JUST released this version....) is that the wiring into the t'stat is terribly small. It's doable, and I understand they had to save on space, but was sized to a fit a 9-year-old's fingers. Great unit so far.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Don't forget the gateway!!
The thermostat works perfect, but was given little information on the front end that an extra 100 dollar gateway is needed in order to control the thermostat wireless. Why is that technology not included with the thermostat it self. So once I got the gateway everything has worked just as expected, with very easy set up and friendly controls.
Pretty good so far, just wish it was more self contained!
Showing 1-10 of 22 reviews
Thermostat
Excellent buying experience. Very simple and shipping was fast. Highly recommend
Bob
NE
2 months ago
Verified Buyer
Was this review helpful to you?
Remove the AA batteries
I installed per the instructions and the heat would not come on. My HVAC guy told me to remove the batteries and the thermostat has worked perfectly controlling temperature and humidity since.
Loopy
Oklahoma
2 years ago
Verified Buyer
Was this review helpful to you?
I would by again
Supply house has the best process for ordering and the Vision Pro 8000 is our go to Programmable Thermostat
Michelle
Raynham, MA
3 years ago
Verified Buyer
Was this review helpful to you?
Great product
Very easy to program and the terminals are big.
Sam
IL
3 years ago
Verified Buyer
Was this review helpful to you?
I definitely would buy this item again.
I already had one thermostat installed on one of the zones in my house, so mirroring the wiring and setup was a no brainer.
ZT
Atlanta, GA
3 years ago
Verified Buyer
Was this review helpful to you?
Last experience was so good, I bought the same product again
I had a second one of these items in the house fail, a unit that was close to 10+ years older and the Temp Sensor locked up on it. So, given that my first experience with SupplyHouse was so good when I decided to upgrade 20 year old unit in the house, I came to them again this time.
Rob
Williamsburg
3 years ago
Verified Buyer
Was this review helpful to you?
Would purchase again . . .
Thermostat helped to solve my zone issues.
HDM
Tavares, FL
4 years ago
Verified Buyer
Was this review helpful to you?
Easy to install and program if you read and follow Instructi
Great replacement for discontinued model. Need to replace the EIM at same time. I called Honeywell and they said not a home owner replaceable part. It took me 1.5 hours on high side mostly because I went very slow and steady. Only needed small screwdriver and manual from Thermostat and EIM. New thermostat only needed 2 wires (not 3 in old application) power and common. No need for data wire since the Stat talks to EIM via Redlink wireless. Very pleased; controlling multi stage heat pump, AC with gas Aux furnace. Supply house staff excellent friendly and helpful. My estimated savings based on a quote from a service company $350
Delaware 56
Delaware.
5 years ago
Verified Buyer
Was this review helpful to you?
After a lot of problems your thermostat works fine.
I have tried another Honeywell thermostat and it doesn't work. The one you sent me works very well. The only small thing is that it will not come off of daylight savings time. Not a big problem.
Jerry
Woodbury MN
5 years ago
Was this review helpful to you?
Good product, I would buy it again.
The product arrived on time as promised and installed easily and is now working as it should. You are running a good operation, keep it up!
Al
Sedona, AZ
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can a C7189U1005 indoor remote sensor be used at the same time with a C7089U1006 outdoor remote sensor in this thermostat?
Asked by JeffP 9 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes that thermostat will work with an indoor and outdoor sensor.
Was this review helpful to you?
Q: how do I clear the existing programming and reprogram with the Honeywell vision Pro Series with red link?
Asked by george 12 years ago
Add your answer
Verified Reply- Supplyhouse StaffPage 9. http://s3.supplyhouse.com/manuals/1249544874360/Honeywell_TH8110U1003_Operating_Manual.pdf
Was this review helpful to you?
