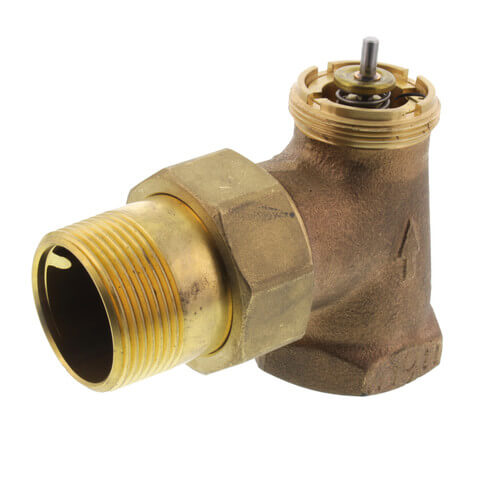

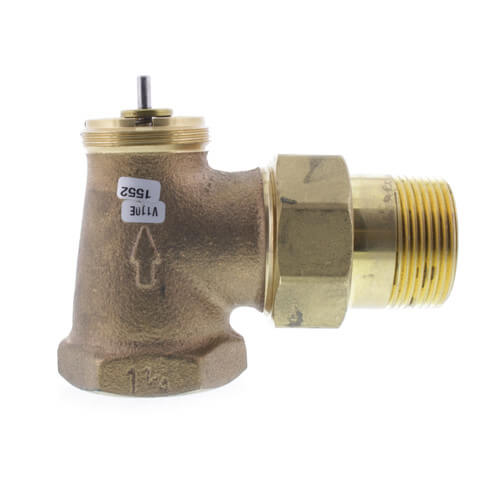

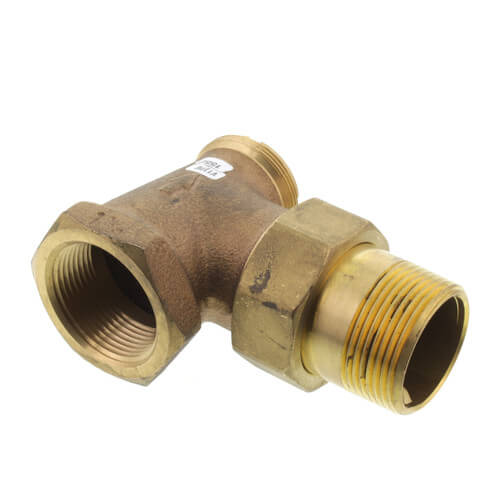

1-1/4" Angle Valve for High Capacity Radiator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$177.79 each
In Stock
Get 5 Wed, Jun 24
Order by today, receive Wednesday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/4"
150 (Hot Water), 15 (Steam) MAX PSI
Angle
17 psi
FNPT x MNPT Union Connection
Normally Open
Description
–
Product Overview:
- High Capacity Thermostatic Radiator Valves provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Product Features:- continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
- Designed with the higher capacity normally required by U.S.A. heating systems.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- Require no electrical connections.
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Valves may also be used with MV110 Electric Zone Valve Actuator.
- Meet ASHRAE Standard 102-1989.
Product Specifications:- Application Type : Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators
- Pipe Size (inch): 1 1/4 in.
- Pipe Size (DN): DN32
- Body Pattern: Angle
- Capacity: high
- Capacity (Cv): 8 Cv
- Capacity (Btu/hr-steam): 193,000 Btu/hr
- Connection Type: Threaded
- Pressure Ratings (Hot Water (psi): 150 psi maximum
- Pressure Ratings (Hot Water (kPa): 1034 kPa maximum
- Pressure Ratings (Steam (psi): 15 psi maximum
- Pressure Ratings (Steam (kPa): 103 kPa
- Differential Pressure Ratings (psi): 17 psi maximum
- Temperature Ratings (F): 248 F Maximum
- Temperature Ratings (C): 120 C Maximum
- Materials (Body): Bronze
- Used With: T104
Specs
–
| Application: | Hot Water 2 Pipe Steam |
|---|---|
| Size: | 1-1/4" |
| Max Pressure (PSI): | 150 (Hot Water) 15 (Steam) |
| Body Pattern: | Angle |
| Differential: | 17 psi |
| Connection Type: | FNPT x MNPT Union |
| Position: | Normally Open |
| Temperature Range (F): | 248°F Max |
| Flow Capacity (Cv): | 8 |
| Capacity: | High |
| BTU: | 193000 Btu/hr (steam) |
| Capacity (BTU): | 193000 |
| Material: | Bronze |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Type
Flow Capacity (Cv)
CURRENT ITEM
1-1/4"
FNPT x MNPT Union
8
You May Also Need
1 Replacement Part
Replacement Cartridge for V110
SKU: CA110C107
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.67 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
great product
rebuilding 70 year old radiators and the fit uo great.
dawg
TN
3 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Works as Stated
Nothing more
Jeff
Fredonia, NY
14 years ago
Verified Buyer
Was this review helpful to you?
Thermo valves save money
The Honeywell radiator valves I bought are already efficiently regulating heat on the top floor of our house. They were easy to fit and look stylish. No more overheating and unnecessary fuel consumption!
Michael
Chicago
16 years ago
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: If I have a one pipe steam system, what thermostatic valve could I use? Wouldn't this one work??
Asked by Rich 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes it will.
Was this review helpful to you?
Q: Can i use a thermostatic valve on a one pipe system?
Asked by Julio 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can, but this particular valve is designed for two-pipe systems.
Was this review helpful to you?
Q: Do i need a thermostat with a thermostatic valve
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou would need a thermostatic actuator and an air vent to attach to the valve body. You would need a thermostat connected to the boiler unless the boiler is set up for continuous flow.
