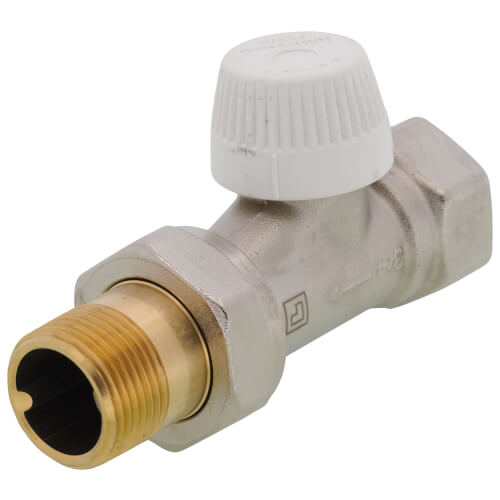

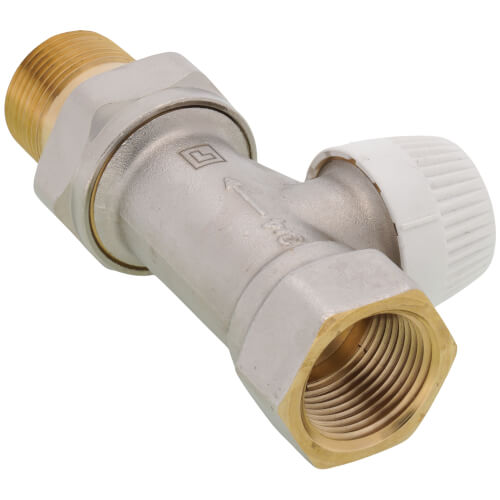

3/4" Horizontal Valve For Standard Capacity Radiator

Product Overview:
One-Pipe Steam Thermostatic Radiator Valves - Allow automatic temperature control in one-pipe steam or hot water systems for free standing radiators, convectors and other heating units with standard capacity requirements. Provide comfort and energy savings.

Product Features:

• Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
• Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems.
• Nickel plated brass casted body.
• Replaceable cartridge for easy service with service tool.
• Controls include valve body, steam air vent.
• Used with T100 set point and capillary actuators.
• No electrical connection required for non-electric actuators.
• Normally open without control mounted.

Product Specifications:

• Description: 3/4" Horizontal Straight Valve For Standard Capacity Radiator
• Application Type : Especially suited for baseboards and straight runs where manual valves were not originally installed.
• Pipe Size (inch): 3/4 in.
• Pipe Size (DN): DN20
• Body Pattern: Straight
• Capacity: standard
• Capacity (Cv): 2.7 Cv
• Capacity (Btu/hr-steam): 63,800 Btu/hr
• Connection Type: Threaded
• Pressure Ratings (Hot Water (psi)): 150 psi maximum
• Pressure Ratings (Hot Water (kPa)): 1034 kPa maximum
• Pressure Ratings (Steam (psi)): 15 psi maximum
• Pressure Ratings (Steam (kPa)): 103 kPa
• Differential Pressure Ratings (psi): 17 psi maximum
• Differential Pressure Ratings (psi): With T100 or T200: 15 psi
• Differential Pressure Ratings (psi): With MV100: 36 psi
• Differential Pressure Ratings (psi): For low noise: 3 psi
• Temperature Ratings (F): 248 F Maximum
• Temperature Ratings (C): 120 C Maximum
• Dimensions (in.): 4 1/16 in x 4 3/16 in.
• Materials (Body): Nickel Plated Bronze
• Cartridge Change Tool: Yes - Use VA8200A001
• Used With: T100
• Inlet Connection Size (in.): 3/4 in.
• Inlet Connection Type: NPT
• Outlet Connection Type: Threaded
